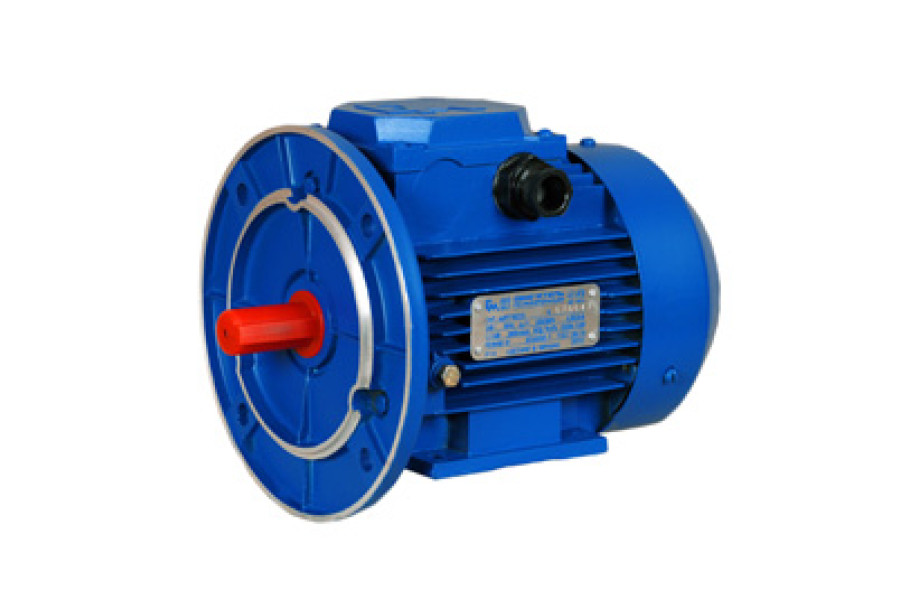

Electric motor AIRMUT 63 A2

Name: Electric motor AIRMUT 63 A2
Brand: Электродвигатели

Single-phase asynchronous electric motor

Brand: Электродвигатели

All about product

Specification

Reviews 0

Questions0

Popular

On order

Product Code: ID31156

negotiable

Asynchronous motor AIRMUT 63 A2: Power: 0.37 kW; nominal rated revolution: 3000/min; size (height of the axis of rotation): 63 mm; shaft diameter: 14 mm; frequency AC 50 Hz voltage 220 V.

Voltage, V:220

Power kW:0.37

Vol./Min:3000

Delivery

Nova Poshta

Delivery (saving 10% of the delivery cost)

Self-delivery

Electric motor AIRMUT 63 A2

Specifications

Common

Model

AIRMUT 63 A2

Motor type

asynchronous

Kind

general purpose industrial motor

Motor series

AIRMUT

Shaft diameter, mm

Voltage, V

220

Frequency of the current, Hz

Power kW

0.37

Vol./Min

3000

Climatic performance

UZ, U2, UHL4, 04

Motor insulation class

Class of protection, IP

Weight, kg

5,6

Consumed nominal current, In (A)

3,0

Dimension (height of rotation axis), mm

Number of poles

Phase

1-phase

The ratio of max. torque to rated power, Mmax/Mn

2,0

The ratio of starting current to the nominal, Istart/In

5,5

The ratio of starting torque to rated power, Mstart/Mn

1,6
