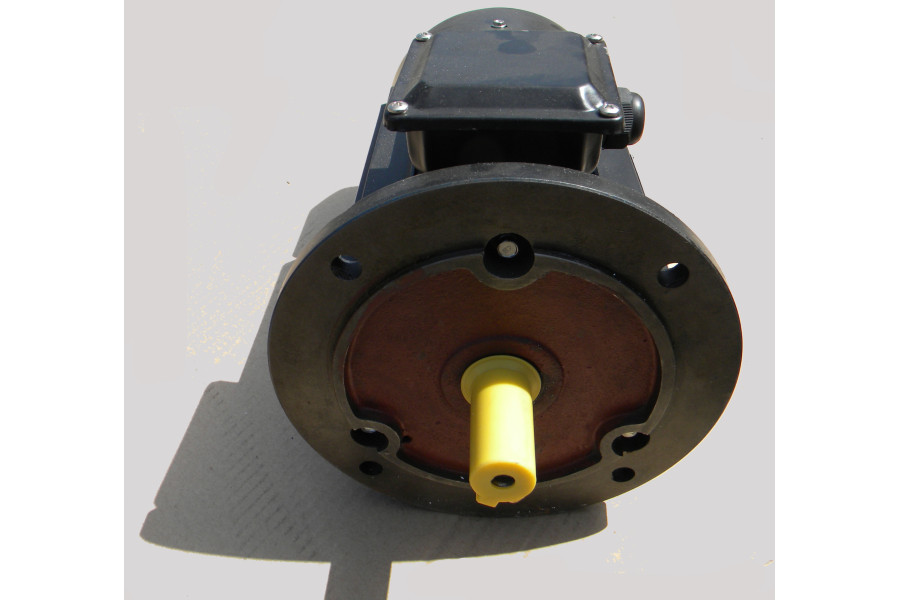

Electric motor AIR 112 MA8

Three-phase asynchronous electric motor

Brand: Электродвигатели
0
All about product
Specification
Reviews 0
Questions0
Popular
Electric motor AIR 112 MA8
In Stock
Product Code: ID2480
8 699₴
Found cheaper?

Electric motor AIR 112 MA8 - general-purpose three-phase asynchronous motor with squirrel cage rotor designed for mains alternating current frequency operation 50 Hz voltage 220/380 V.

Y motor AIR 112 MA8 nominal rated revolution 750 rpm

Dimension (height of shaft rotational axis): 112 mm; shaft diameter: 32 mm; Power: 2.2 kW; climatic category: UZ; IP: 54

The engine body of the engine made of cast iron.Casing of IPA and 80 dimensions of cast silumin alloy.



Voltage, V:220/380
Power kW:2.2
Vol./Min:750
n, vol./Min:700
Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
Electric motor AIR 112 MA8
8 699₴
Specifications
Common
Model
AIR 112 MA8
Motor type
asynchronous
Kind
general purpose industrial motor
Motor series
AIR
Shaft diameter, mm
32
Voltage, V
220/380
Frequency of the current, Hz
50
Power kW
2.2
Vol./Min
750
n, vol./Min
700
Climatic performance
UZ
Class of protection, IP
54
Efficiency, %
75,6
Power factor, cosφ
0,71
Weight, kg
46
Consumed nominal current, In (A)
6,4
Dimension (height of rotation axis), mm
112
Phase
3-phase
The ratio of max. torque to rated power, Mmax/Mn
2,1
The ratio of starting current to the nominal, Istart/In
4,9
The ratio of starting torque to rated power, Mstart/Mn
2
