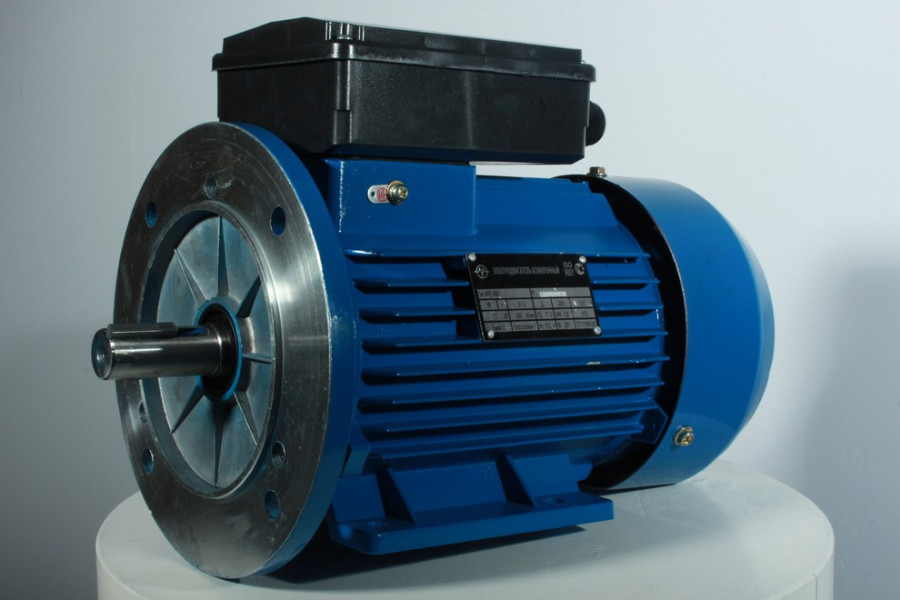

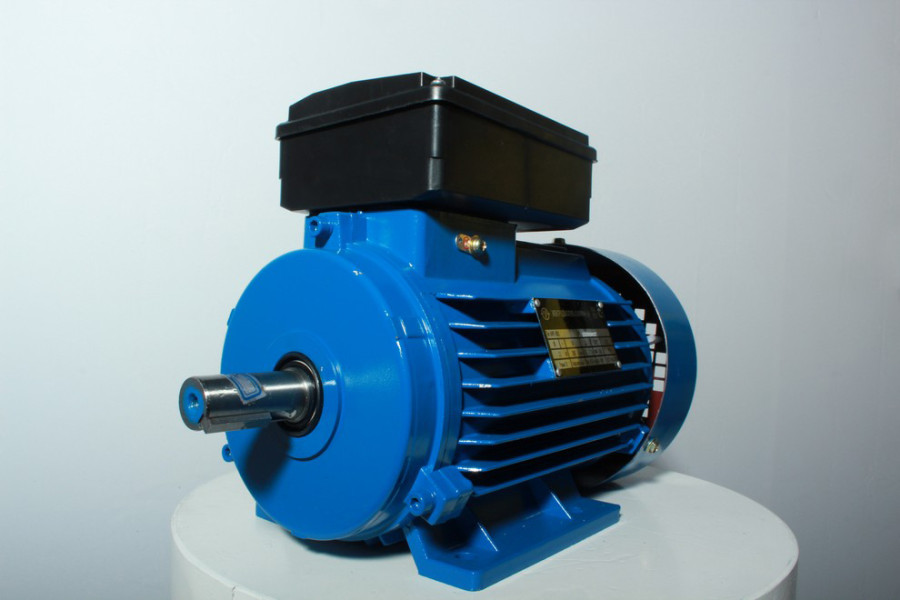

Single-phase asynchronous electric motor Electric motor AIRE 90 LB2

Name: Electric motor AIRE 90 LB2
Brand: Электродвигатели

Brand: Электродвигатели

All about product

Specification

Reviews 0

Popular

Pre-order

Product Code: ID15489

negotiable

Asynchronous motor AIRE 90 LB2: Power: 3.0 kW; nominal rated revolution: 3000/min; size (height of the axis of rotation): 90 mm; shaft diameter: 24 mm; frequency AC 50 Hz voltage 220 V.

Voltage, V:220

Power kW:3.0

Vol./Min:3000

n, vol./Min:2800

Delivery

Nova Poshta

Delivery (saving 10% of the delivery cost)

SAT

Self-delivery

Оплата

Payment Methods

We operate via bank transfer, ensuring full transparency and official documentation for every transaction.

How to Pay

Immediately after placing an order, a KVZ manager will send you a proforma invoice.

For legal entities and Individual Entrepreneurs: from your company's current account.

For individuals: via any banking application using bank details (IBAN).

Individual Terms

We value our partners and are ready to discuss personal payment options for cases requiring a special approach. Contact us to find the best solution.

Каталог

Electric motor AIRE 90 LB2

Specifications

Common

Model

AIRE 90 LB2

Motor type

asynchronous

Kind

general purpose industrial motor

Motor series

AIRE

Shaft diameter, mm

Voltage, V

220

Frequency of the current, Hz

Power kW

3.0

Vol./Min

3000

n, vol./Min

2800

Climatic performance

Motor insulation class

Class of protection, IP

Efficiency, %

78,0

Power factor, cosφ

0,98

Weight, kg

25,4

SKF

Consumed nominal current, In (A)

17,8

Dimension (height of rotation axis), mm

Number of poles

Phase

1-phase

The ratio of max. torque to rated power, Mmax/Mn

1,7

The ratio of starting current to the nominal, Istart/In

5,2

The ratio of starting torque to rated power, Mstart/Mn

0,30
