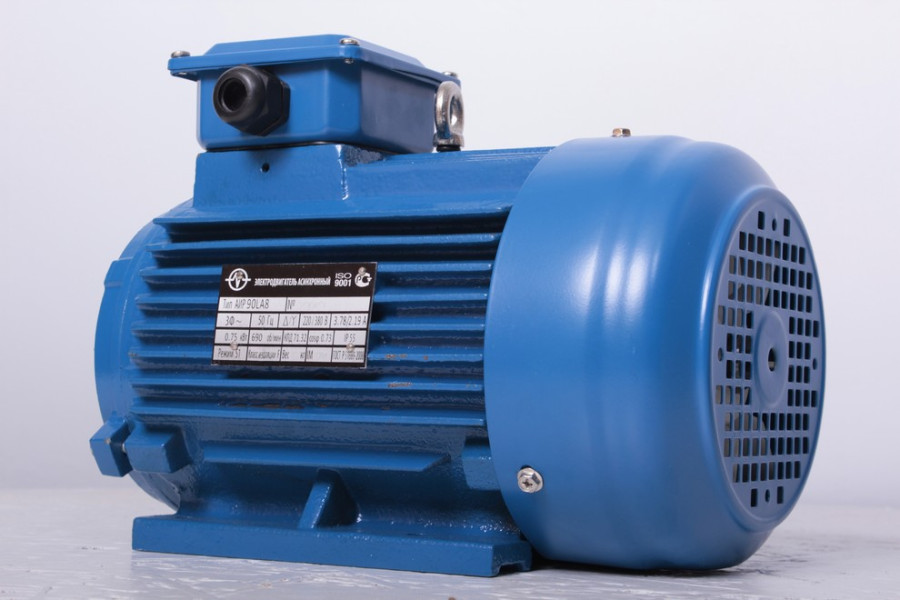

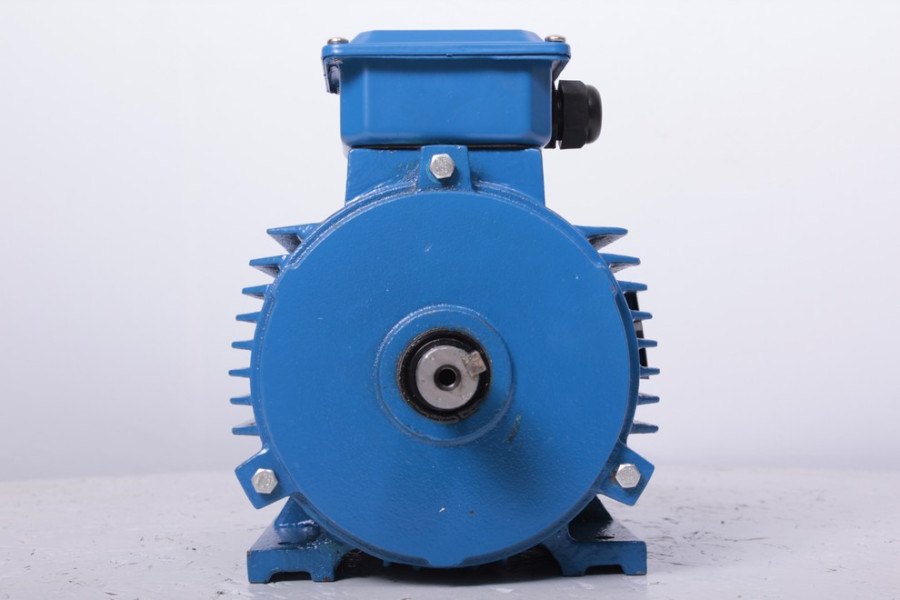

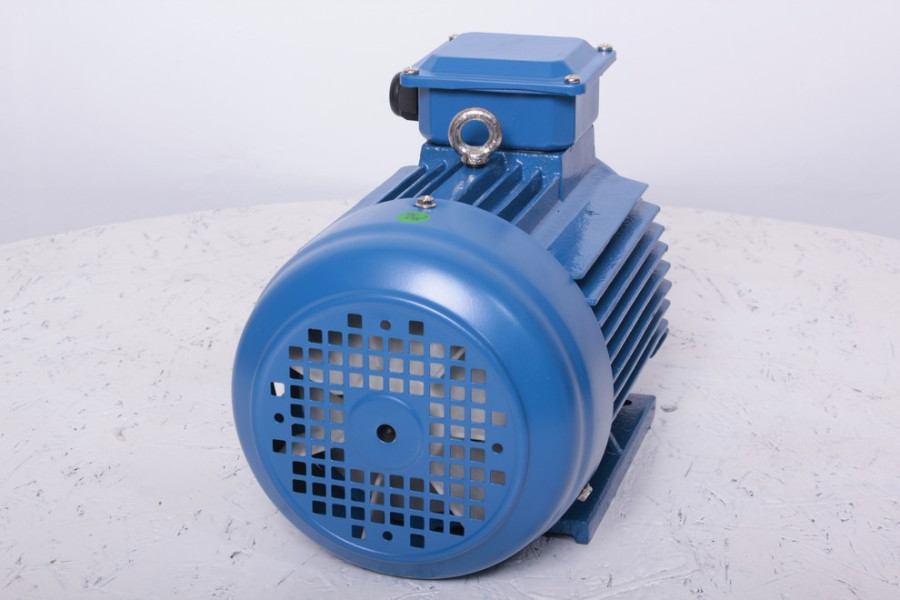

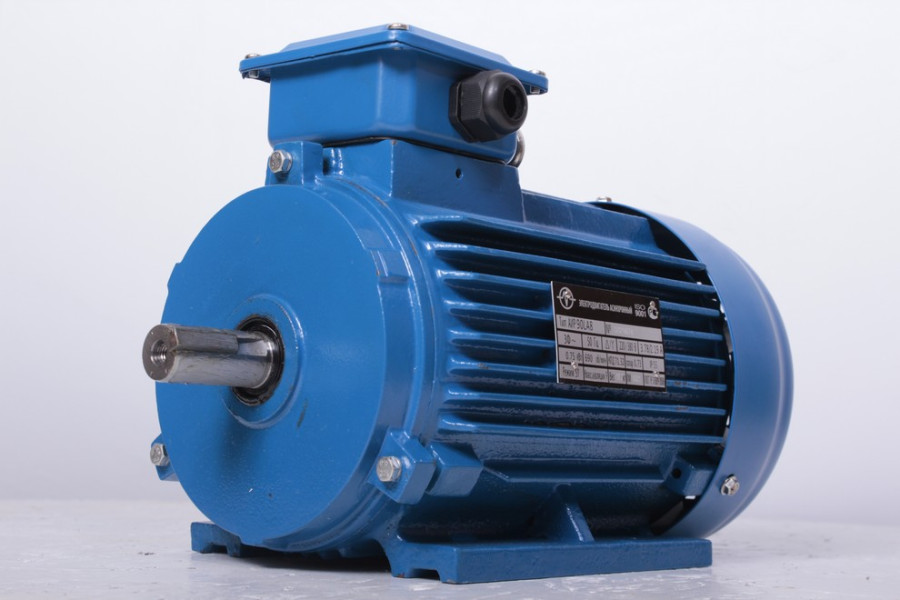

Electric motor AIR 90 LA8

Three-phase asynchronous electric motor

Brand: Электродвигатели
0
All about product
Specification
Reviews 0
Questions0
Popular
Electric motor AIR 90 LA8
Electric motor AIR 90 LA8
Electric motor AIR 90 LA8
Electric motor AIR 90 LA8
Electric motor AIR 90 LA8
Electric motor AIR 90 LA8
Electric motor AIR 90 LA8
Electric motor AIR 90 LA8
In Stock
Product Code: ID2476
5 041₴
Found cheaper?

Electric motor AIR 90 LA8 - general-purpose three-phase asynchronous motor with squirrel cage rotor designed for mains alternating current frequency operation 50 Hz voltage 220/380 V.

Y motor AIR 90 LA8 nominal rated revolution 750 rpm

Dimension (height of shaft rotational axis): 90 mm; shaft diameter: 24 mm; Power: 0.75 kW; climatic category: UZ; IP: 54

The engine body of the engine made of cast iron.Casing of IPA and 80 dimensions of cast silumin alloy.

Voltage, V:220/380
Power kW:0.75
Vol./Min:750
n, vol./Min:685
Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
Electric motor AIR 90 LA8
5 041₴
Specifications
Common
Model
AIR 90 LA8
Motor type
asynchronous
Kind
general purpose industrial motor
Motor series
AIR
Shaft diameter, mm
24
Voltage, V
220/380
Frequency of the current, Hz
50
Power kW
0.75
Vol./Min
750
n, vol./Min
685
Climatic performance
UZ
Class of protection, IP
54
Efficiency, %
72,4
Power factor, cosφ
0,7
Weight, kg
30
Consumed nominal current, In (A)
2,3
Dimension (height of rotation axis), mm
90
Phase
3-phase
The ratio of max. torque to rated power, Mmax/Mn
2
The ratio of starting current to the nominal, Istart/In
4
The ratio of starting torque to rated power, Mstart/Mn
1,9
