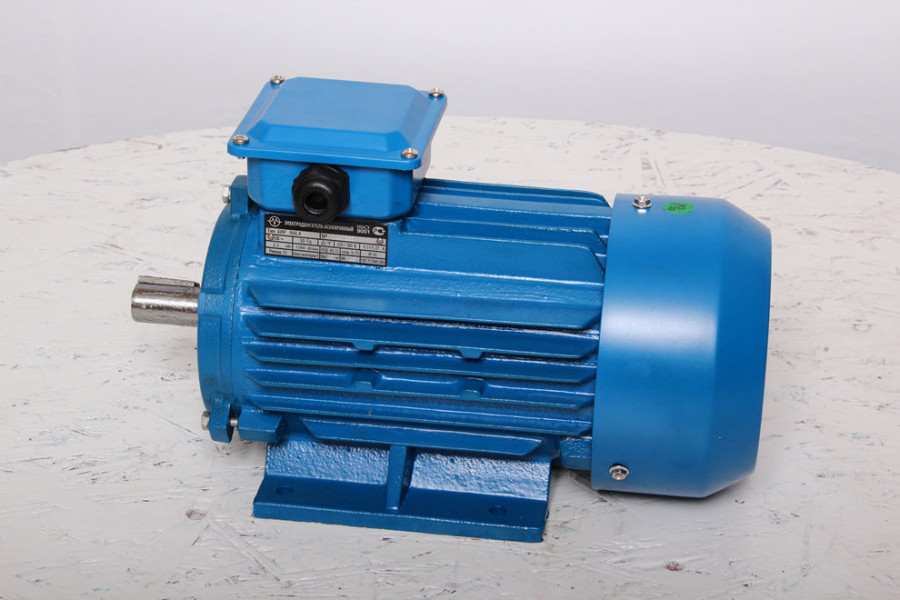

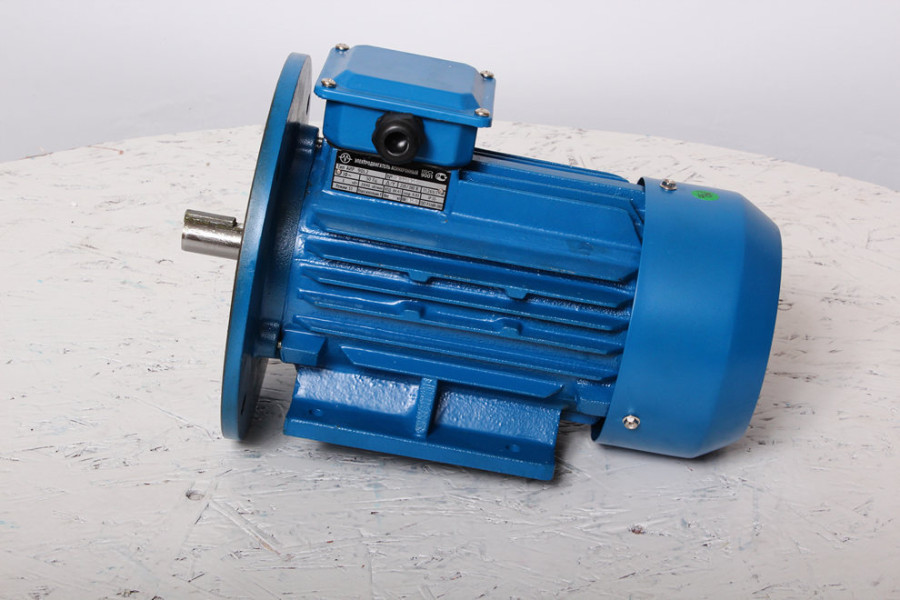

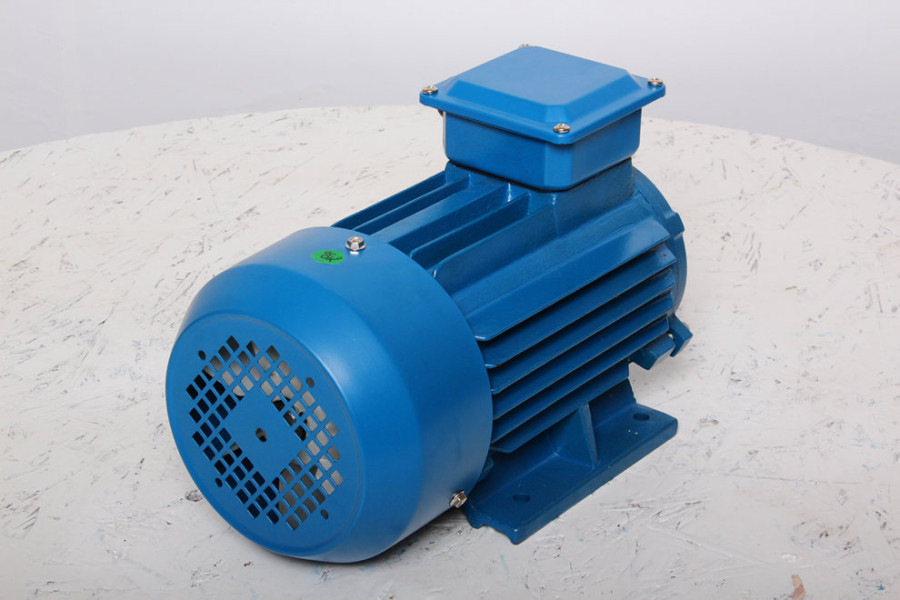

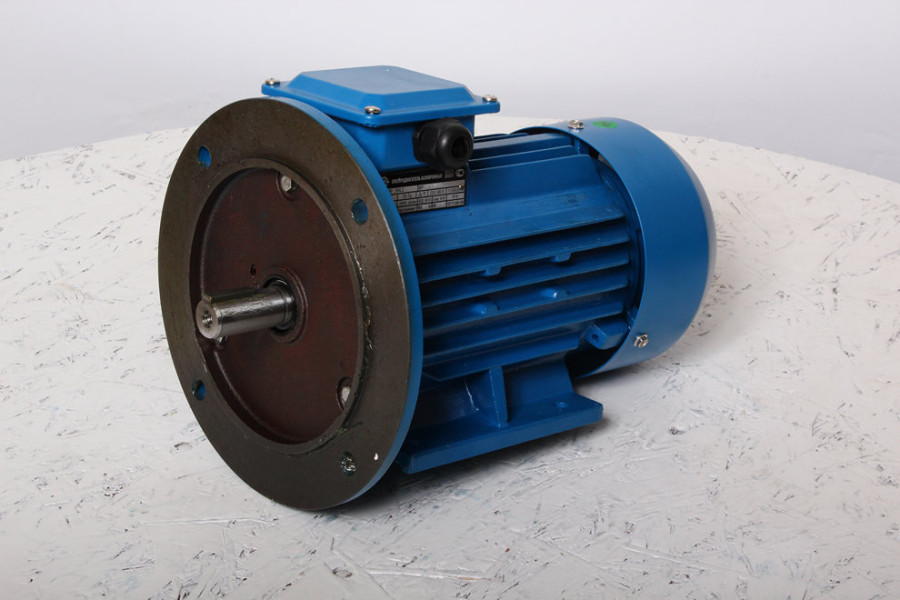

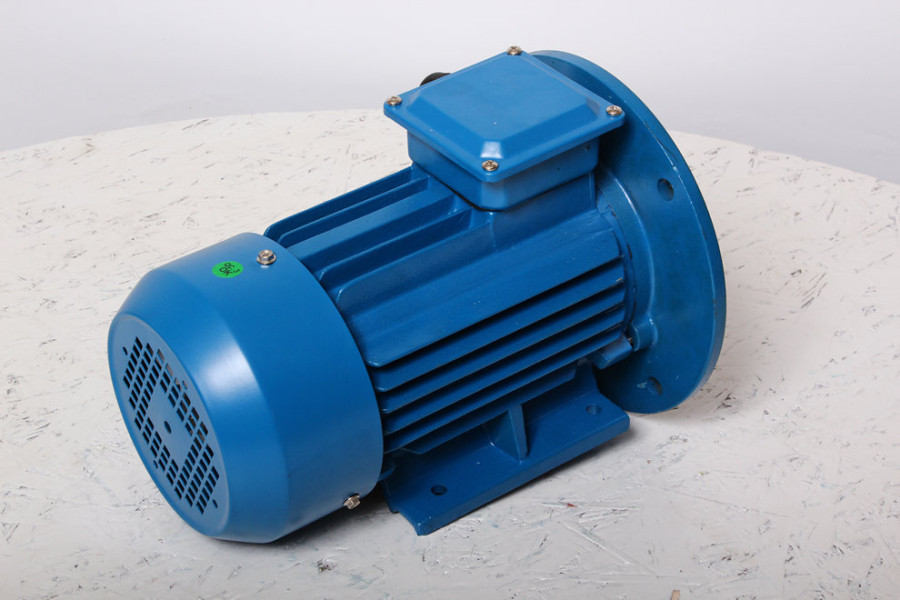

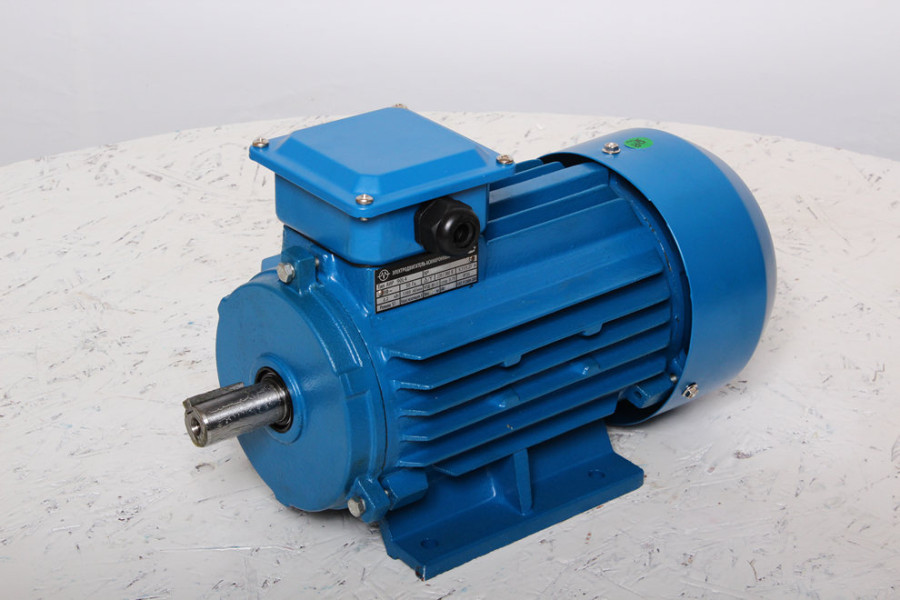

Electric motor AIR 90 L2

Three-phase asynchronous electric motor

Brand: Электродвигатели
0
All about product
Specification
Reviews 0
Questions0
In Stock
Product Code: ID2388
4 251₴
Found cheaper?

Electric motor AIR 90 L2 - general-purpose three-phase asynchronous motor with squirrel cage rotor designed for mains alternating current frequency operation 50 Hz voltage 220/380 V.

Y motor AIR 90 L2 nominal rated revolution 3000 rpm

Dimension (height of shaft rotational axis): 90 mm; shaft diameter: 24 mm; Power: 3.0 kW; climatic category: UZ; IP: 54

The engine body of the engine made of cast iron.Casing of IPA and 80 dimensions of cast silumin alloy.


Voltage, V:220/380
Power kW:3.0
Vol./Min:3000
n, vol./Min:2845
Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
Electric motor AIR 90 L2
4 251₴
Specifications
Common
Model
AIR 90 L2
Motor type
asynchronous
Kind
general purpose industrial motor
Motor series
AIR
Shaft diameter, mm
24
Voltage, V
220/380
Frequency of the current, Hz
50
Power kW
3.0
Vol./Min
3000
n, vol./Min
2845
Climatic performance
UZ
Class of protection, IP
54
Efficiency, %
83,4
Power factor, cosφ
0,86
Weight, kg
25,4
Consumed nominal current, In (A)
6,5
Dimension (height of rotation axis), mm
90
Phase
3-phase
The ratio of max. torque to rated power, Mmax/Mn
2,3
The ratio of starting current to the nominal, Istart/In
7,2
The ratio of starting torque to rated power, Mstart/Mn
2,2
