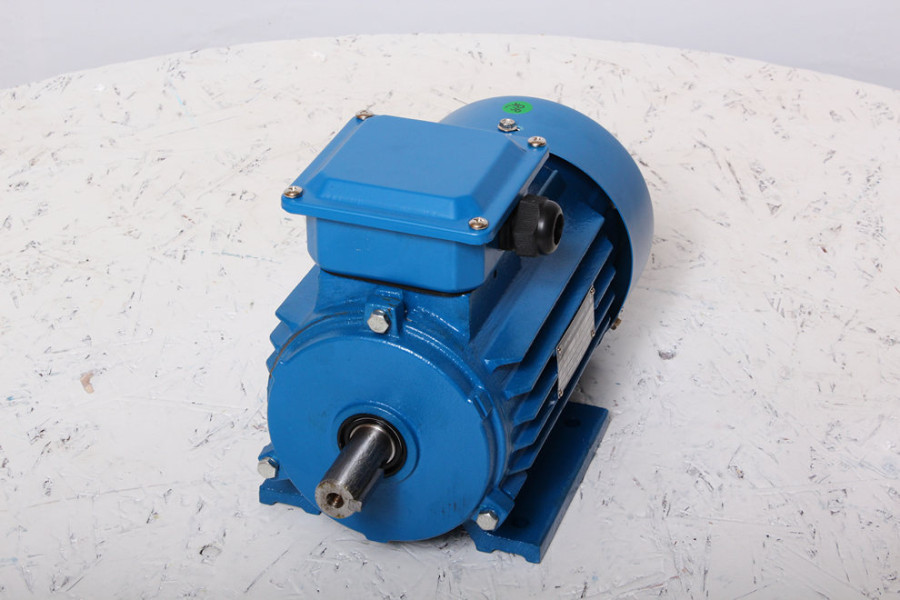

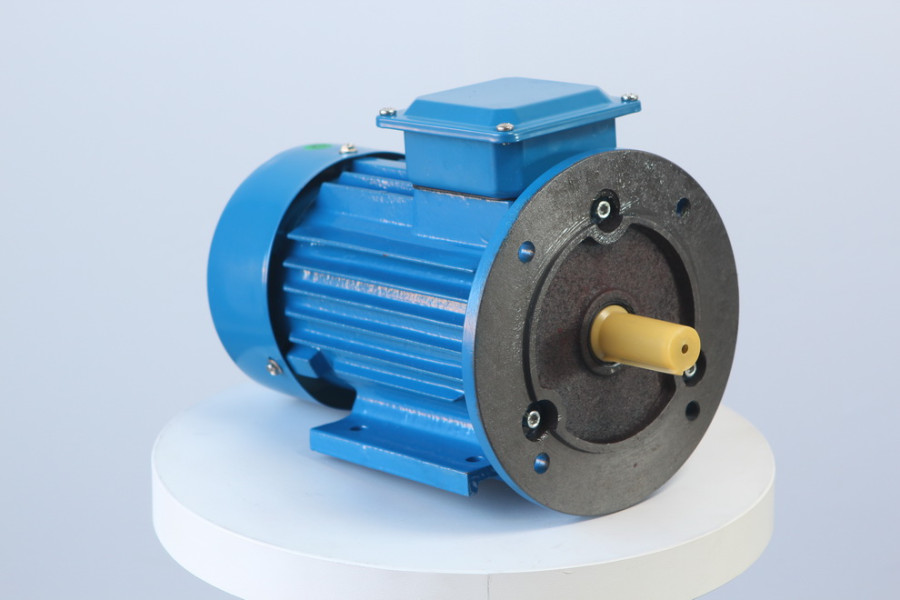

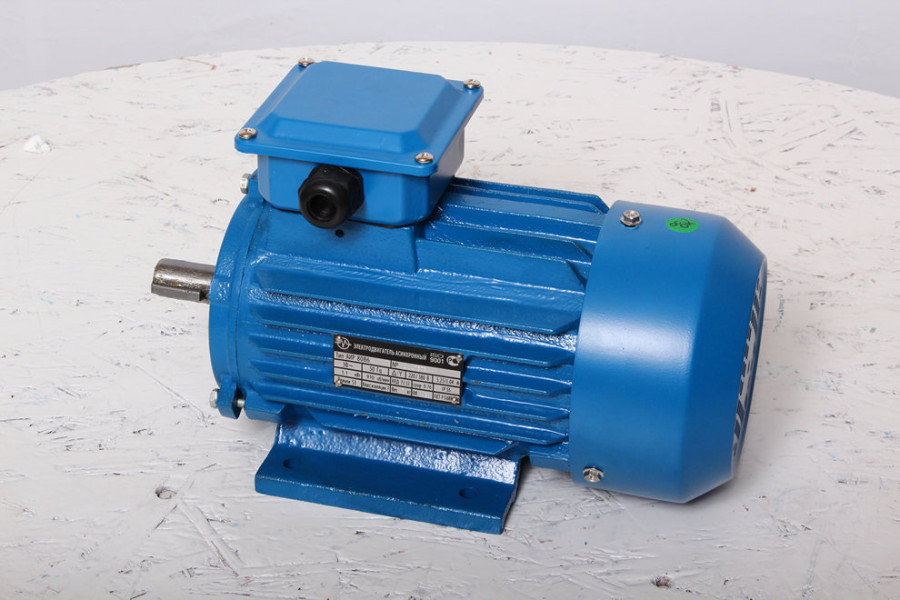

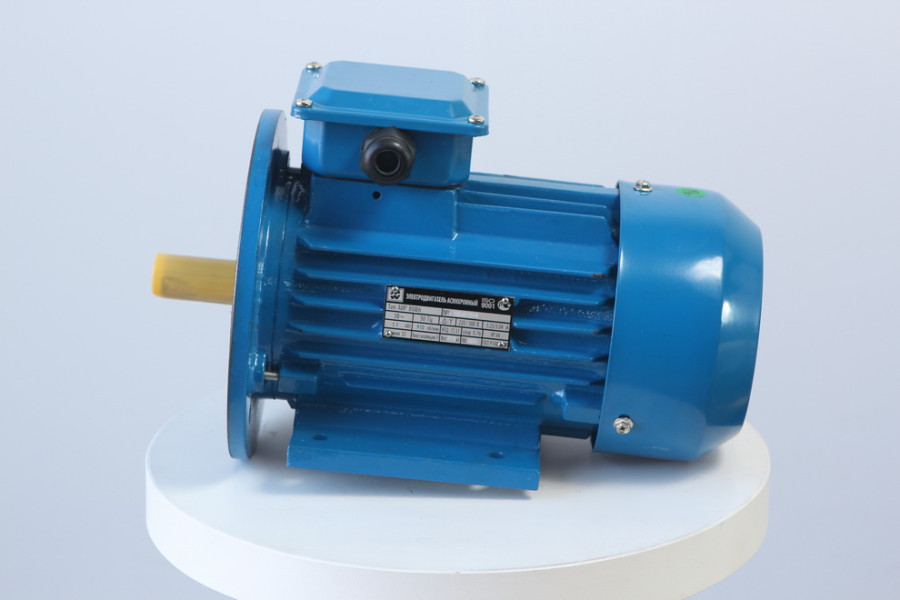

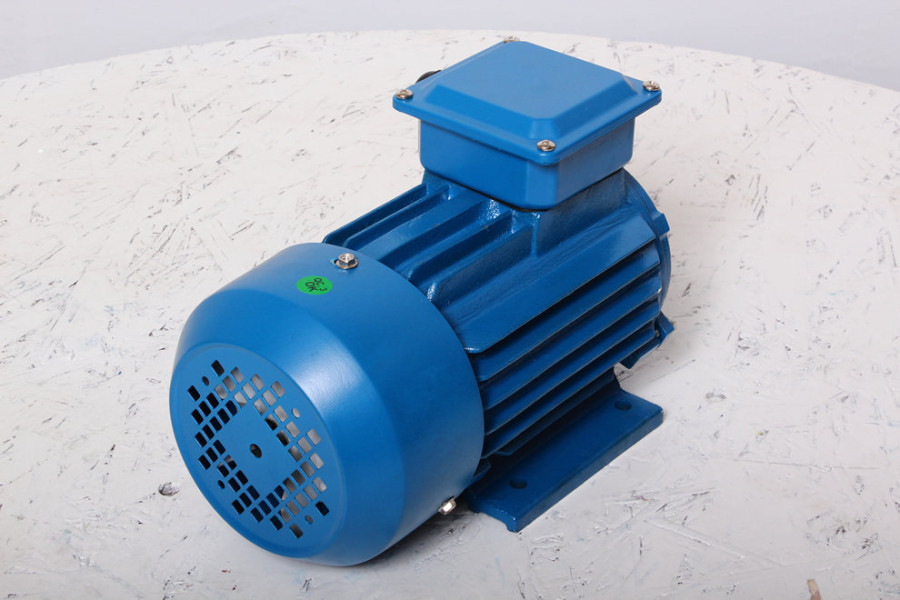

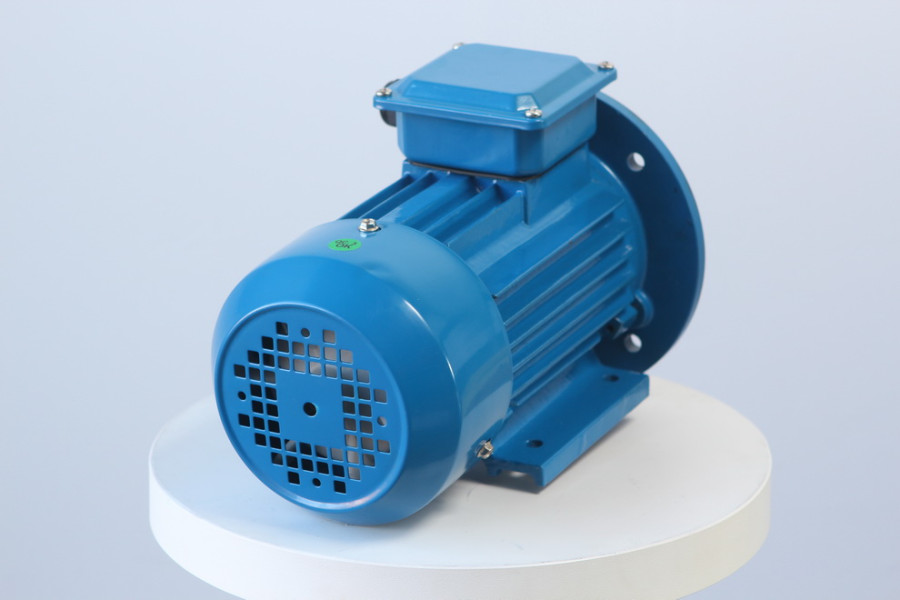

Electric motor AIR 80 B6

Three-phase asynchronous electric motor

Brand: Электродвигатели
0
All about product
Specification
Reviews 0
Questions0
In Stock
Product Code: ID2450
4 326₴
Found cheaper?

Electric motor AIR 80 B6 - general-purpose three-phase asynchronous motor with squirrel cage rotor designed for mains alternating current frequency operation 50 Hz voltage 220/380 V.

Y motor AIR 80 B6 nominal rated revolution 1000 rpm

Dimension (height of shaft rotational axis): 80 mm; shaft diameter: 22 mm; Power: 1.1 kW; climatic category: UZ; IP: 54

The engine body of the engine made of cast iron.Casing of IPA and 80 dimensions of cast silumin alloy.

Voltage, V:220/380
Power kW:1.1
Vol./Min:1000
n, vol./Min:910
Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
Electric motor AIR 80 B6
4 326₴
Specifications
Common
Model
AIR 80 B6
Motor type
asynchronous
Kind
general purpose industrial motor
Motor series
AIR
Shaft diameter, mm
22
Voltage, V
220/380
Frequency of the current, Hz
50
Power kW
1.1
Vol./Min
1000
n, vol./Min
910
Climatic performance
UZ
Class of protection, IP
54
Efficiency, %
72,1
Power factor, cosφ
0,74
Weight, kg
20
Consumed nominal current, In (A)
3,2
Dimension (height of rotation axis), mm
80
Phase
3-phase
The ratio of max. torque to rated power, Mmax/Mn
2,1
The ratio of starting current to the nominal, Istart/In
5,3
The ratio of starting torque to rated power, Mstart/Mn
2
