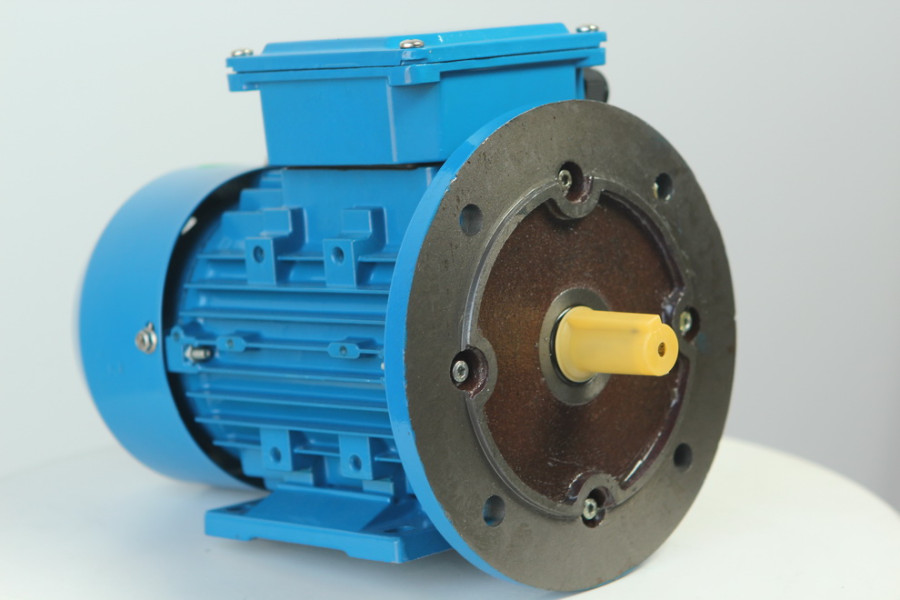

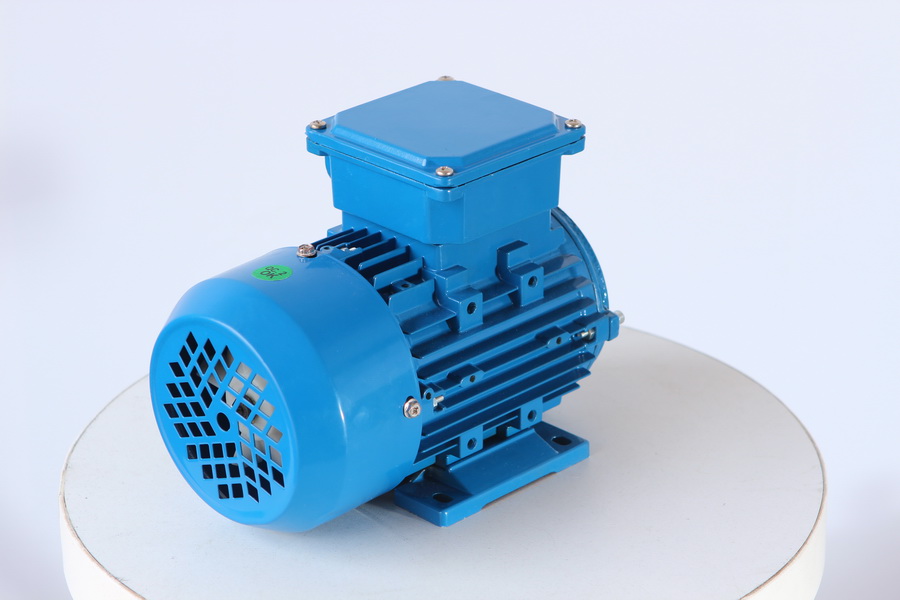

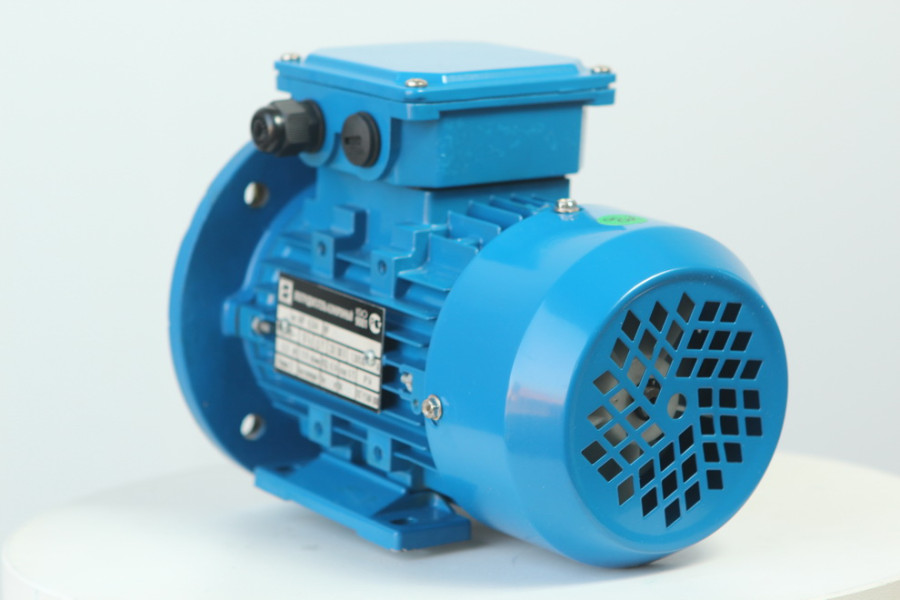

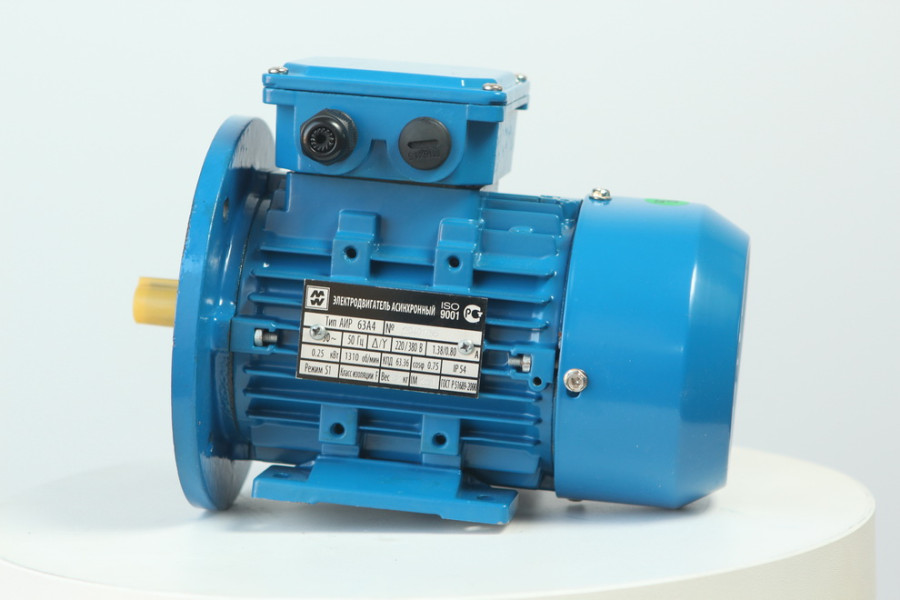

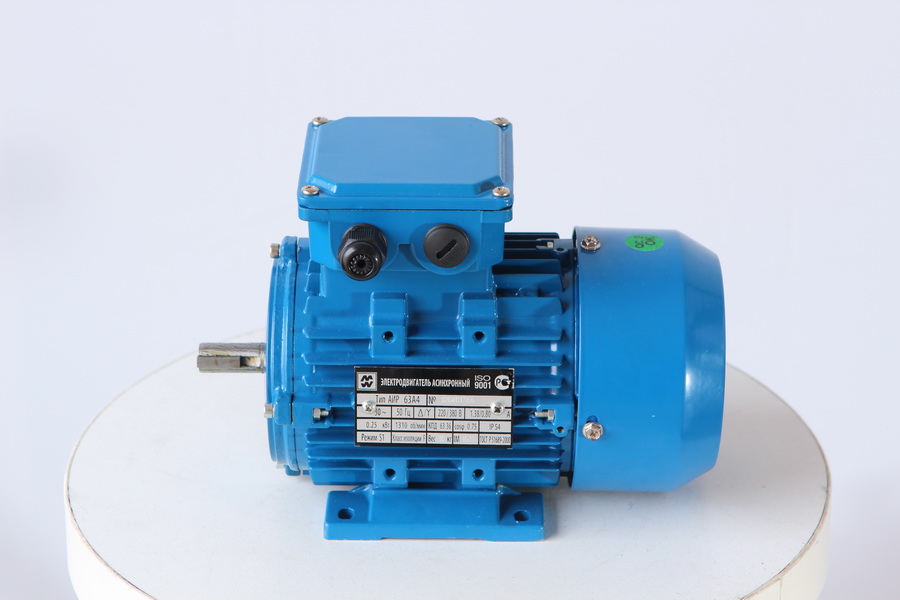

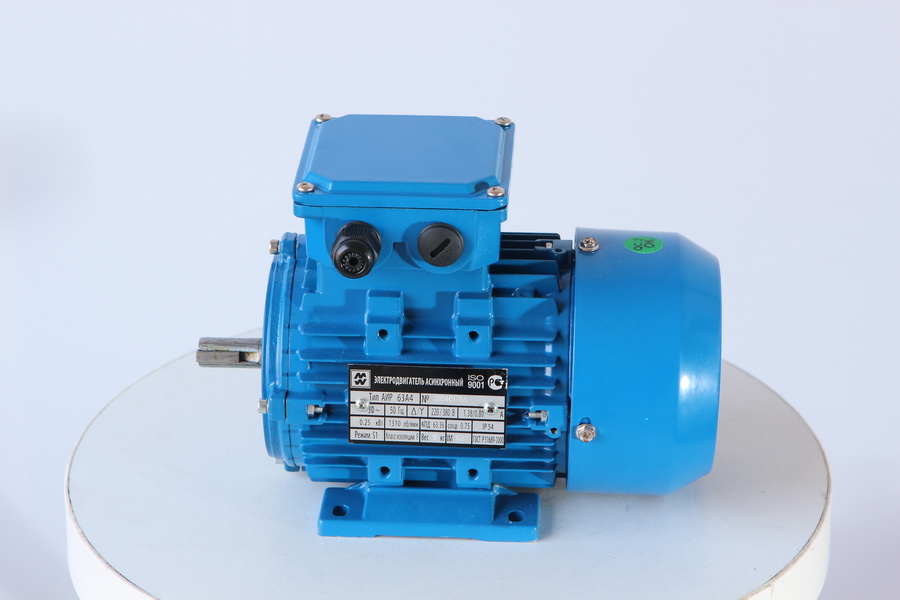

Electric motor AIR 63 A4

Three-phase asynchronous electric motor

Brand: Электродвигатели
0
All about product
Specification
Reviews 0
Questions0
In Stock
Product Code: ID2396
2 182₴
Found cheaper?

Electric motor AIR 63 A4 - general-purpose three-phase asynchronous motor with squirrel cage rotor designed for mains alternating current frequency operation 50 Hz voltage 220/380 V.

Y motor AIR 63 A4 nominal rated revolution 1500 rpm

Dimension (height of shaft rotational axis): 63 mm; shaft diameter: 14 mm; Power: 0.25 kW; climatic category: UZ; IP: 54

the motor housing is made of silumin alloy. Casing of engine AIR 80 inclusive dimension is cast from gray cast iron.



Voltage, V:220/380
Power kW:0.25
Vol./Min:1500
n, vol./Min:1325
Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
Electric motor AIR 63 A4
2 182₴
Specifications
Common
Model
AIR 63 A4
Motor type
asynchronous
Kind
general purpose industrial motor
Motor series
AIR
Shaft diameter, mm
14
Voltage, V
220/380
Frequency of the current, Hz
50
Power kW
0.25
Vol./Min
1500
n, vol./Min
1325
Climatic performance
UZ
Class of protection, IP
54
Efficiency, %
64,5
Power factor, cosφ
0,73
Weight, kg
5,6
Consumed nominal current, In (A)
0,82
Dimension (height of rotation axis), mm
63
Phase
3-phase
The ratio of max. torque to rated power, Mmax/Mn
2,2
The ratio of starting current to the nominal, Istart/In
5,1
The ratio of starting torque to rated power, Mstart/Mn
2,1
