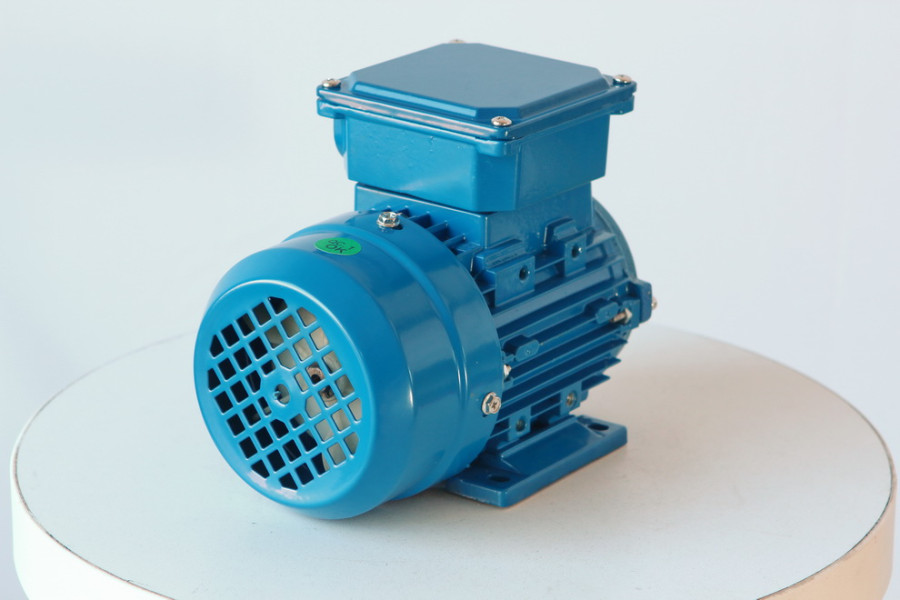

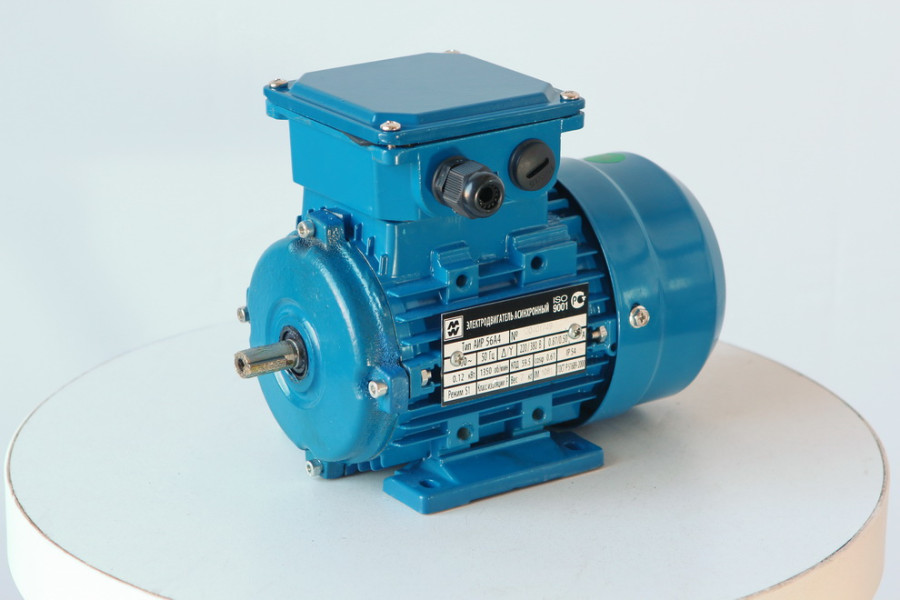

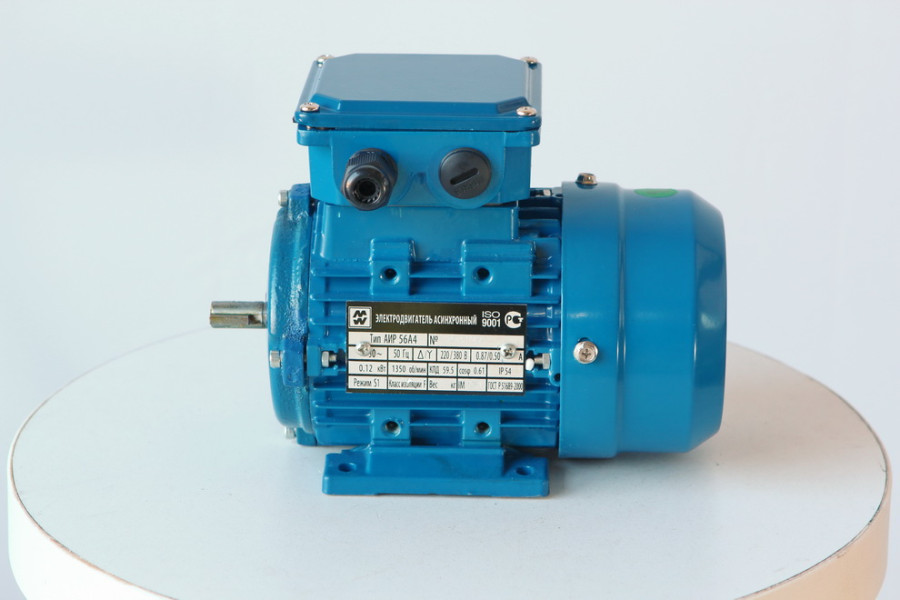

Electric motor AIR 56 A4

Three-phase asynchronous electric motor

Brand: Электродвигатели
0
All about product
Specification
Reviews 0
Questions0
Popular
Electric motor AIR 56 A4
Electric motor AIR 56 A4
Electric motor AIR 56 A4
Electric motor AIR 56 A4
Electric motor AIR 56 A4
Electric motor AIR 56 A4
In Stock
Product Code: ID2393
2 182₴
Found cheaper?

Electric motor AIR 56 A4 - general-purpose three-phase asynchronous motor with squirrel cage rotor designed for mains alternating current frequency operation 50 Hz voltage 220/380 V.

Y motor AIR 56 A4 nominal rated revolution 1500 rpm

Dimension (height of shaft rotational axis): 56 mm; shaft diameter: 11 mm; Power: 0.12 kW; climatic category: UZ; IP: 54

the motor housing is made of silumin alloy. Casing of engine AIR 80 inclusive dimension is cast from gray cast iron.



Voltage, V:220/380
Power kW:0.12
Vol./Min:1500
n, vol./Min:1325
Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
Electric motor AIR 56 A4
2 182₴
Specifications
Common
Model
AIR 56 A4
Motor type
asynchronous
Kind
general-purpose industrial
Motor series
AIR
Shaft diameter, mm
11
Voltage, V
220/380
Frequency of the current, Hz
50
Power kW
0.12
Vol./Min
1500
n, vol./Min
1325
Climatic performance
UZ
Class of protection, IP
54
Efficiency, %
56,5
Power factor, cosφ
0,66
Weight, kg
4,5
Consumed nominal current, In (A)
0,5
Dimension (height of rotation axis), mm
56
Phase
3-phase
The ratio of max. torque to rated power, Mmax/Mn
2,2
The ratio of starting current to the nominal, Istart/In
4,6
The ratio of starting torque to rated power, Mstart/Mn
2,1
