Electric motor AIR 315 S4

Name: Electric motor AIR 315 S4
Brand: Электродвигатели
Price: 188591 UAH
Availability: InStock

Three-phase asynchronous electric motor

Brand: Электродвигатели

All about product

Specification

Reviews 0

Questions0

Popular

In Stock

Product Code: ID2420

188 591₴

Found cheaper?

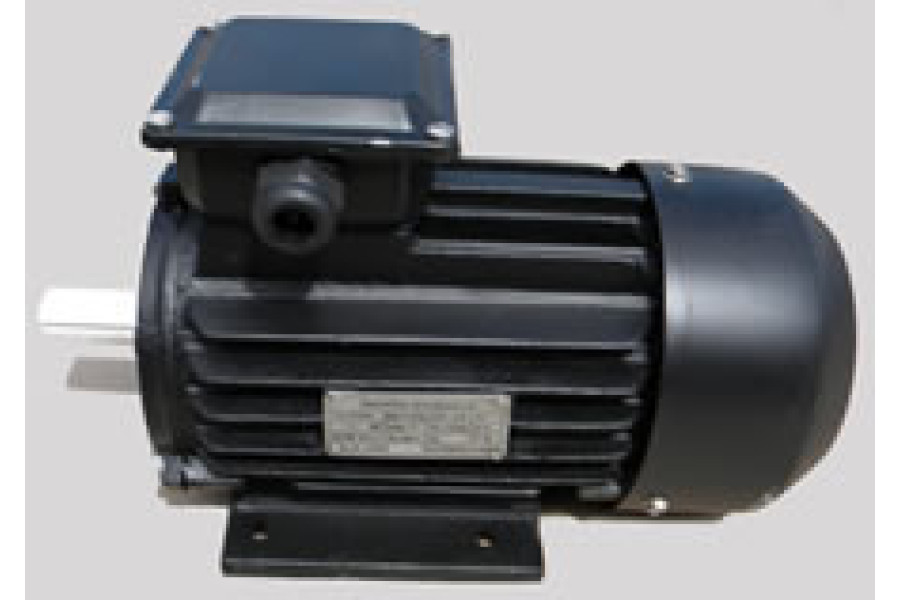

Electric motor AIR 315 S4 - general-purpose three-phase asynchronous motor with squirrel cage rotor designed for mains alternating current frequency operation 50 Hz voltage 380/660 V.

Y motor AIR 315 S4 nominal rated revolution 1500 rpm

Dimension (height of shaft rotational axis): 315 mm; shaft diameter: 90 mm; Power: 160.0 kW; climatic category: UZ; IP: 54

The engine body of the engine made of cast iron.Casing of IPA and 80 dimensions of cast silumin alloy.

Voltage, V:380/660

Power kW:160.0

Vol./Min:1500

n, vol./Min:1480

Delivery

Nova Poshta

Delivery (saving 10% of the delivery cost)

Self-delivery

Electric motor AIR 315 S4

188 591₴

Specifications

Common

Model

AIR 315 S4

Motor type

asynchronous

Kind

general purpose industrial motor

Motor series

AIR

Shaft diameter, mm

Voltage, V

380/660

Frequency of the current, Hz

Power kW

160.0

Vol./Min

1500

n, vol./Min

1480

Climatic performance

Class of protection, IP

Efficiency, %

94,8

Power factor, cosφ

0,89

Weight, kg

1053

Consumed nominal current, In (A)

297

Dimension (height of rotation axis), mm

315

Phase

3-phase

The ratio of max. torque to rated power, Mmax/Mn

2,4

The ratio of starting current to the nominal, Istart/In

6,8

The ratio of starting torque to rated power, Mstart/Mn

2,3
