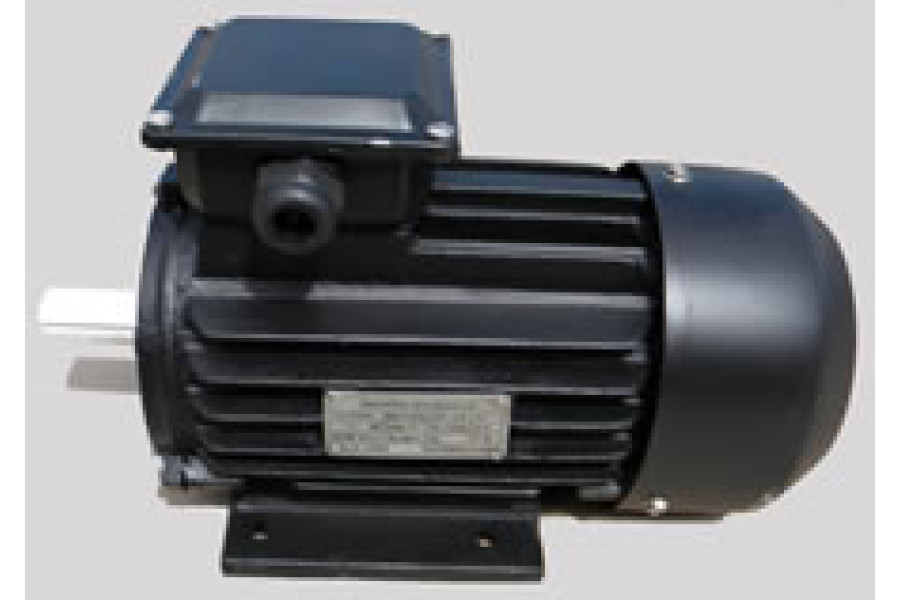

Electric motor AIR 315 M2

Name: Electric motor AIR 315 M2
Brand: Электродвигатели
Price: 196619 UAH
Availability: InStock

Three-phase asynchronous electric motor

Brand: Электродвигатели

All about product

Specification

Reviews 0

Questions0

Popular

In Stock

Product Code: ID2442

196 619₴

Found cheaper?

Electric motor AIR 315 M2 - general-purpose three-phase asynchronous motor with squirrel cage rotor designed for mains alternating current frequency operation 50 Hz voltage 380/660 V.

Y motor AIR 315 M2 nominal rated revolution 3000 rpm

Dimension (height of shaft rotational axis): 315 mm; shaft diameter: 75 mm; Power: 200.0 kW; climatic category: UZ; IP: 54

The engine body of the engine made of cast iron.Casing of IPA and 80 dimensions of cast silumin alloy.

Voltage, V: 380/660

Power kW:200.0

Vol./Min:3000

n, vol./Min:2975

Delivery

Nova Poshta

Delivery (saving 10% of the delivery cost)

Self-delivery

Electric motor AIR 315 M2

196 619₴

Specifications

Common

Model

AIR 315 M2

Motor type

asynchronous

Kind

general purpose industrial motor

Motor series

AIR

Shaft diameter, mm

Voltage, V

380/660

Frequency of the current, Hz

Power kW

200.0

Vol./Min

3000

n, vol./Min

2975

Climatic performance

Class of protection, IP

Efficiency, %

94,7

Power factor, cosφ

0,95

Weight, kg

1460

Consumed nominal current, In (A)

358

Dimension (height of rotation axis), mm

315

Phase

3-phase

The ratio of max. torque to rated power, Mmax/Mn

2,3

The ratio of starting current to the nominal, Istart/In

6,6

The ratio of starting torque to rated power, Mstart/Mn

1,9
