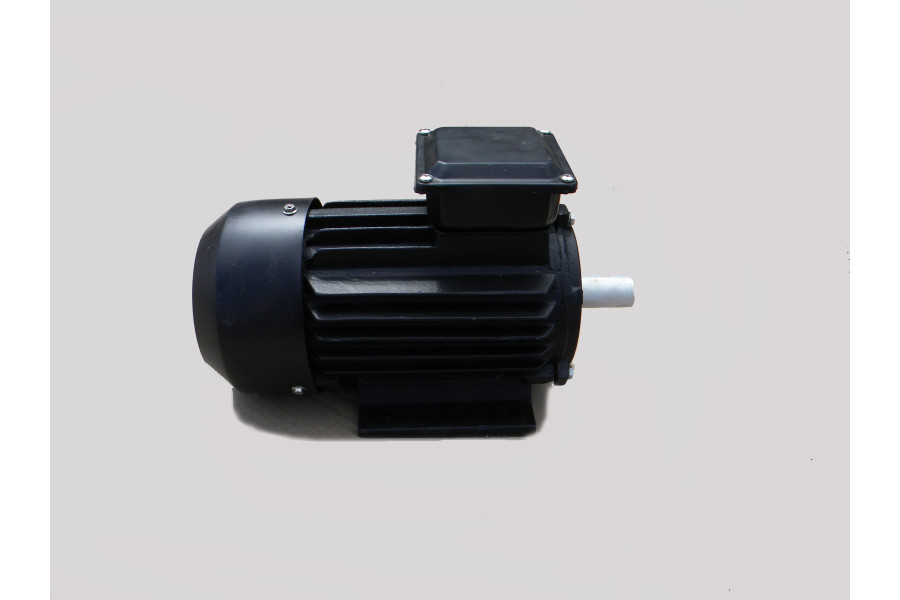

Electric motor AIR 280 M8 - general-purpose three-phase asynchronous motor with squirrel cage rotor designed for mains alternating current frequency operation 50 Hz voltage 380/660 V.

Y motor AIR 280 M8 nominal rated revolution 750 rpm

Dimension (height of shaft rotational axis): 280 mm; shaft diameter: 80 mm; Power: 75.0 kW; climatic category: UZ; IP: 54

The engine body of the engine made of cast iron.Casing of IPA and 80 dimensions of cast silumin alloy.

Voltage, V:380/660

Power kW:75.0

Vol./Min:750

n, vol./Min:740

Delivery

Nova Poshta

Delivery (saving 10% of the delivery cost)

Self-delivery

Electric motor AIR 280 M8

96 290₴

Specifications

Common

Model

AIR 280 M8

Motor type

asynchronous

Kind

general purpose industrial motor

Motor series

AIR

Shaft diameter, mm

Voltage, V

380/660

Frequency of the current, Hz

Power kW

75.0

Vol./Min

750

n, vol./Min

740

Climatic performance

Class of protection, IP

Efficiency, %

Power factor, cosφ

0,81

Weight, kg

800

Consumed nominal current, In (A)

154

Dimension (height of rotation axis), mm

280

Phase

3-phase

The ratio of max. torque to rated power, Mmax/Mn

2,1

The ratio of starting current to the nominal, Istart/In

5,8

The ratio of starting torque to rated power, Mstart/Mn

1,9
