Three-phase asynchronous electric motor Electric motor AIR 225 M8

Brand: Электродвигатели
0
All about product
Specification
Reviews 0
Popular

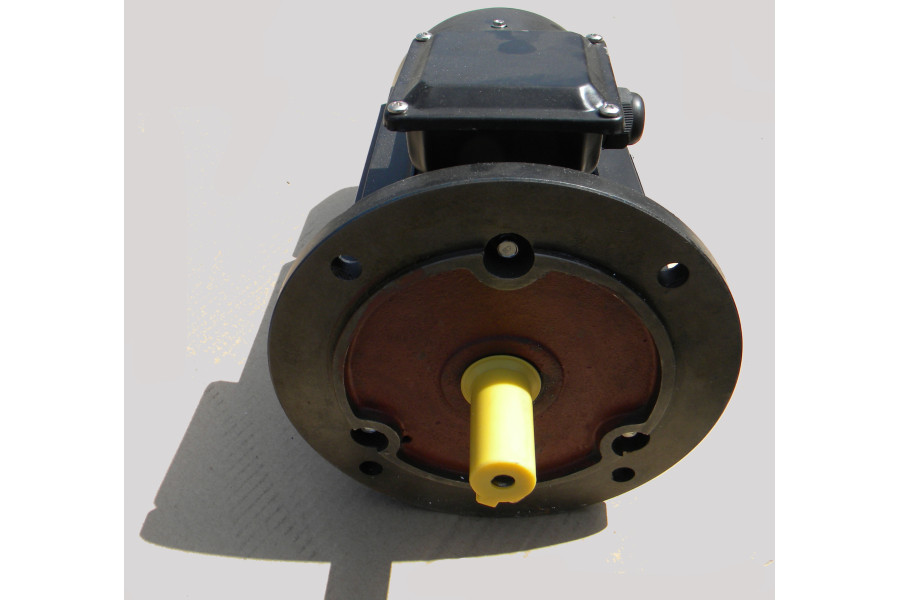

Electric motor AIR 225 M8

In Stock
Product Code: ID2489
52 931₴
Found cheaper?

Electric motor AIR 225 M8 - general-purpose three-phase asynchronous motor with squirrel cage rotor designed for mains alternating current frequency operation 50 Hz voltage 220/380 V.

Y motor AIR 225 M8 nominal rated revolution 750 rpm

Dimension (height of shaft rotational axis): 225 mm; shaft diameter: 65 mm; Power: 30 kW; climatic category: UZ; IP: 54

The engine body of the engine made of cast iron.Casing of IPA and 80 dimensions of cast silumin alloy.

Voltage, V:220/380
Power kW:30
Vol./Min:750
n, vol./Min:735
Whatsapp
Telegram
Viber
Messenger
+38 (044) 238-24-81
+38 (067) 567-28-89
Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
SAT SAT
Self-delivery Self-delivery
Оплата
Payment Methods
We operate via bank transfer, ensuring full transparency and official documentation for every transaction.
How to Pay
Immediately after placing an order, a KVZ manager will send you a proforma invoice.
For legal entities and Individual Entrepreneurs: from your company's current account.
For individuals: via any banking application using bank details (IBAN).
Individual Terms
We value our partners and are ready to discuss personal payment options for cases requiring a special approach. Contact us to find the best solution.
Каталог
Electric motor AIR 225 M8
52 931₴
Specifications
Common
Model
AIR 225 M8
Motor type
asynchronous
Kind
general purpose industrial motor
Motor series
AIR
Shaft diameter, mm
65
Voltage, V
220/380
Frequency of the current, Hz
50
Power kW
30
Vol./Min
750
n, vol./Min
735
Climatic performance
UZ
Class of protection, IP
54
Efficiency, %
90,6
Power factor, cosφ
0,78
Weight, kg
360
Consumed nominal current, In (A)
65
Dimension (height of rotation axis), mm
225
Phase
3-phase
The ratio of max. torque to rated power, Mmax/Mn
2,1
The ratio of starting current to the nominal, Istart/In
6,5
The ratio of starting torque to rated power, Mstart/Mn
2
