Electric motor AIR 200 M8

Name: Electric motor AIR 200 M8
Brand: Электродвигатели
Price: 36717 UAH
Availability: InStock

Three-phase asynchronous electric motor

Brand: Электродвигатели

All about product

Specification

Reviews 0

Questions0

Popular

In Stock

Product Code: ID2487

36 717₴

Found cheaper?

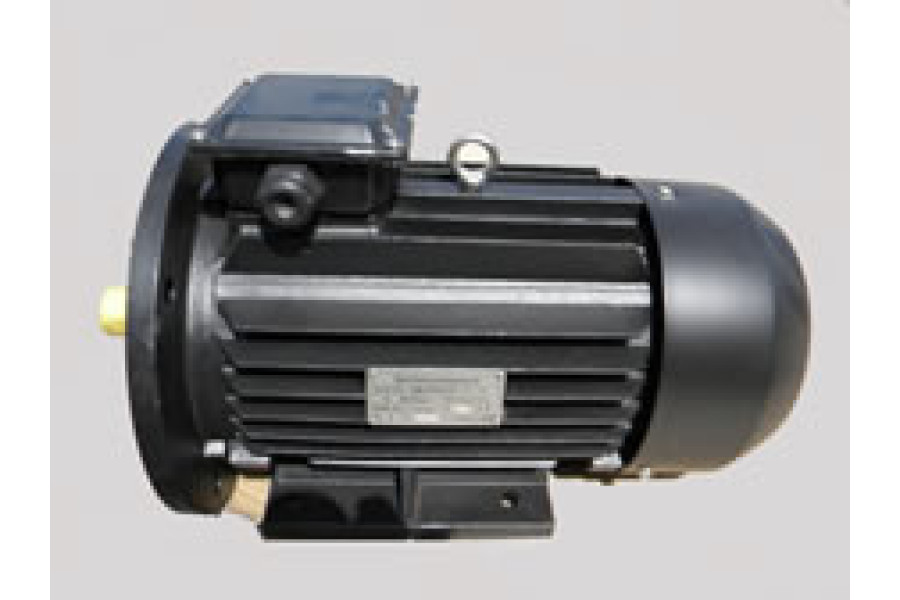

Electric motor AIR 200 M8 - general-purpose three-phase asynchronous motor with squirrel cage rotor designed for mains alternating current frequency operation 50 Hz voltage 220/380 V.

Y motor AIR 200 M8 nominal rated revolution 750 rpm

Dimension (height of shaft rotational axis): 200 mm; shaft diameter: 38 mm; Power: 18.5 kW; climatic category: UZ; IP: 54

Voltage, V:220/380

Power kW:18.5

Vol./Min:750

n, vol./Min:730

Delivery

Nova Poshta

Delivery (saving 10% of the delivery cost)

Self-delivery

Electric motor AIR 200 M8

36 717₴

Specifications

Common

Model

AIR 200 M8

Motor type

asynchronous

Kind

general purpose industrial motor

Motor series

AIR

Shaft diameter, mm

Voltage, V

220/380

Frequency of the current, Hz

Power kW

18.5

Vol./Min

750

n, vol./Min

730

Climatic performance

Class of protection, IP

Efficiency, %

Power factor, cosφ

0,78

Weight, kg

250

Consumed nominal current, In (A)

Dimension (height of rotation axis), mm

200

Phase

3-phase

The ratio of max. torque to rated power, Mmax/Mn

2,1

The ratio of starting current to the nominal, Istart/In

6,2

The ratio of starting torque to rated power, Mstart/Mn

1,9
