Electric motor AIR 200 M6

Three-phase asynchronous electric motor

Brand: Электродвигатели
0
All about product
Specification
Reviews 0
Questions0
Popular
Electric motor AIR 200 M6
Electric motor AIR 200 M6
Electric motor AIR 200 M6
Electric motor AIR 200 M6
Electric motor AIR 200 M6
Electric motor AIR 200 M6
Electric motor AIR 200 M6
Electric motor AIR 200 M6
In Stock
Product Code: ID2460
34 272₴
Found cheaper?

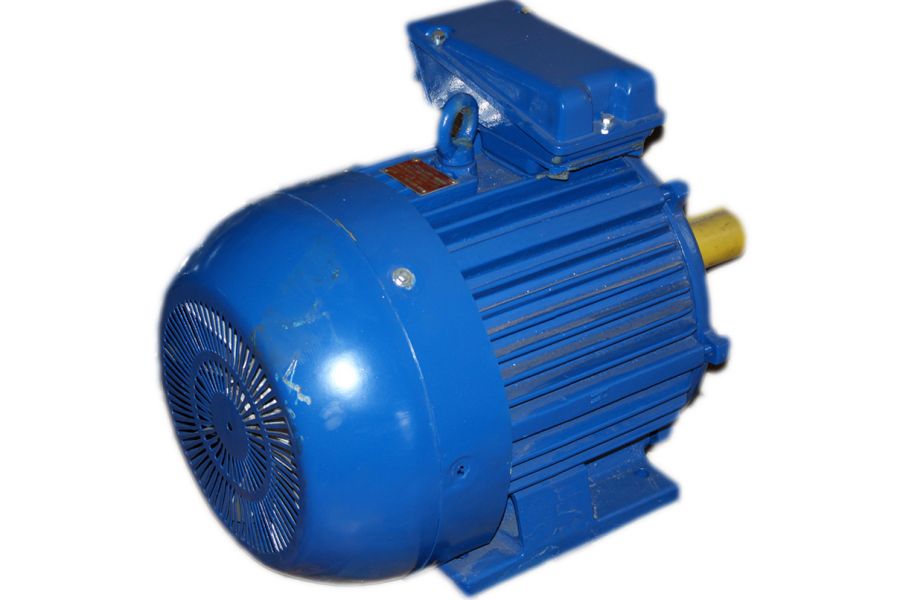

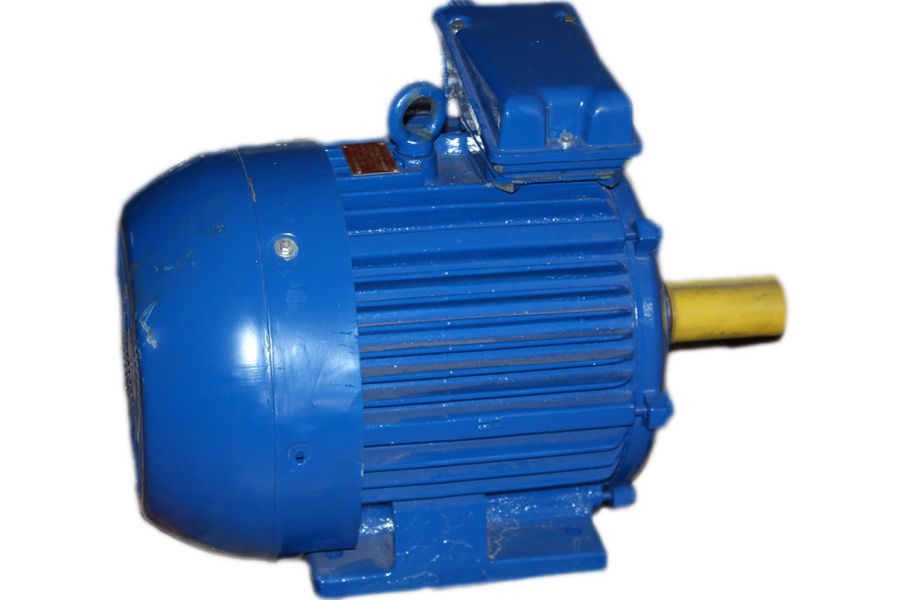

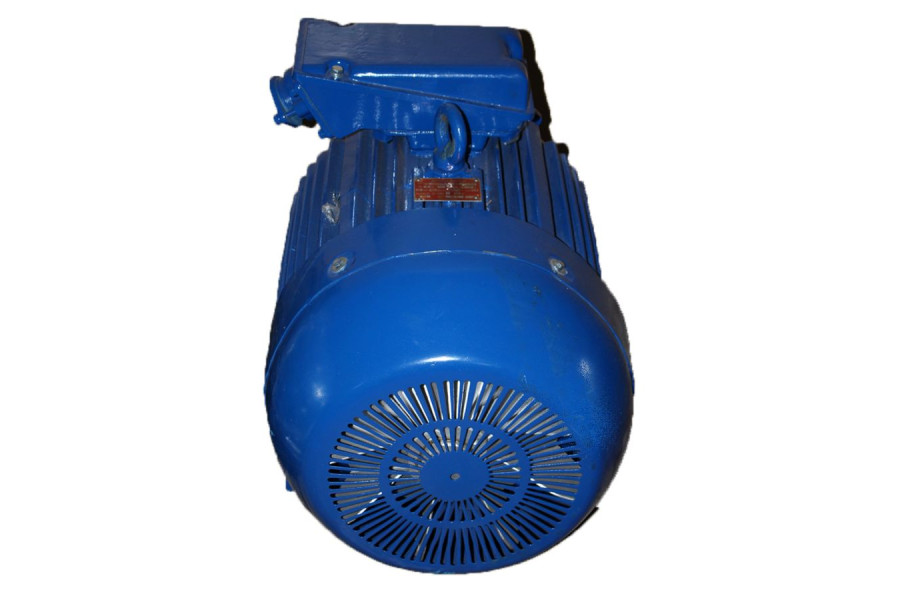

Electric motor AIR 200 M6 - general-purpose three-phase asynchronous motor with squirrel cage rotor designed for mains alternating current frequency operation 50 Hz voltage 220/380 V.

Y motor AIR 200 M6 nominal rated revolution 1000 rpm

Dimension (height of shaft rotational axis): 200 mm; shaft diameter: 60 mm; Power: 22.0 kW; climatic category: UZ; IP: 54

Voltage, V:220/380
Power kW:22.0
Vol./Min:1000
n, vol./Min:975
Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
Electric motor AIR 200 M6
34 272₴
Specifications
Common
Model
AIR 200 M6
Motor type
asynchronous
Kind
general purpose industrial motor
Motor series
AIR
Shaft diameter, mm
60
Voltage, V
220/380
Frequency of the current, Hz
50
Power kW
22.0
Vol./Min
1000
n, vol./Min
975
Climatic performance
UZ
Class of protection, IP
54
Efficiency, %
89,7
Power factor, cosφ
0,83
Weight, kg
233
Consumed nominal current, In (A)
45
Dimension (height of rotation axis), mm
200
Phase
3-phase
The ratio of max. torque to rated power, Mmax/Mn
2,2
The ratio of starting current to the nominal, Istart/In
6,3
The ratio of starting torque to rated power, Mstart/Mn
2,1
