Electric motor AIR 200 M2

Name: Electric motor AIR 200 M2
Brand: Электродвигатели
Price: 39915 UAH
Availability: InStock

Three-phase asynchronous electric motor

Brand: Электродвигатели

All about product

Specification

Reviews 0

Questions0

Popular

In Stock

Product Code: ID2434

39 915₴

Found cheaper?

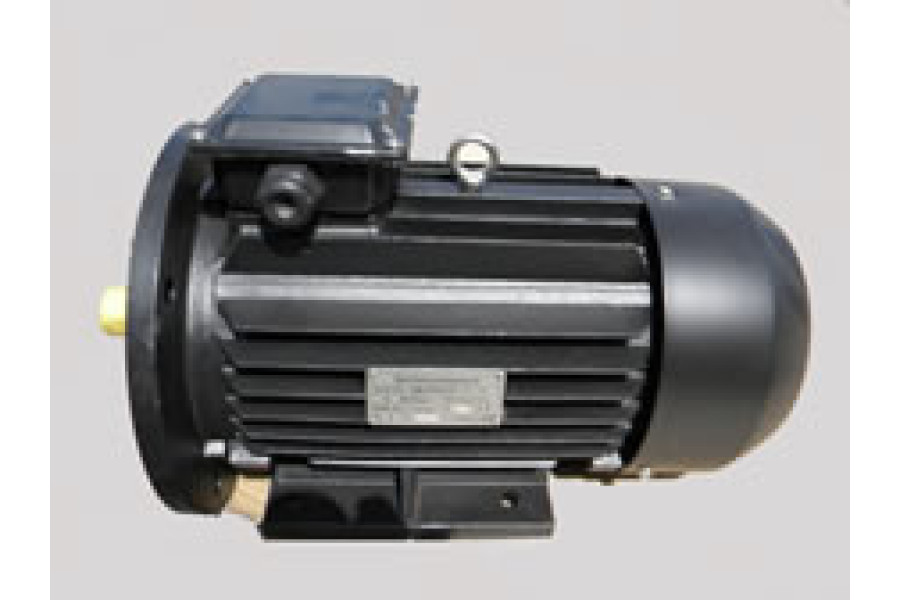

Electric motor AIR 200 M2 - general-purpose three-phase asynchronous motor with squirrel cage rotor designed for mains alternating current frequency operation 50 Hz voltage 220/380 V.

Y motor AIR 200 M2 nominal rated revolution 3000 rpm

Dimension (height of shaft rotational axis): 200 mm; shaft diameter: 55 mm; Power: 37.0 kW; climatic category: UZ; IP: 54

Voltage, V:220/380

Power kW:37.0

Vol./Min:3000

n, vol./Min:2940

Delivery

Nova Poshta

Delivery (saving 10% of the delivery cost)

Self-delivery

Electric motor AIR 200 M2

39 915₴

Specifications

Common

Model

AIR 200 M2

Motor type

asynchronous

Kind

general purpose industrial motor

Motor series

AIR

Shaft diameter, mm

Voltage, V

220/380

Frequency of the current, Hz

Power kW

37.0

Vol./Min

3000

n, vol./Min

2940

Climatic performance

Class of protection, IP

Efficiency, %

91,2

Power factor, cosφ

0,89

Weight, kg

247

Consumed nominal current, In (A)

Dimension (height of rotation axis), mm

200

Phase

3-phase

The ratio of max. torque to rated power, Mmax/Mn

2,4

The ratio of starting current to the nominal, Istart/In

7,1

The ratio of starting torque to rated power, Mstart/Mn

2,1
