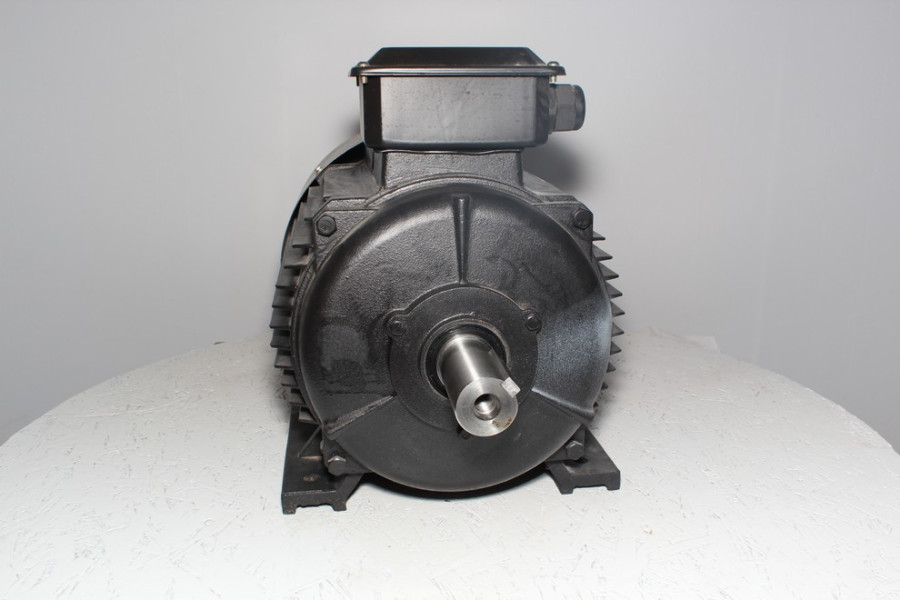

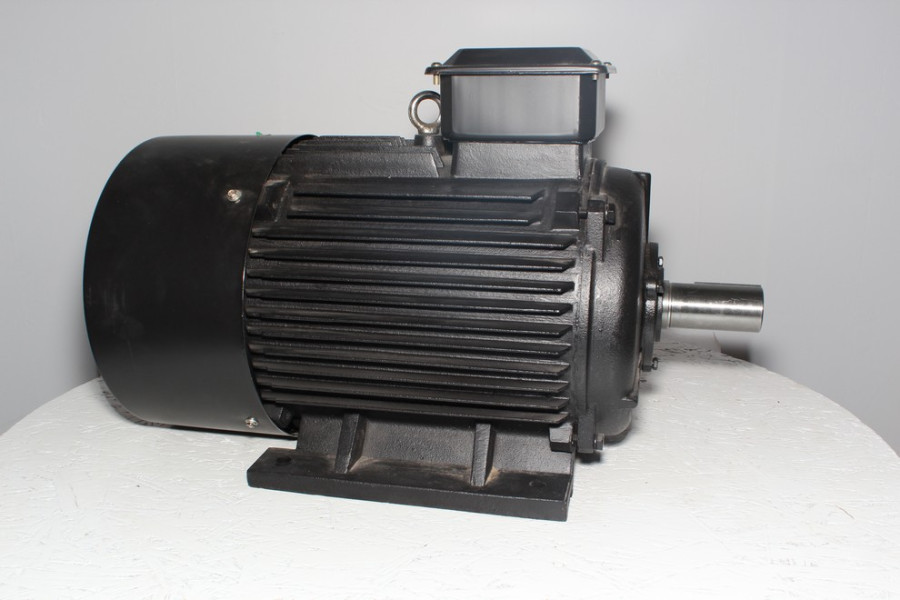

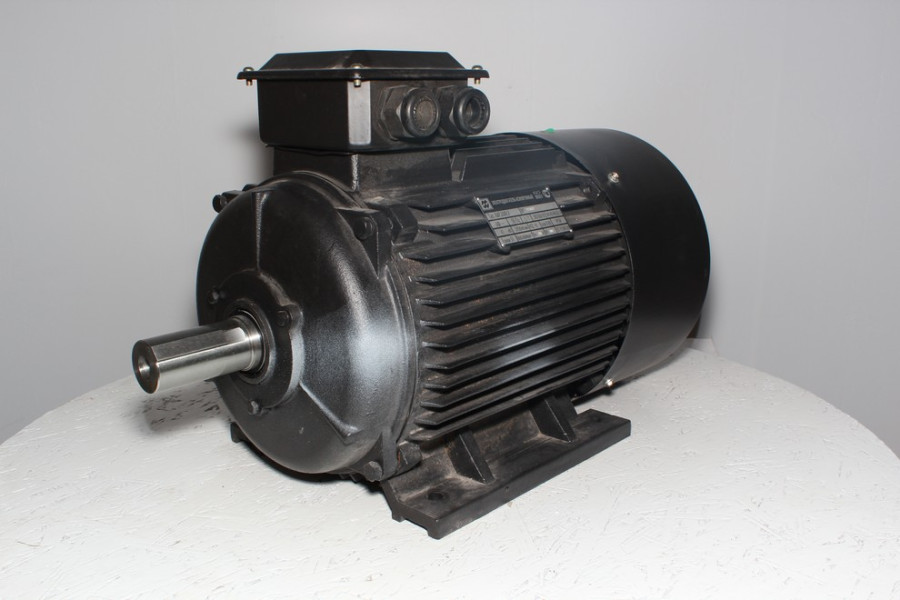

Electric motor AIR 200 L2

Three-phase asynchronous electric motor

Brand: Электродвигатели
0
All about product
Specification
Reviews 0
Questions0
Popular
Electric motor AIR 200 L2
Electric motor AIR 200 L2
Electric motor AIR 200 L2
Electric motor AIR 200 L2
Electric motor AIR 200 L2
Electric motor AIR 200 L2
In Stock
Product Code: ID2435
43 639₴
Found cheaper?

Electric motor AIR 200 L2 - general-purpose three-phase asynchronous motor with squirrel cage rotor designed for mains alternating current frequency operation 50 Hz voltage 220/380 V.

Y motor AIR 200 L2 nominal rated revolution 3000 rpm

Dimension (height of shaft rotational axis): 200 mm; shaft diameter: 55 mm; Power: 45.0 kW; climatic category: UZ; IP: 54

The engine body of the engine made of cast iron.Casing of IPA and 80 dimensions of cast silumin alloy.

Voltage, V:220/380
Power kW:45.0
Vol./Min:3000
n, vol./Min:2945
Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
Electric motor AIR 200 L2
43 639₴
Specifications
Common
Model
AIR 200 L2
Motor type
asynchronous
Kind
general purpose industrial motor
Motor series
AIR
Shaft diameter, mm
55
Voltage, V
220/380
Frequency of the current, Hz
50
Power kW
45.0
Vol./Min
3000
n, vol./Min
2945
Climatic performance
UZ
Class of protection, IP
54
Efficiency, %
91,8
Power factor, cosφ
0,89
Weight, kg
255
Consumed nominal current, In (A)
84,9
Dimension (height of rotation axis), mm
200
Phase
3-phase
The ratio of max. torque to rated power, Mmax/Mn
2,4
The ratio of starting current to the nominal, Istart/In
7,1
The ratio of starting torque to rated power, Mstart/Mn
2,1
