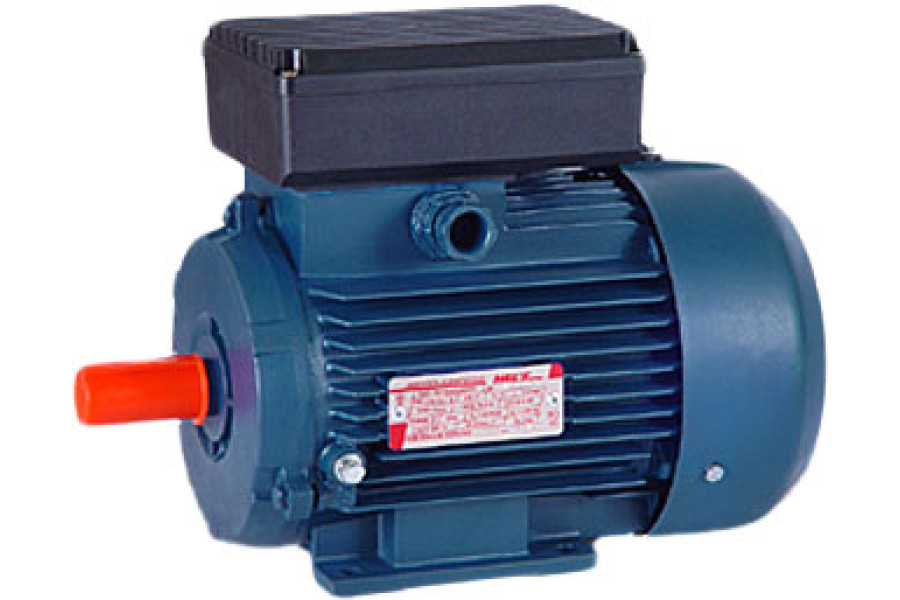

Electric motor AIR 1E 80 B4 B4

Single-phase asynchronous electric motor

Brand: Электродвигатели
0
All about product
Specification
Reviews 0
Questions0
Popular
Electric motor AIR 1E 80 B4 B4
On order
Product Code: ID15486
negotiable

Asynchronous motor AIR 1E 80 V4 B4: Power: 1.1 kW; nominal rated revolution: 1500/min; size (height of the axis of rotation): 80 mm; shaft diameter: 22 mm; frequency AC 50 Hz voltage 220 V.



Voltage, V:220
Power kW:1.1
Vol./Min:1500
Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
Electric motor AIR 1E 80 B4 B4
Specifications
Common
Model
AIR 1E 80 V4 B4
Motor type
asynchronous
Kind
general purpose industrial motor
Motor series
AIR 1E
Shaft diameter, mm
22
Voltage, V
220
Frequency of the current, Hz
50
Power kW
1.1
Vol./Min
1500
Climatic performance
U2, UZ, UHL4
Motor insulation class
F
Class of protection, IP
54
Weight, kg
14,1
Consumed nominal current, In (A)
7,2
Dimension (height of rotation axis), mm
80
Number of poles
4
Phase
1-phase
The capacitor, μF
32
The ratio of max. torque to rated power, Mmax/Mn
1,5
The ratio of starting torque to rated power, Mstart/Mn
0,35
