Electric motor AIR 160 S8

Name: Electric motor AIR 160 S8
Brand: Электродвигатели
Price: 18415 UAH
Availability: InStock

Three-phase asynchronous electric motor

Brand: Электродвигатели

All about product

Specification

Reviews 0

Questions0

Popular

In Stock

Product Code: ID2484

18 415₴

Found cheaper?

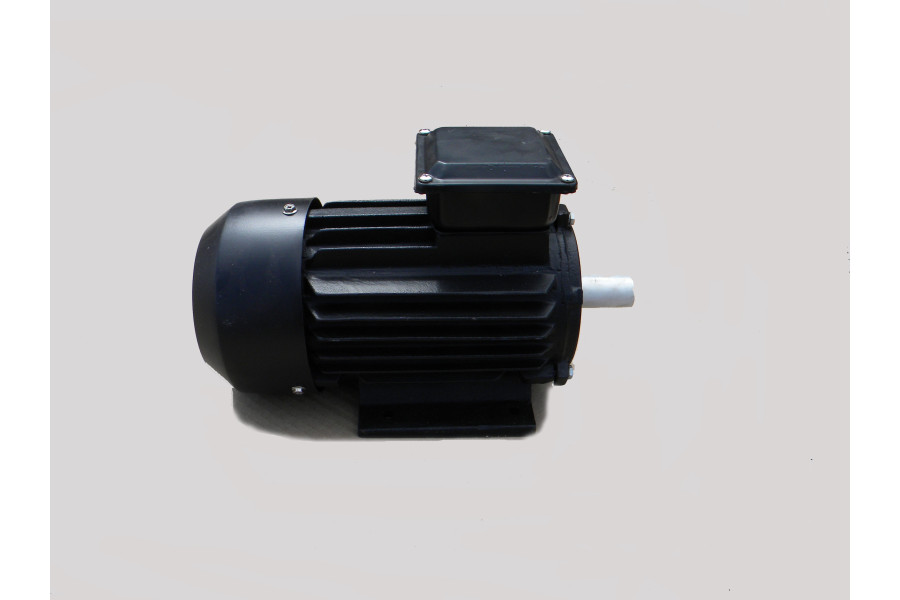

Electric motor AIR 160 S8 - general-purpose three-phase asynchronous motor with squirrel cage rotor designed for mains alternating current frequency operation 50 Hz voltage 220/380 V.

Y motor AIR 160 S8 nominal rated revolution 750 rpm

Dimension (height of shaft rotational axis): 160 mm; shaft diameter: 48 mm; Power: 7.5 kW; climatic category: UZ; IP: 54

The engine body of the engine made of cast iron.Casing of IPA and 80 dimensions of cast silumin alloy.

Voltage, V:220/380

Power kW:7.5

Vol./Min:750

n, vol./Min:720

Delivery

Nova Poshta

Delivery (saving 10% of the delivery cost)

Self-delivery

Electric motor AIR 160 S8

18 415₴

Specifications

Common

Model

AIR 160 S8

Motor type

asynchronous

Kind

general purpose industrial motor

Motor series

AIR

Shaft diameter, mm

Voltage, V

220/380

Frequency of the current, Hz

Power kW

7.5

Vol./Min

750

n, vol./Min

720

Climatic performance

Class of protection, IP

Efficiency, %

85,2

Power factor, cosφ

0,74

Weight, kg

148

Consumed nominal current, In (A)

Dimension (height of rotation axis), mm

160

Phase

3-phase

The ratio of max. torque to rated power, Mmax/Mn

2,1

The ratio of starting current to the nominal, Istart/In

5,8

The ratio of starting torque to rated power, Mstart/Mn
