Electric motor AIR 160 M6

Three-phase asynchronous electric motor

Brand: Электродвигатели
0
All about product
Specification
Reviews 0
Questions0
Popular

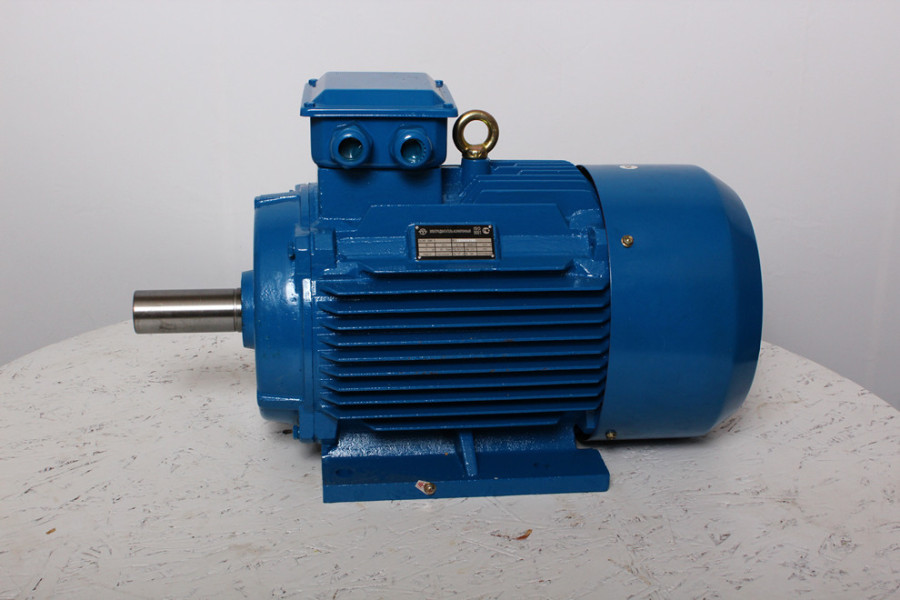

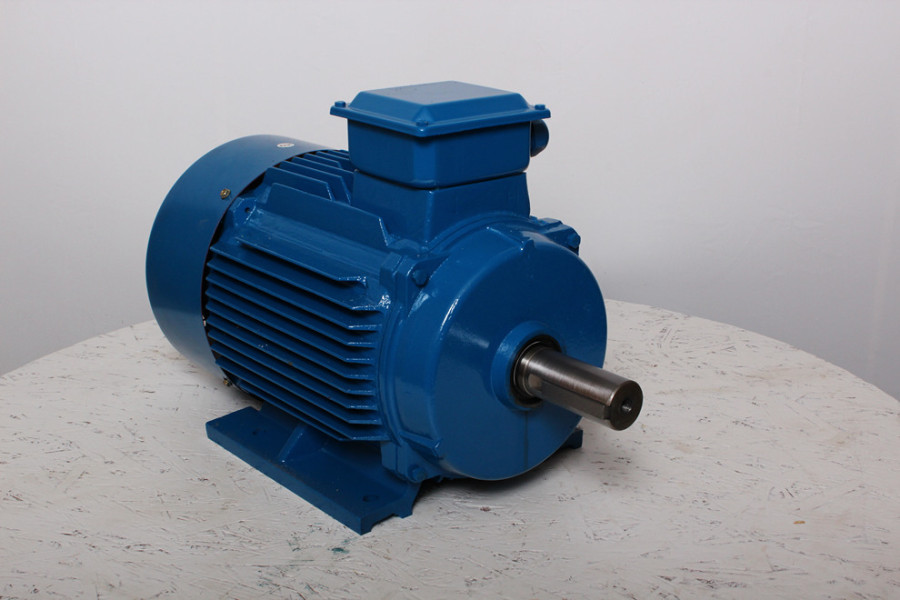

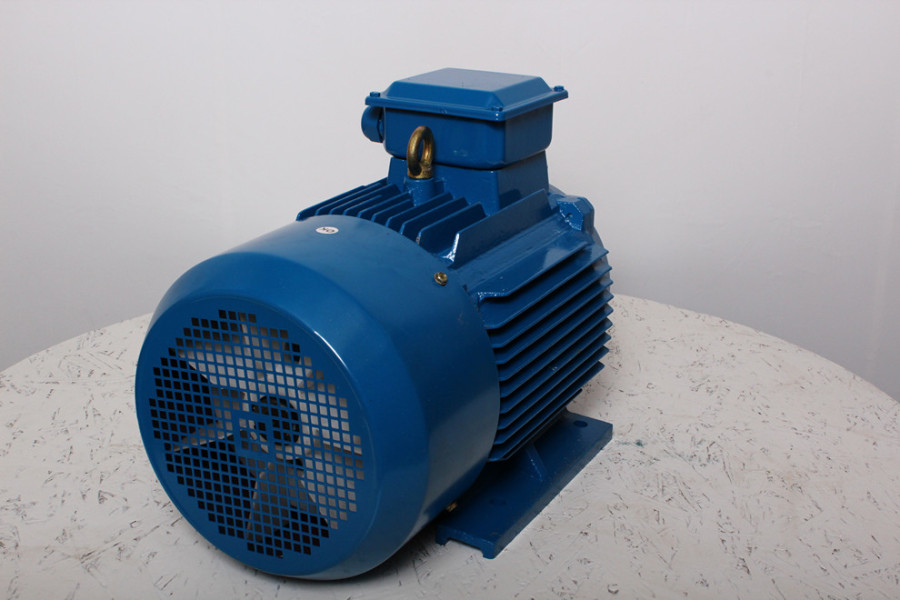

Electric motor AIR 160 M6
Electric motor AIR 160 M6
Electric motor AIR 160 M6
Electric motor AIR 160 M6
Electric motor AIR 160 M6
Electric motor AIR 160 M6
In Stock
Product Code: ID2458
22 045₴
Found cheaper?

Electric motor AIR 160 M6 - general-purpose three-phase asynchronous motor with squirrel cage rotor designed for mains alternating current frequency operation 50 Hz voltage 220/380 V.

Y motor AIR 160 M6 nominal rated revolution 1000 rpm

Dimension (height of shaft rotational axis): 160 mm; shaft diameter: 48 mm; Power: 15.0 kW; climatic category: UZ; IP: 54

The engine body of the engine made of cast iron.Casing of IPA and 80 dimensions of cast silumin alloy.

Voltage, V:220/380
Power kW:15.0
Vol./Min:1000
n, vol./Min:965
Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
Electric motor AIR 160 M6
22 045₴
Specifications
Common
Model
AIR 160 M6
Motor type
asynchronous
Kind
general purpose industrial motor
Motor series
AIR
Shaft diameter, mm
48
Voltage, V
220/380
Frequency of the current, Hz
50
Power kW
15.0
Vol./Min
1000
n, vol./Min
965
Climatic performance
UZ
Class of protection, IP
54
Efficiency, %
88,2
Power factor, cosφ
0,81
Weight, kg
155
Consumed nominal current, In (A)
33
Dimension (height of rotation axis), mm
160
Phase
3-phase
The ratio of max. torque to rated power, Mmax/Mn
2,2
The ratio of starting current to the nominal, Istart/In
6,5
The ratio of starting torque to rated power, Mstart/Mn
2
