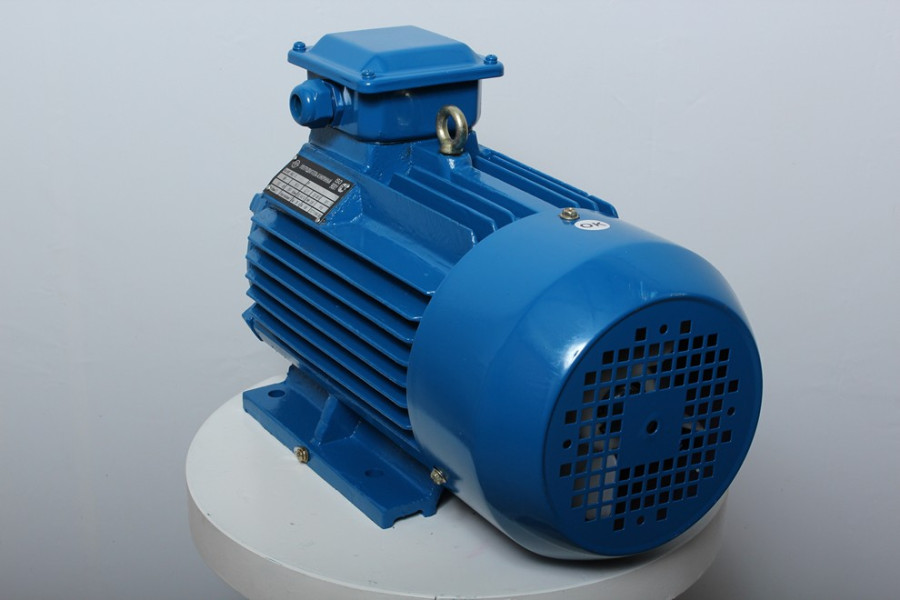

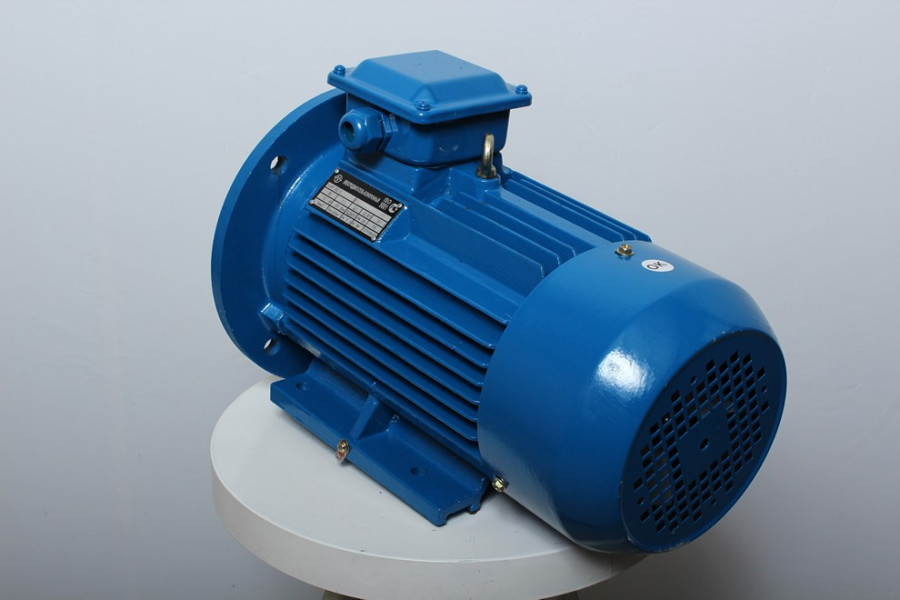

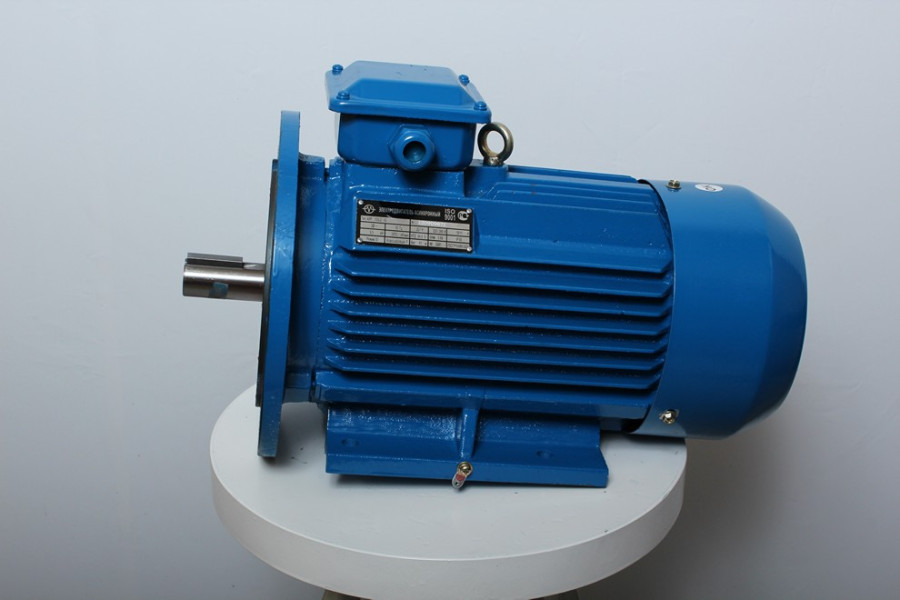

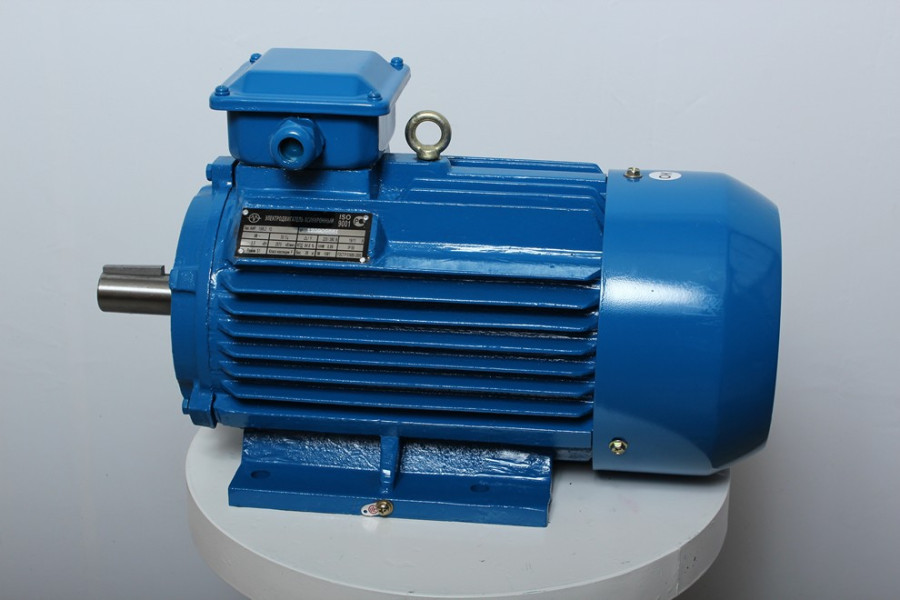

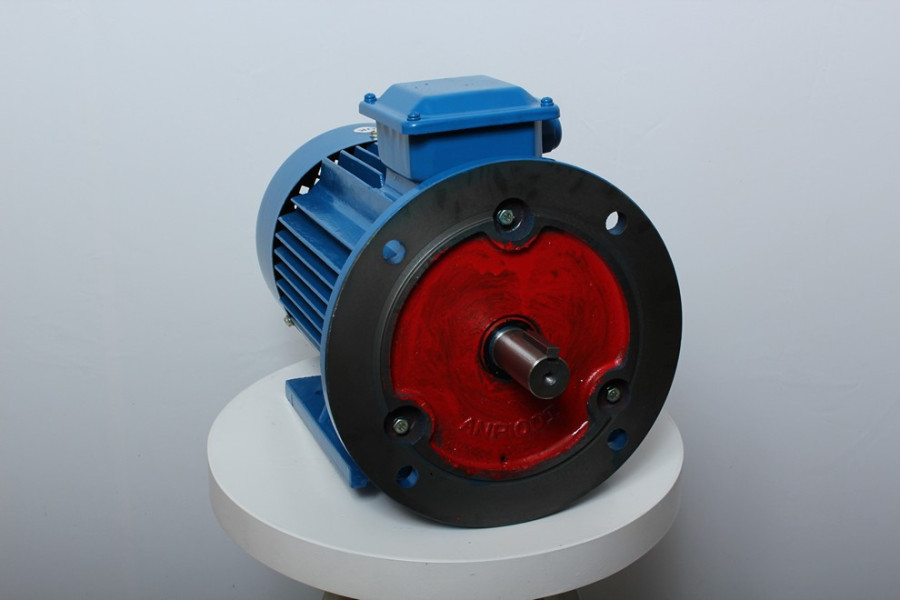

Electric motor AIR 100 L2

Three-phase asynchronous electric motor

Brand: Электродвигатели
0
All about product
Specification
Reviews 0
Questions0
In Stock
Product Code: ID2391
6 772₴
Found cheaper?

Electric motor AIR100L2 - general-purpose three-phase asynchronous motor with squirrel cage rotor designed for mains alternating current frequency operation 50 Hz voltage 220/380 V.

Y motor AIR100L2 nominal rated revolution 3000 rpm

Dimension (height of shaft rotational axis): 100 mm; shaft diameter: 28 mm; Power: 5.5 kW; climatic category: UZ; IP: 54

Motor housing made of silumin motor alloy. Casing of IPA envelope 80 is molded from gray iron.



Voltage, V:220/380
Power kW:5.5
Vol./Min:3000
n, vol./Min:2870
Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
Electric motor AIR 100 L2
6 772₴
Specifications
Common
Model
AIR100L2
Motor type
asynchronous
Kind
general purpose industrial motor
Motor series
AIR
Shaft diameter, mm
28
Voltage, V
220/380
Frequency of the current, Hz
50
Power kW
5.5
Vol./Min
3000
n, vol./Min
2870
Climatic performance
UZ
Class of protection, IP
54
Efficiency, %
84,8
Power factor, cosφ
0,89
Weight, kg
38
Consumed nominal current, In (A)
11
Dimension (height of rotation axis), mm
100
Phase
3-phase
The ratio of max. torque to rated power, Mmax/Mn
2,3
The ratio of starting current to the nominal, Istart/In
7,5
The ratio of starting torque to rated power, Mstart/Mn
2,2
