Electric motor AIMM 280 S8

Name: Electric motor AIMM 280 S8
Brand: Электродвигатели

Explosion-proof asynchronous three-phase electric motor

Brand: Электродвигатели

All about product

Specification

Dimensions

Reviews 0

Questions0

Popular

On order

Product Code: ID9690

negotiable

Asynchronous explosion proof motor AIMM 280 S8: Power: 55.0 kW; nominal rated revolution: 750 rpm; casing: cast iron; dimension (height of shaft rotational axis): 280 mm; shaft diameter: 80 mm; AC frequency 50 Hz voltage 380/660 V.

Voltage, V:380/660

Power kW:55.0

Vol./Min:750

Delivery

Nova Poshta

Delivery (saving 10% of the delivery cost)

Self-delivery

Electric motor AIMM 280 S8

Specifications

Common

Model

AIMM 280 S8

Motor type

asynchronous

Kind

explosion-proof

Motor series

AIMM

Shaft diameter, mm

Voltage, V

380/660

Frequency of the current, Hz

Power kW

55.0

Vol./Min

750

Climatic performance

Class of protection, IP

Efficiency, %

93,7

Power factor, cosφ

0,84

Weight, kg

760,0

Consumed nominal current, In (A)

109,0/63,0

Dimension (height of rotation axis), mm

280

Phase

3-phase

The ratio of max. torque to rated power, Mmax/Mn

2,3

The ratio of starting current to the nominal, Istart/In

6,5

The ratio of starting torque to rated power, Mstart/Mn

2,1

Motor model	Габаритные размеры, мм
Motor model	l1	l10	l'10	l20	l21	l30	l31	b1	b10	b31	h	h5	h31	d1	d10	d20	d22	d24	d25	d30	n	α	l11	b11
Electric motor AIMM 280 S8	170	368	419	6	22	1130	190	22	457	510	280	85	615	80	24	600	24	660	550	640	6	67⁰30'	500	560

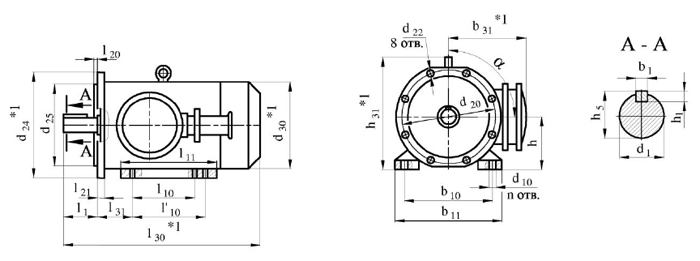

Motor dimensions scheme:

габаритные размеры Electric motor AIMM 280 S8
