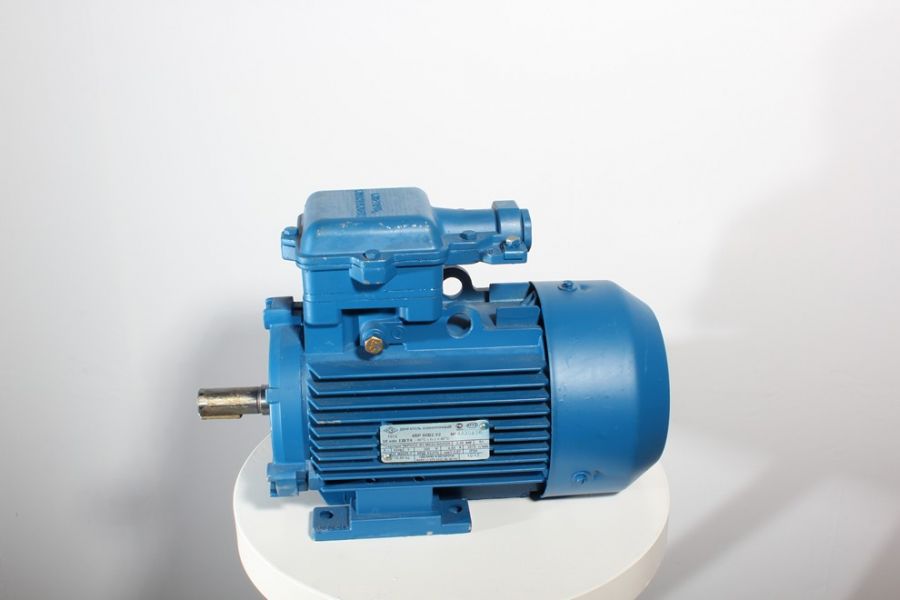

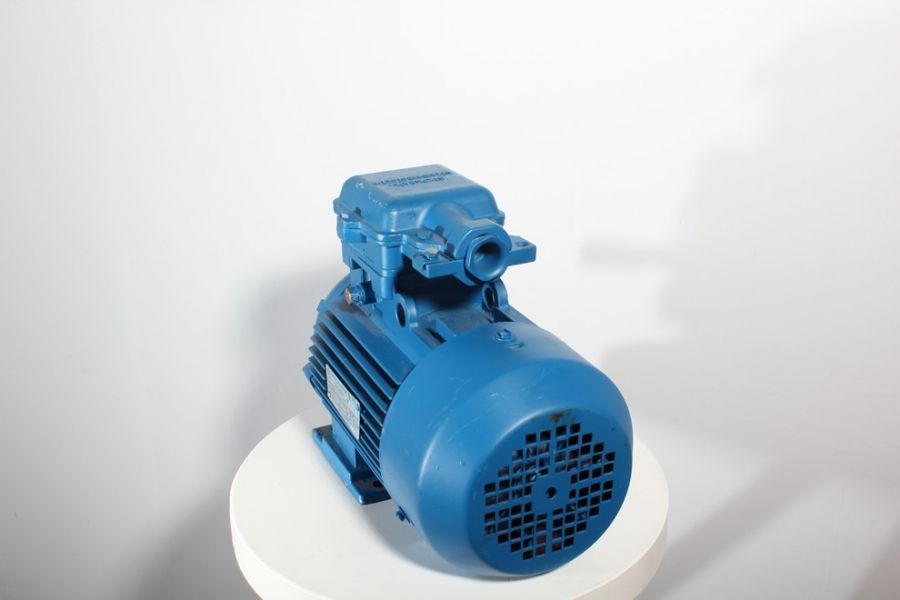

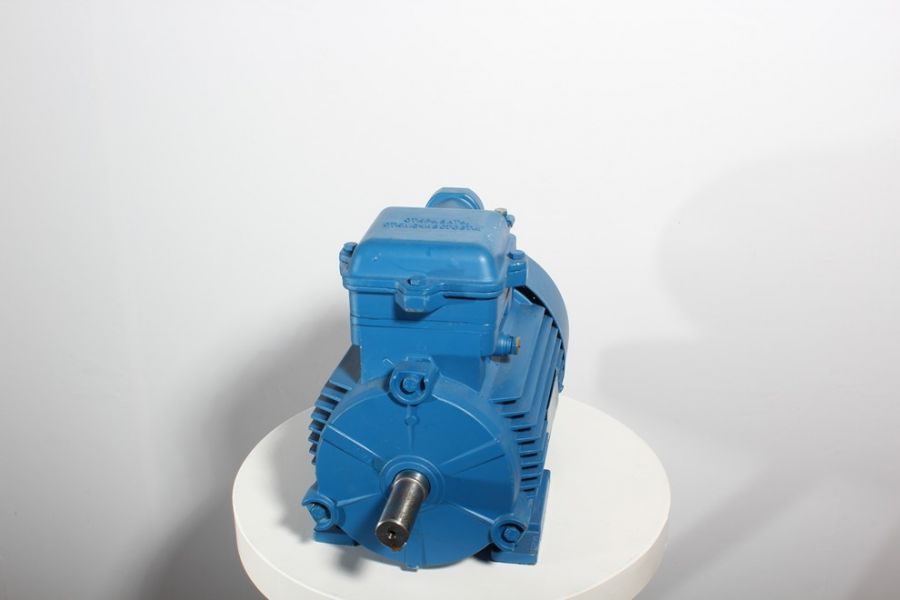

Electric motor 4VR 80 B2

Name: Electric motor 4VR 80 B2
Brand: Электродвигатели

Explosion-proof asynchronous three-phase electric motor

Brand: Электродвигатели

All about product

Specification

Reviews 0

Questions0

Popular

On order

Product Code: ID9263

negotiable

Asynchronous explosion proof motor 4VR 80 B2: Power: 2.2 kW; nominal rated revolution: 3000 rpm; casing: silumin alloy; dimension (height of shaft rotational axis): 80 mm; shaft diameter: 22 mm; AC frequency 50 Hz voltage 220/380 V.

Voltage, V:220/380

Power kW:2.2

Vol./Min:3000

n, vol./Min:2860

Delivery

Nova Poshta

Delivery (saving 10% of the delivery cost)

Self-delivery

Electric motor 4VR 80 B2

Specifications

Common

Model

4VR 80 B2

Motor type

asynchronous

Kind

explosion-proof

Motor series

4VR

Shaft diameter, mm

Voltage, V

220/380

Frequency of the current, Hz

Power kW

2.2

Vol./Min

3000

n, vol./Min

2860

Climatic performance

Class of protection, IP

Efficiency, %

83,0

Power factor, cosφ

0,85

Weight, kg

21,2

Consumed nominal current, In (A)

5,0

Dimension (height of rotation axis), mm

Phase

3-phase

The ratio of max. torque to rated power, Mmax/Mn

2,1

The ratio of starting current to the nominal, Istart/In

6,4

The ratio of starting torque to rated power, Mstart/Mn

2,6
