Electric motor 4VR 71 B6

Name: Electric motor 4VR 71 B6
Brand: Электродвигатели

Explosion-proof asynchronous three-phase electric motor

Brand: Электродвигатели

All about product

Specification

Reviews 0

Questions0

Popular

On order

Product Code: ID9261

negotiable

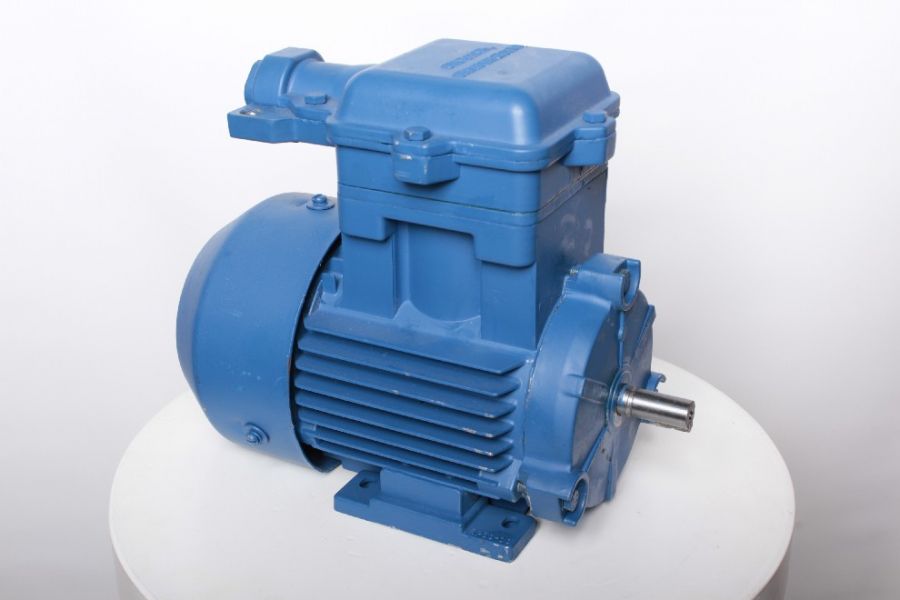

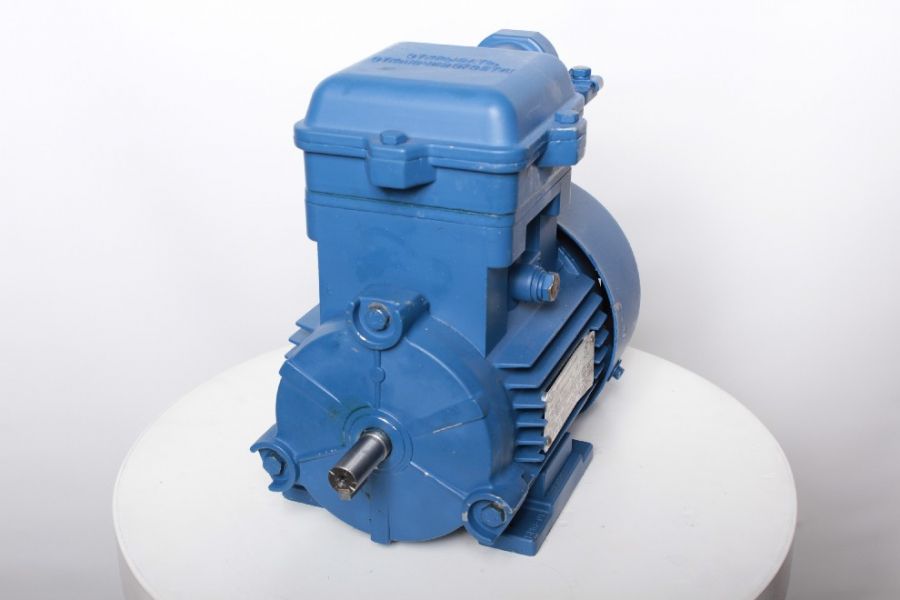

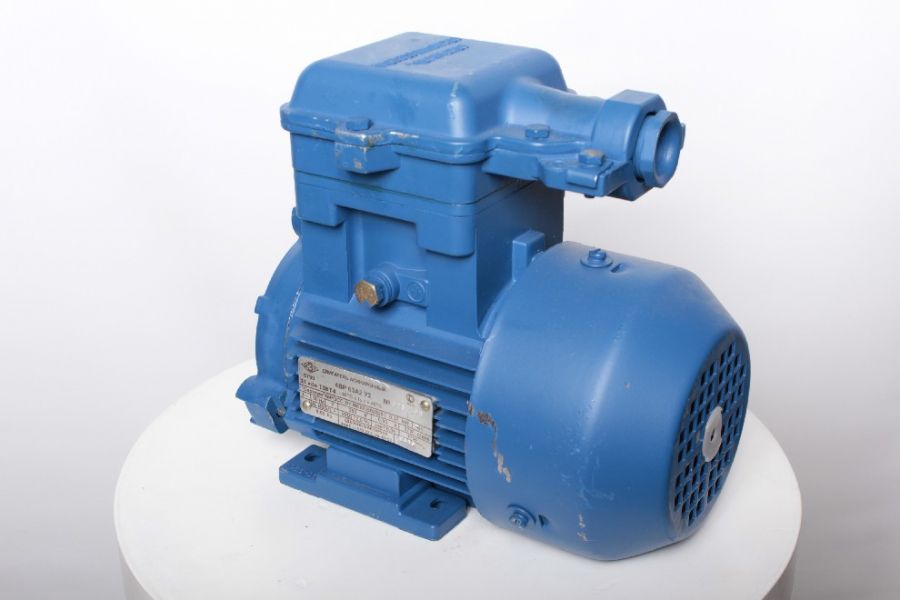

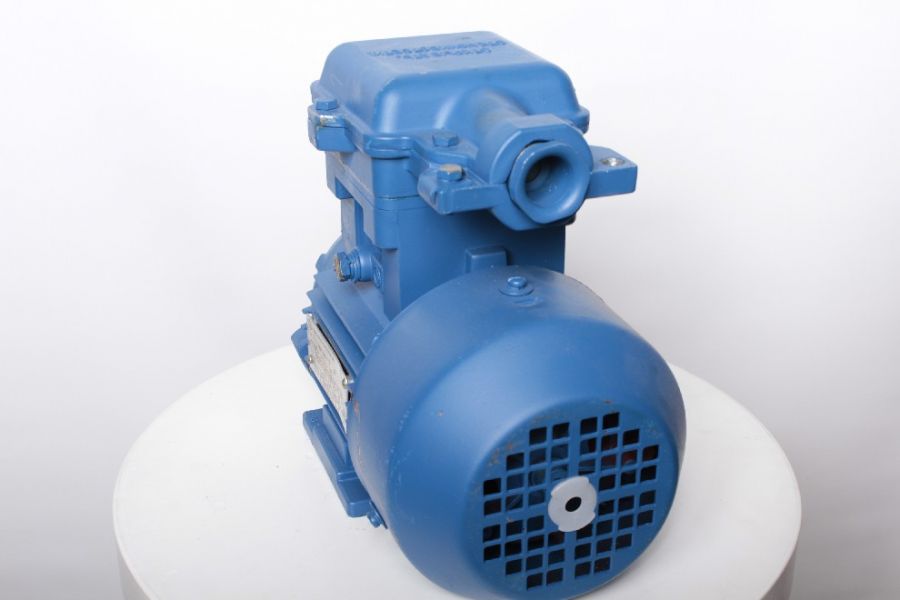

Asynchronous explosion proof motor 4VR 71 B6: Power: 0.55 kW; nominal rated revolution: 1000 rpm; casing: silumin alloy; dimension (height of shaft rotational axis): 71 mm; shaft diameter: 19 mm; AC frequency 50 Hz voltage 220/380 V.

Voltage, V:220/380

Power kW:0.55

Vol./Min:1000

n, vol./Min:920

Delivery

Nova Poshta

Delivery (saving 10% of the delivery cost)

Self-delivery

Electric motor 4VR 71 B6

Specifications

Common

Model

4VR 71 B6

Motor type

asynchronous

Kind

explosion-proof

Motor series

4VR

Shaft diameter, mm

Voltage, V

220/380

Frequency of the current, Hz

Power kW

0.55

Vol./Min

1000

n, vol./Min

920

Climatic performance

Class of protection, IP

Efficiency, %

69,0

Power factor, cosφ

0,7

Weight, kg

15,6

Consumed nominal current, In (A)

1,9

Dimension (height of rotation axis), mm

Phase

3-phase

The ratio of max. torque to rated power, Mmax/Mn

1,9

The ratio of starting current to the nominal, Istart/In

4,5

The ratio of starting torque to rated power, Mstart/Mn

2,2
