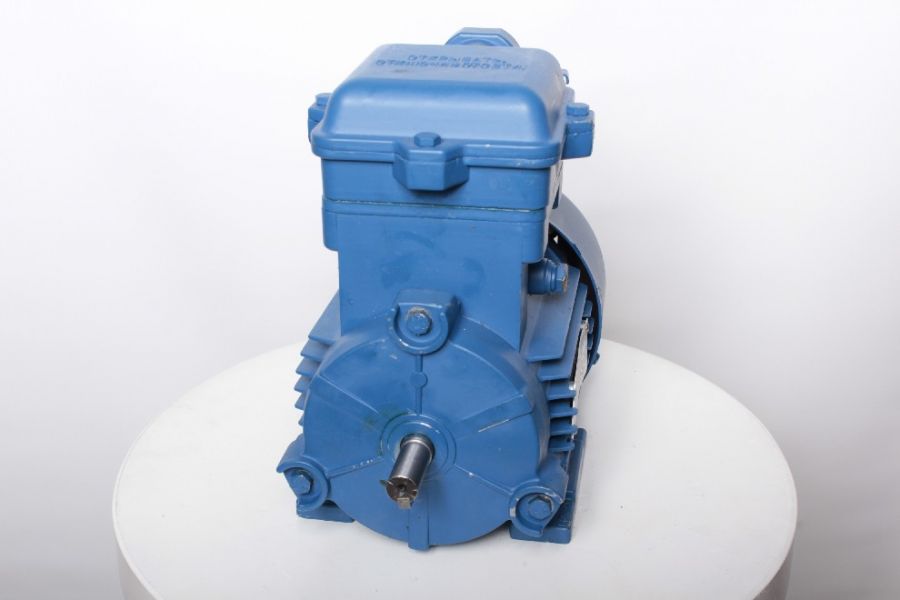

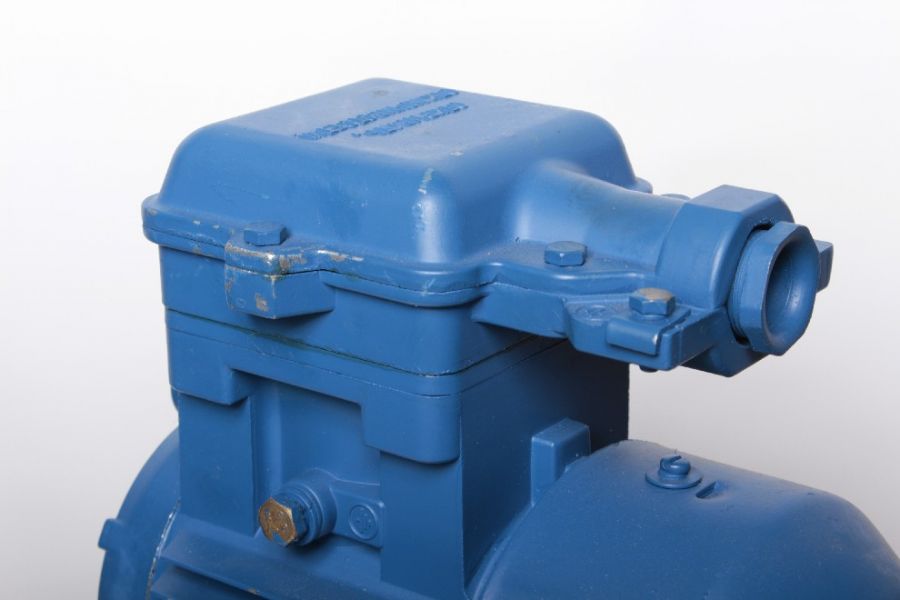

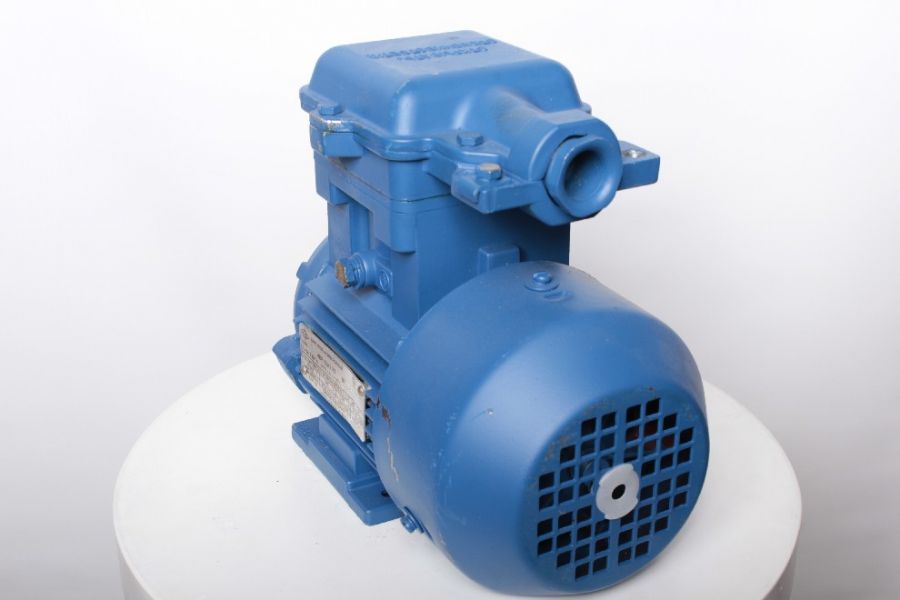

Electric motor 4VR 63 A2

Name: Electric motor 4VR 63 A2
Brand: Электродвигатели

Explosion-proof asynchronous three-phase electric motor

Brand: Электродвигатели

All about product

Specification

Dimensions

Reviews 0

Questions0

Popular

On order

Product Code: ID9253

negotiable

Asynchronous explosion proof motor 4VR 63 A2: Power: 0.37 kW; nominal rated revolution: 3000 rpm; casing: silumin alloy; dimension (height of shaft rotational axis): 63 mm; shaft diameter: 14 mm; AC frequency 50 Hz voltage 220/380 V.

Voltage, V:220/380

Power kW:0.37

Vol./Min:3000

n, vol./Min:2730

Delivery

Nova Poshta

Delivery (saving 10% of the delivery cost)

Self-delivery

Electric motor 4VR 63 A2

Specifications

Common

Model

4VR 63 A2

Motor type

asynchronous

Kind

explosion-proof

Motor series

4VR

Shaft diameter, mm

Voltage, V

220/380

Frequency of the current, Hz

Power kW

0.37

Vol./Min

3000

n, vol./Min

2730

Climatic performance

Class of protection, IP

Efficiency, %

72,0

Power factor, cosφ

0,81

Weight, kg

9,9

Consumed nominal current, In (A)

1,0

Dimension (height of rotation axis), mm

Phase

three-phase

The ratio of max. torque to rated power, Mmax/Mn

2,2

The ratio of starting current to the nominal, Istart/In

5,0

The ratio of starting torque to rated power, Mstart/Mn

2,2

Модель ел.двигуна	Габаритні розміри, мм
Модель ел.двигуна	L1	L10	L17	L20 (2081; 3081)	L21	L30	L31	L33	L39	b1	b10	b16	b30	h	h1	h5	h10	h31	d1	d20 (2081; 3081)	d22 (2081; 3081)	d24 (2081; 3081)	d25 (2081; 3081)
Electric motor 4VR 63 A2	30	80	7	3,5	10	237	40	263	0	5	100	10	135	63	5	16	8	161	14	130	10	160	110

Схеми габаритних розмірів при різних монтажних виконаннях електродвигуна:

Габаритні розміри Electric motor 4VR 63 A2

Монтажне виконання 1081

Габаритні розміри Electric motor 4VR 63 A2

Монтажне виконання 2081 (3081)
