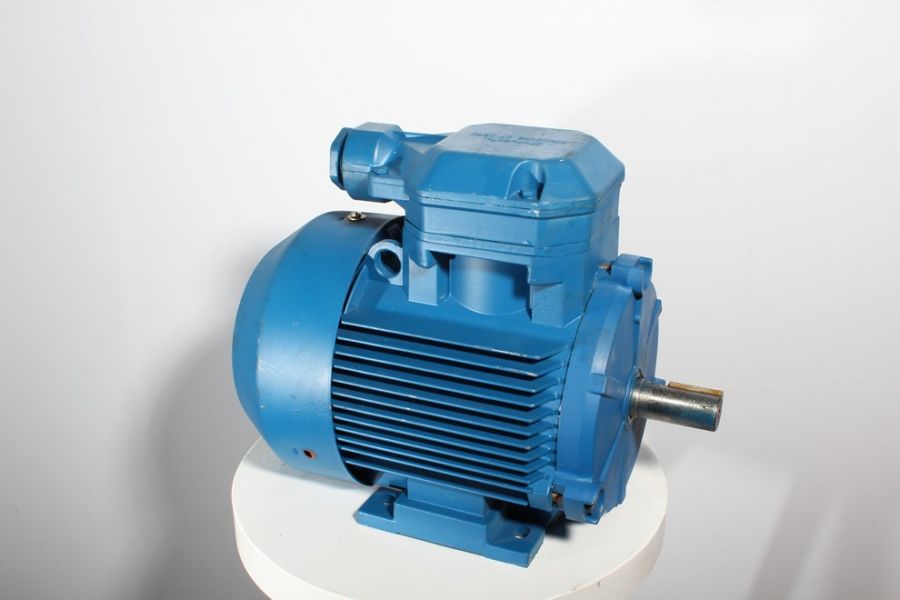

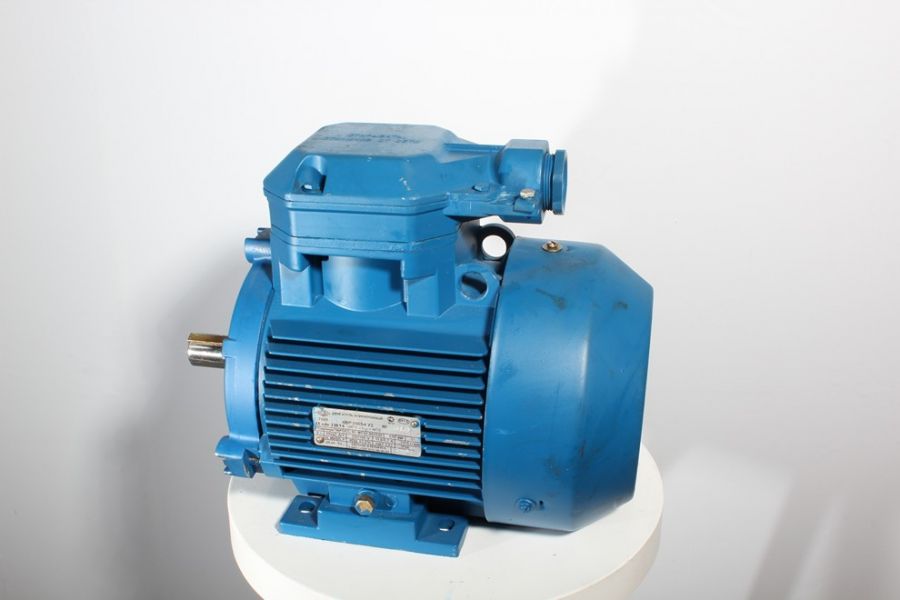

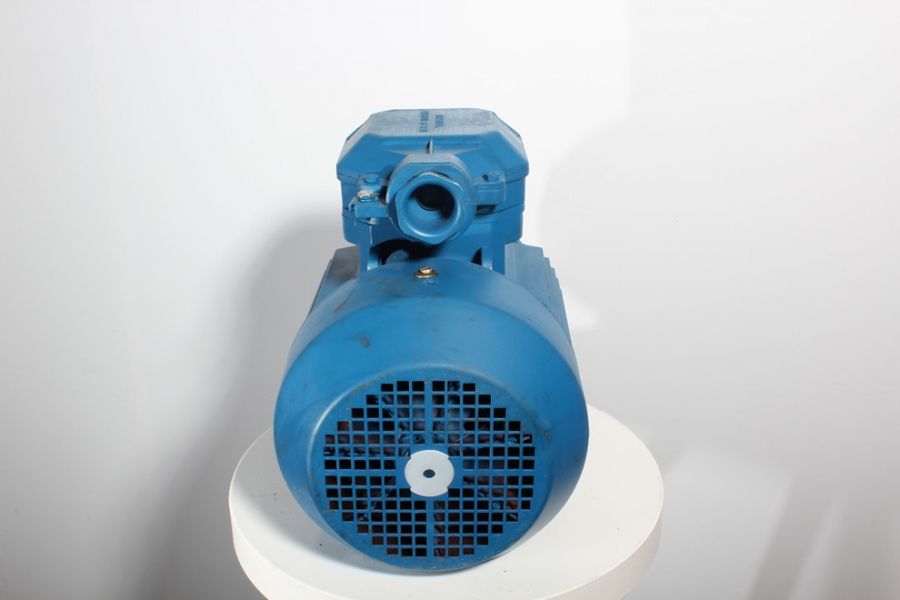

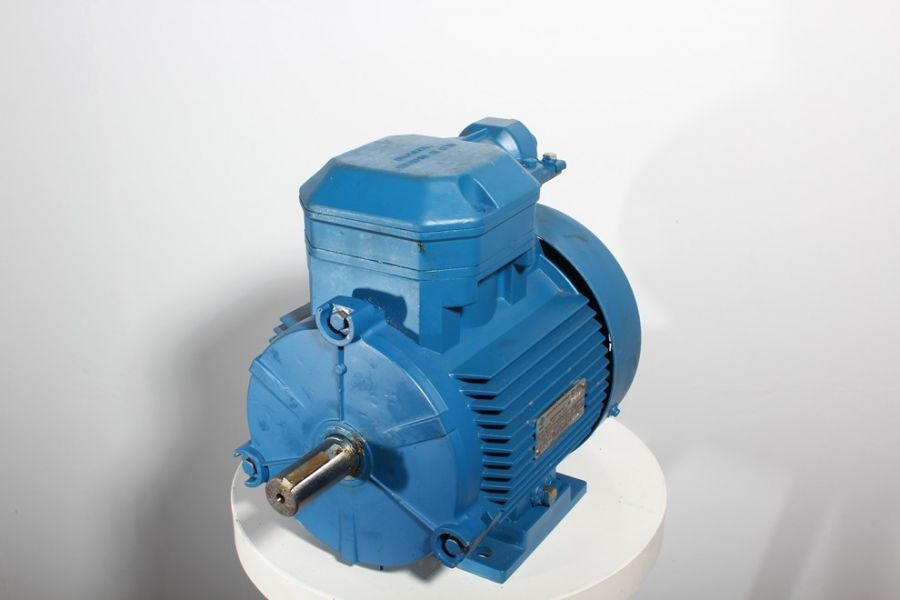

Electric motor 4VR 132 S8

Name: Electric motor 4VR 132 S8
Brand: Электродвигатели

Explosion-proof asynchronous three-phase electric motor

Brand: Электродвигатели

All about product

Specification

Reviews 0

Questions0

Popular

On order

Product Code: ID9288

negotiable

Asynchronous explosion proof motor 4VR 132 S8: Power: 4.0 kW; nominal rated revolution: 750 rpm; casing: silumin alloy; dimension (height of shaft rotational axis): 132 mm; shaft diameter: 38 mm; AC frequency 50 Hz voltage 220/380 V.

Voltage, V:220/380

Power kW:4.0

Vol./Min:750

n, vol./Min:700

Delivery

Nova Poshta

Delivery (saving 10% of the delivery cost)

Self-delivery

Electric motor 4VR 132 S8

Specifications

Common

Model

4VR 132 S8

Motor type

asynchronous

Kind

explosion-proof

Motor series

4VR

Shaft diameter, mm

Voltage, V

220/380

Frequency of the current, Hz

Power kW

4.0

Vol./Min

750

n, vol./Min

700

Climatic performance

Class of protection, IP

Efficiency, %

83,0

Power factor, cosφ

0,78

Weight, kg

87,2

Consumed nominal current, In (A)

11,0

Dimension (height of rotation axis), mm

132

Phase

3-phase

The ratio of max. torque to rated power, Mmax/Mn

1,8

The ratio of starting current to the nominal, Istart/In

6,0

The ratio of starting torque to rated power, Mstart/Mn

2,2
