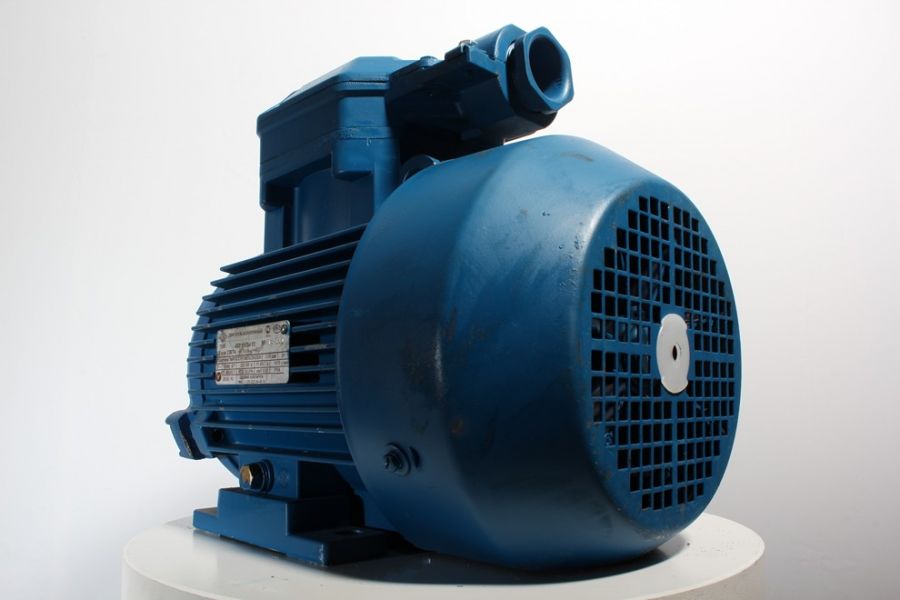

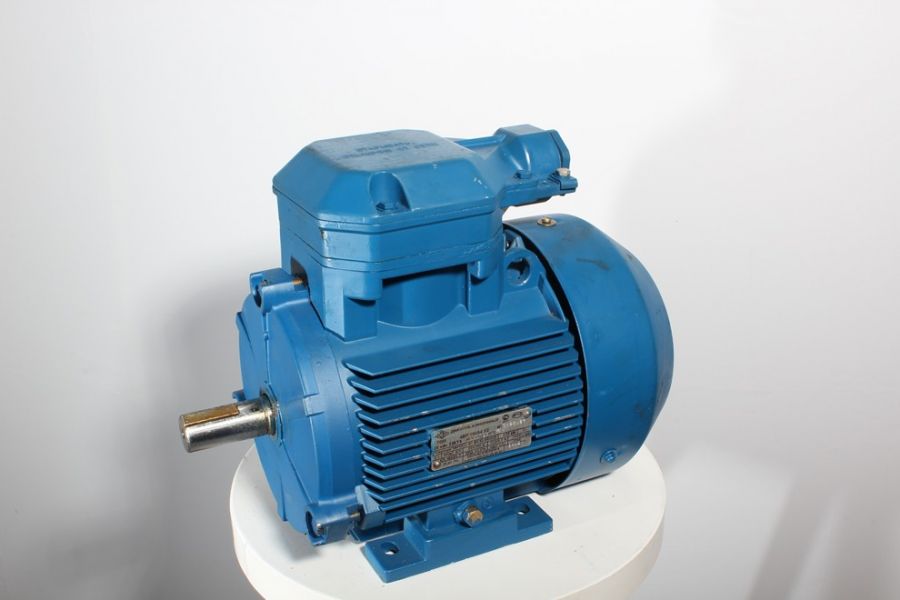

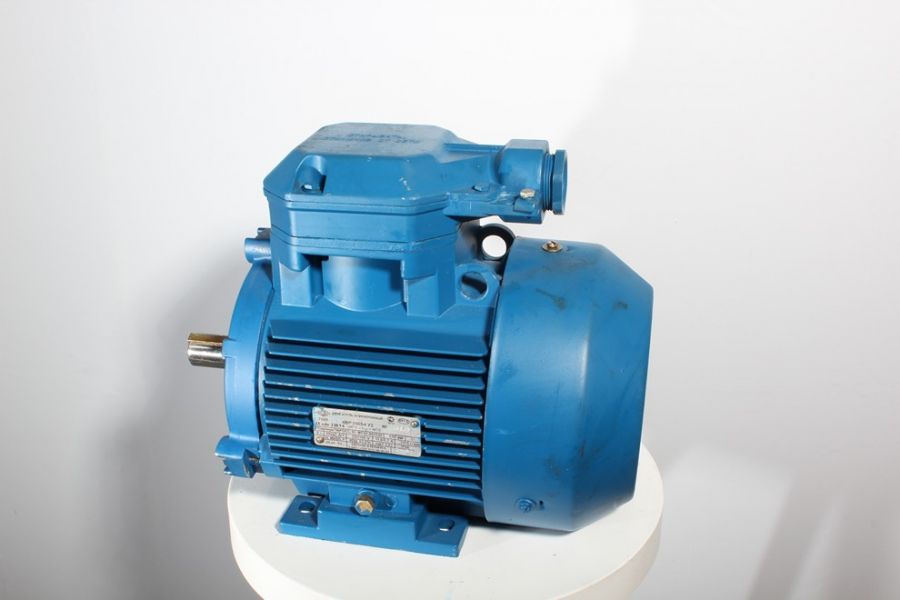

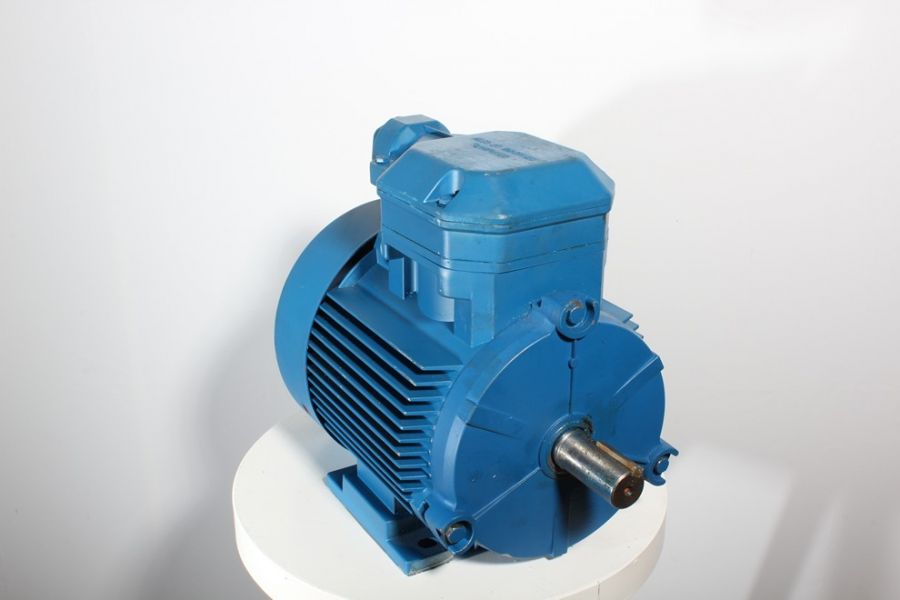

Electric motor 4VR 132 M2

Name: Electric motor 4VR 132 M2
Brand: Электродвигатели

Explosion-proof asynchronous three-phase electric motor

Brand: Электродвигатели

All about product

Specification

Reviews 0

Questions0

Popular

On order

Product Code: ID9282

negotiable

Asynchronous explosion proof motor 4VR 132 M2: Power: 11.0 kW; nominal rated revolution: 3000 rpm; casing: silumin alloy; dimension (height of shaft rotational axis): 132 mm; shaft diameter: 38 mm; AC frequency 50 Hz voltage 220/380 V.

Voltage, V:220/380

Power kW:11.0

Vol./Min:3000

n, vol./Min:2910

Delivery

Nova Poshta

Delivery (saving 10% of the delivery cost)

Self-delivery

Electric motor 4VR 132 M2

Specifications

Common

Model

4VR 132 M2

Motor type

asynchronous

Kind

explosion-proof

Motor series

4VR

Shaft diameter, mm

Voltage, V

220/380

Frequency of the current, Hz

Power kW

11.0

Vol./Min

3000

n, vol./Min

2910

Climatic performance

Class of protection, IP

Efficiency, %

87,5

Power factor, cosφ

0,90

Weight, kg

87,2

Consumed nominal current, In (A)

21,8

Dimension (height of rotation axis), mm

132

Phase

3-phase

The ratio of max. torque to rated power, Mmax/Mn

1,6

The ratio of starting current to the nominal, Istart/In

7,5

The ratio of starting torque to rated power, Mstart/Mn

2,2
