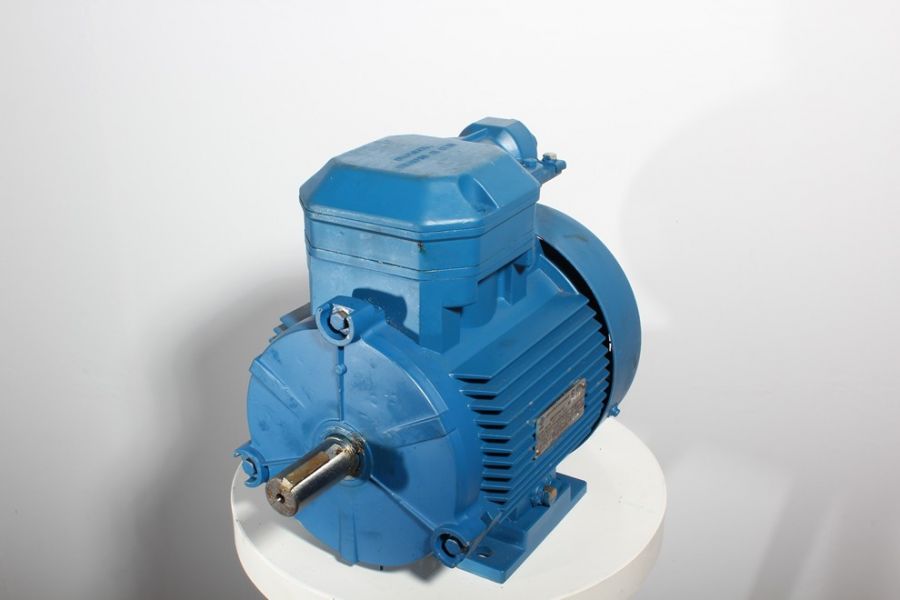

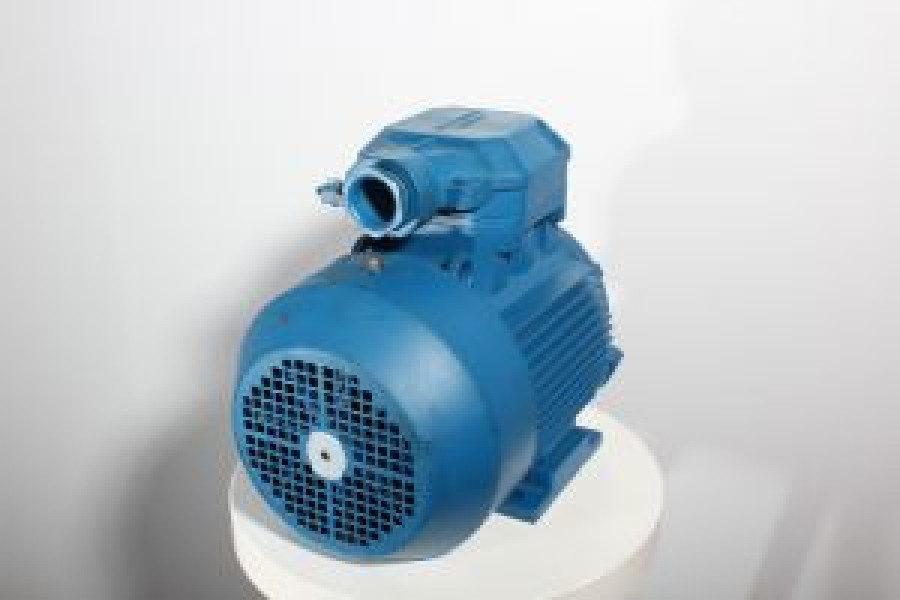

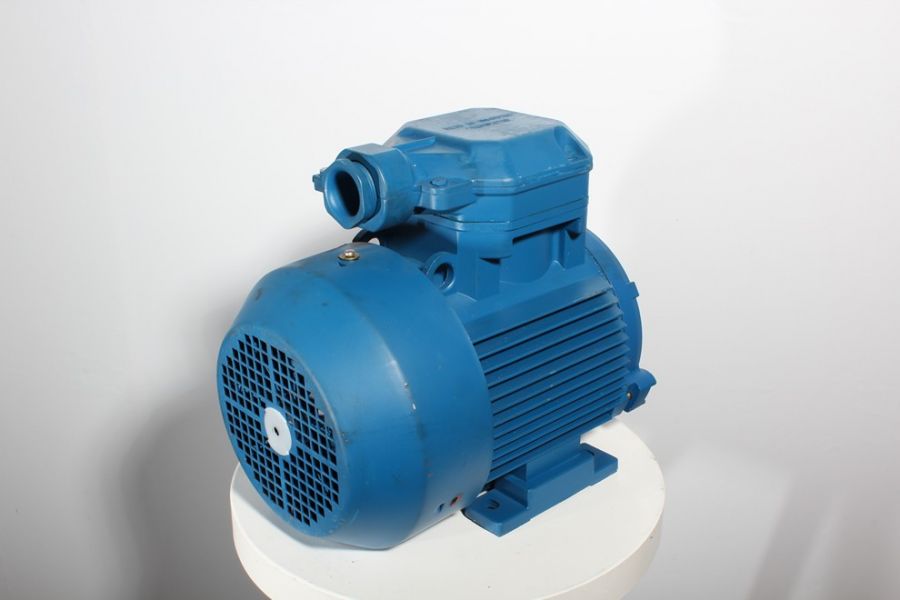

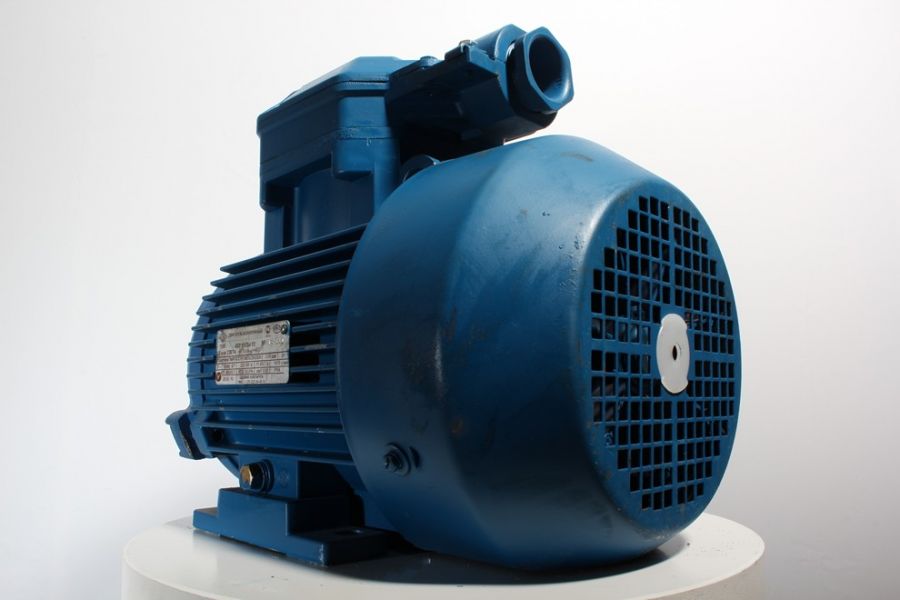

Electric motor 4VR 100 S4

Name: Electric motor 4VR 100 S4
Brand: Электродвигатели

Explosion-proof asynchronous three-phase electric motor

Brand: Электродвигатели

All about product

Specification

Reviews 0

Questions0

Popular

On order

Product Code: ID9274

negotiable

Asynchronous explosion proof motor 4VR 100 S4: Power: 3.0 kW; nominal rated revolution: 1500 rpm; casing: silumin alloy; dimension (height of shaft rotational axis): 100 mm; shaft diameter: 28 mm; AC frequency 50 Hz voltage 220/380 V.

Voltage, V:220/380

Power kW:3.0

Vol./Min:1500

n, vol./Min:1410

Delivery

Nova Poshta

Delivery (saving 10% of the delivery cost)

Self-delivery

Electric motor 4VR 100 S4

Specifications

Common

Model

4VR 100 S4

Motor type

asynchronous

Kind

explosion-proof

Motor series

4VR

Shaft diameter, mm

Voltage, V

220/380

Frequency of the current, Hz

Power kW

3.0

Vol./Min

1500

n, vol./Min

1410

Climatic performance

Class of protection, IP

Efficiency, %

82,0

Power factor, cosφ

0,82

Weight, kg

32,6

Consumed nominal current, In (A)

7,2

Dimension (height of rotation axis), mm

100

Phase

3-phase

The ratio of max. torque to rated power, Mmax/Mn

2,0

The ratio of starting current to the nominal, Istart/In

7,0

The ratio of starting torque to rated power, Mstart/Mn

2,2
