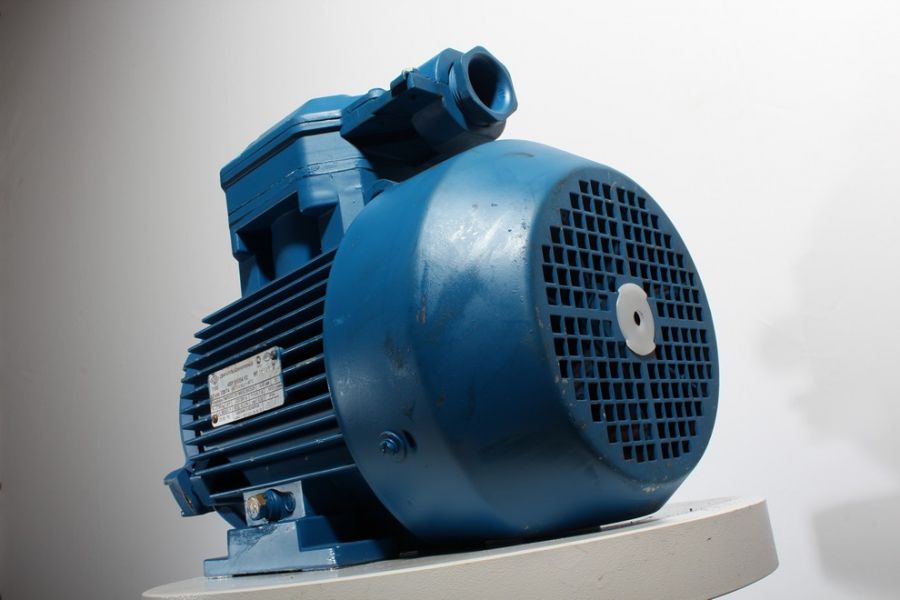

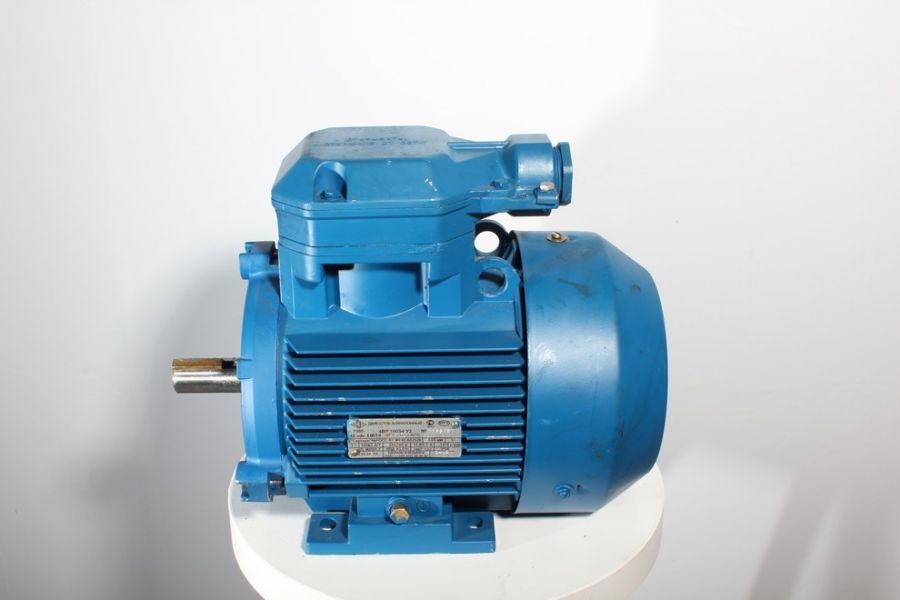

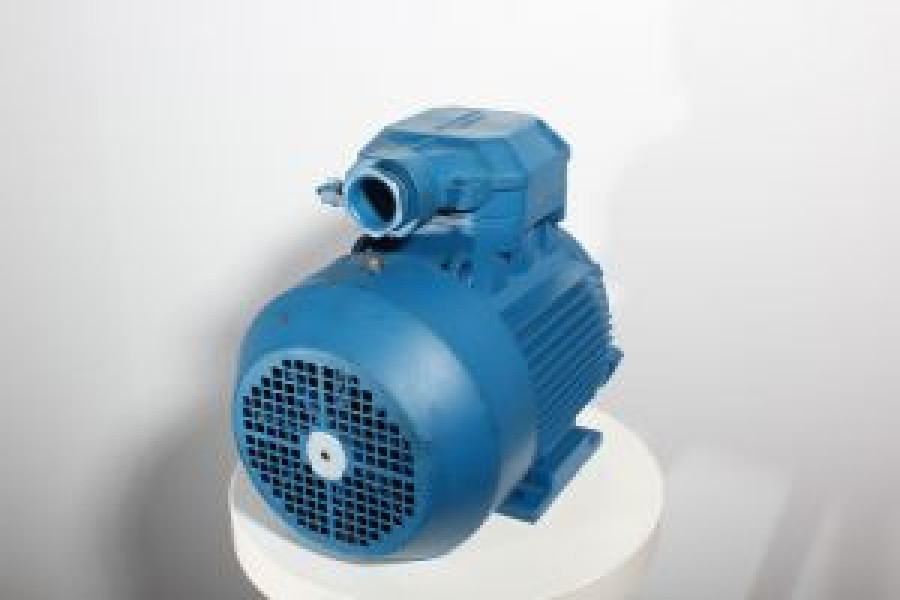

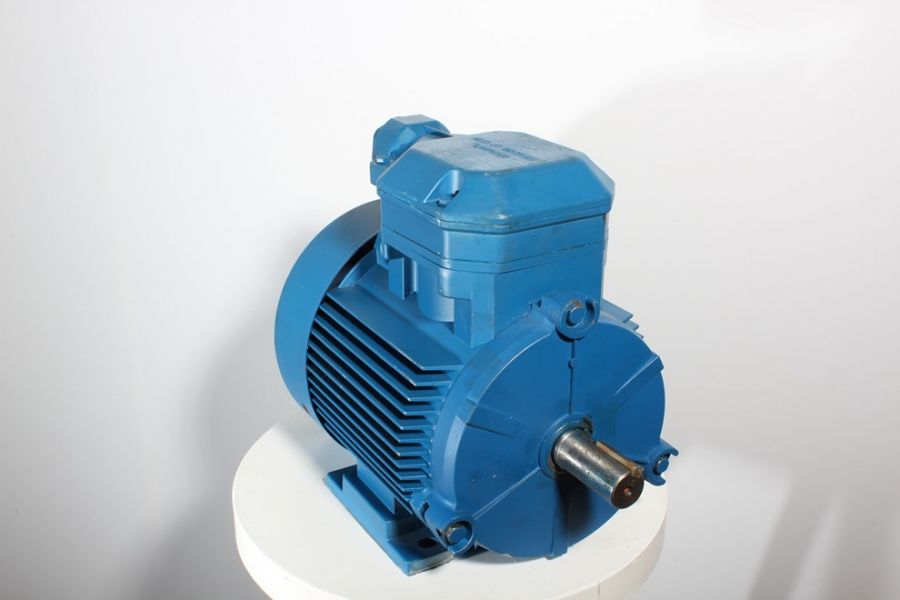

Explosion-proof asynchronous three-phase electric motor Electric motor 4VR S2 100

Brand: Электродвигатели
0
All about product
Specification
Reviews 0
Popular
Electric motor 4VR S2 100
Electric motor 4VR S2 100
Electric motor 4VR S2 100
Electric motor 4VR S2 100
Electric motor 4VR S2 100
Electric motor 4VR S2 100
Electric motor 4VR S2 100
Electric motor 4VR S2 100

Pre-order
Product Code: ID9272
negotiable

Asynchronous explosion proof motor 4VR 100 S2: Power: 4.0 kW; nominal rated revolution: 3000 rpm; casing: silumin alloy; dimension (height of shaft rotational axis): 100 mm; shaft diameter: 28 mm; AC frequency 50 Hz voltage 220/380 V.

Voltage, V:220/380
Power kW:4.0
Vol./Min:3000
n, vol./Min:2850
Whatsapp
Telegram
Viber
Messenger
+38 (044) 238-24-81
+38 (067) 567-28-89
Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
SAT SAT
Self-delivery Self-delivery
Оплата
Payment Methods
We operate via bank transfer, ensuring full transparency and official documentation for every transaction.
How to Pay
Immediately after placing an order, a KVZ manager will send you a proforma invoice.
For legal entities and Individual Entrepreneurs: from your company's current account.
For individuals: via any banking application using bank details (IBAN).
Individual Terms
We value our partners and are ready to discuss personal payment options for cases requiring a special approach. Contact us to find the best solution.
Каталог
Electric motor 4VR S2 100
Specifications
Common
Model
4VR 100 S2
Motor type
asynchronous
Kind
explosion-proof
Motor series
4VR
Shaft diameter, mm
28
Voltage, V
220/380
Frequency of the current, Hz
50
Power kW
4.0
Vol./Min
3000
n, vol./Min
2850
Climatic performance
UZ
Class of protection, IP
54
Efficiency, %
87,0
Power factor, cosφ
0,88
Weight, kg
32,6
Consumed nominal current, In (A)
8,4
Dimension (height of rotation axis), mm
100
Phase
3-phase
The ratio of max. torque to rated power, Mmax/Mn
2,0
The ratio of starting current to the nominal, Istart/In
7,5
The ratio of starting torque to rated power, Mstart/Mn
2,4
