Dx2 18x2 w/motor AOD 630 kW 750 rpm

Exhauster

Brand: КВЗ
0
All about product
Description
Specification
Technical Specifications
Aerodynamic Characteristics
Reviews 0
Questions0
On order
Product Code: ID14535
negotiable

Exhauster series Dx2 18x2 with electric motor Electric motor AOD-630/400-8/10U1 630/400* 750/600 Vol./Min, made of carbon steel. Fan working point: 172600 m3/hour at a pressure of 4130 Pa.

Productivity, м³/h:172600
Pressure, Pa:4130
Vol./Min:730
n, vol./Min:750
Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
Dx2 18x2 w/motor AOD 630 kW 750 rpm
Description

Smoke exhauster of the Dx2 18x2 series with electric motor Electric motor AOD-630/400-8/10U1 630/400* Power kW 750/600 Vol./Min, manufactured from carbon steel.

Purpose of Dx2 18x2 w/motor AOD 630 kW 750 rpm smoke exhausters:

Dx2 smoke exhausters are designed for removing flue gases from the furnaces of boiler units equipped with effective ash collection systems, as well as for extracting flue gases from gas-oil-fired boiler units.

The exhausters are designed for continuous operation both indoors and outdoors in temperate climates. The maximum temperature of flue gases at the inlet of the smoke exhauster is not higher than 200°C. The temperature in the scroll is not lower than -30°C. Dust concentration of the flue gases is not higher than 2 g/m³.

General information about the Dx2 18x2 smoke exhausters

  • Double-sided suction
  • Spiral rotary housing
  • Forward-curved blades
  • Number of blades: 32
  • Rotation direction — right and left

The Dx2 18x2 smoke exhauster is used in:

  • Thermal power engineering
  • Gas-oil-fired boilers
  • Steam and hot-water boilers
  • Other sanitary and industrial purposes

Diagram of spiral housing rotations and pockets of Dx2 18x2 w/motor AOD 630 kW 750 rpm smoke exhausters:

Rotation of the smoke extractor housing Dx2 18x2 rigth
Rotation of the smoke extractor housing Dx2 18x2 left
Specifications
Common
Model
Dx2 18x2
Motor type
AOD
Productivity, м³/h
172600
Pressure, Pa
4130
Vol./Min
730
n, vol./Min
750
Max. transported air temperature, °C
200
Weight, kg
13210
Min. transported air temperature, °C
-30
Electric motor AOD-630/400-8/10U1
Common
Model
AOD-630/400-8/10U1
Motor type
asynchronous
Motor series
AOD
Shaft diameter, mm
130
Voltage, V
6000
Power kW
630/400*
Vol./Min
750/600
Climatic performance
U1
Class of protection, IP
44/54
Efficiency, %
92,3/91,8
Power factor, cosφ
0,85/0,77
Weight, kg
11900
S1
10,9
Acceptable levels of dust inlet, mg/m3
10
Consumed nominal current, In (A)
77/54,5
Cooling capacity, kW
1SAO1A61
Design scheme
М6
Installation design
IM1101
Rated slip, %
0,79/0,66
Temperature of the conveyed medium, °C
+40/-45
The ratio of max. torque to rated power, Mmax/Mn
2,6/3
The ratio of starting current to the nominal, Istart/In
6,5/7
The ratio of starting torque to rated power, Mstart/Mn
1/1,1

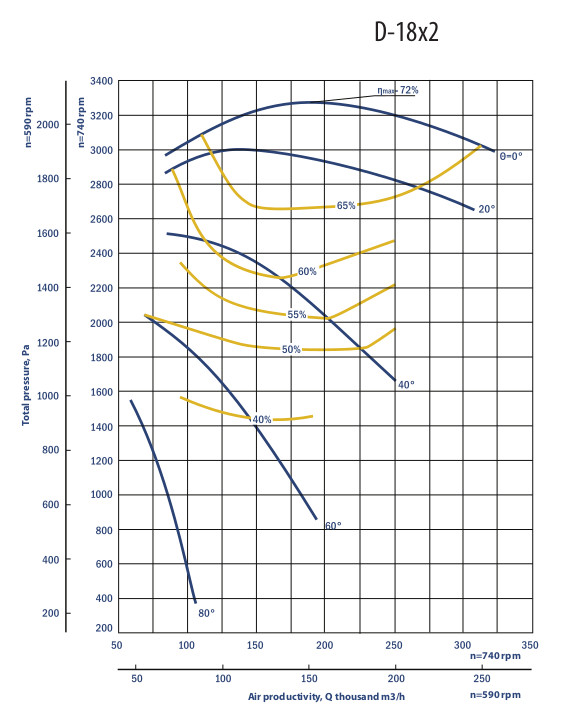

Aerodynamic characteristics of Dx2 18x2 w/motor AOD 630 kW 750 rpm

Overall dimensions of the Dx2 18x2 w/motor AOD 630 kW 750 rpm smoke extractor
