DOD-43GM

Smoke exhaust

Brand: КВЗ
0
All about product
Description
Specification
Aerodynamic Characteristics
Dimensions
Reviews 0
Questions0
Popular
DOD-43GM
On order
Product Code: ID16666
negotiable

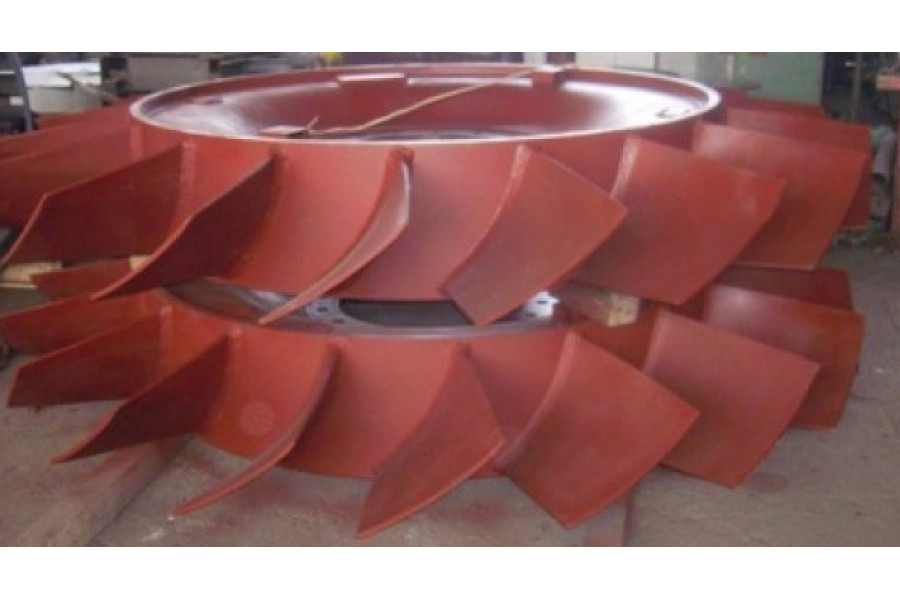

Two-stage axial exhauster DOD-43GM. Engine power: 3150 kW; Engine speed: 375 rpm; Performance: 1335000 m 3/hour; Total pressure: 3491 Pa.

Power kW:3150
Vol./Min:375
Produc­tivity, m³/h:1335000
Ultimate pressure, Pa:3491
Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
DOD-43GM
Description

Purpose of Smoke Exhausters DOD-43GM

Axial two-stage smoke exhausters DOD-43GM are designed for the removal of flue gases from the furnaces of stationary steam boilers with a steam capacity of 640–2650 t/h for power units of 200, 300, 500, and 800 MW, with residual dust content in the flue gases not exceeding 0.5 g/m3.

Smoke exhausters DOD-43GM are manufactured only with left-hand rotation, meaning their impellers rotate counterclockwise when viewed from the drive side.

Operating Conditions of Smoke Exhausters DOD-43GM

In smoke exhausters DOD-43GM, the maximum allowable temperature of the transported flue gases at the fan inlet must not exceed 200 °C.

Suction Pocket Rotation Scheme of Smoke Exhausters DOD-43GM (viewed from the drive side)

a) - left-hand exhauster, b) - right-hand exhauster.

Suction pocket rotation scheme of smoke exhausters DOD-43GM

Specifications
Common
Model
DOD-43GM
Power kW
3150
Vol./Min
375
Max. transported air temperature, °C
200
Weight, kg
95500
Maximum efficiency, ηmax (%)
82,5
Produc­tivity, m³/h
1335000
Ultimate pressure, Pa
3491

Aerodynamic characteristics of DOD-43GM

Overall dimensions of the fan DOD-43GM

ModelInlet pocket rotation angleOverall dimensions, mm
aa1bb1BDdEFHLL1
DOD-43GM452134226056605786252028503705387023866405108228353
