Exhauster DNx2 24x2 w/motor AOD 800 kW 750 rpm

Name: DNx2 24x2 w/motor AOD 800 kW 750 rpm
Brand: КВЗ

Brand: КВЗ

All about product

Description

Specification

Technical Specifications

Aerodynamic Characteristics

Reviews 0

Popular

Pre-order

Product Code: ID14546

negotiable

Exhauster series DNx2 24x2 with electric motor Electric motor AOD-800/400-8/10U1 800/400 750/600 Vol./Min, made of carbon steel. Fan working point: 362400 m³/hour at a pressure of 3920 Pa.

Equipped with a backward-curved blade impeller for increased efficiency, reduced noise, and energy savings.

Productivity, м³/h:362400

Pressure, Pa:3920

Delivery

Nova Poshta

Delivery (saving 10% of the delivery cost)

SAT

Self-delivery

Оплата

Payment Methods

We operate via bank transfer, ensuring full transparency and official documentation for every transaction.

How to Pay

Immediately after placing an order, a KVZ manager will send you a proforma invoice.

For legal entities and Individual Entrepreneurs: from your company's current account.

For individuals: via any banking application using bank details (IBAN).

Individual Terms

We value our partners and are ready to discuss personal payment options for cases requiring a special approach. Contact us to find the best solution.

Каталог

DNx2 24x2 w/motor AOD 800 kW 750 rpm

Description

Smoke exhauster series DNx2 24x2 with electric motor Electric motor AOD-800/400-8/10U1 800/400 Power kW 750/600 Vol./Min, carbon steel.

Application of DNx2 24x2 w/motor AOD 800 kW 750 rpm smoke exhausters

DNx2 type smoke exhausters are designed to remove flue gases from the furnaces of:

boilers equipped with effective ash collection systems;
gas-oil fired boilers.

The equipment is suitable for continuous operation both indoors and outdoors (temperate climate).

Operational limits:

Max inlet gas temperature: +200 °C.
Min casing (scroll) temperature: -30 °C.
Permissible gas dust content: up to 2 g/m³.

Features of DNx2 24x2 exhausters

Suction type: double inlet.
Casing: spiral, rotatable.
Impeller: backward-curved blades (16 pcs).
Rotation direction: right or left (optional).

Areas of application for DNx2 24x2:

Thermal power engineering.
Boiler plants (gas-oil, steam, and hot water boilers).
Sanitary and industrial purposes.

Specifications

Common

Model

DNx2 24x2

Motor type

AOD

Productivity, м³/h

362400

Pressure, Pa

3920

Max. transported air temperature, °C

200

Weight, kg

27040

Min. transported air temperature, °C

-30

Electric motor AOD-800/400-8/10U1

Common

Model

AOD-800/400-8/10U1

Motor type

asynchronous

Motor series

AOD

Shaft diameter, mm

130

Voltage, V

6000

Power kW

800/400

Vol./Min

750/600

Climatic performance

Class of protection, IP

44/54

Efficiency, %

93,1/92,3

Power factor, cosφ

0,86/0,80

Weight, kg

12900

10,9

Acceptable levels of dust inlet, mg/m3

Consumed nominal current, In (A)

96/52

Cooling capacity, kW

1SAO1A61

Design scheme

М6

Installation design

IM1101

Rated slip, %

0,79/0,72

Temperature of the conveyed medium, °C

+40/-45

The ratio of max. torque to rated power, Mmax/Mn

2,8/3

The ratio of starting current to the nominal, Istart/In

6,5/6,7

The ratio of starting torque to rated power, Mstart/Mn

1/1,1

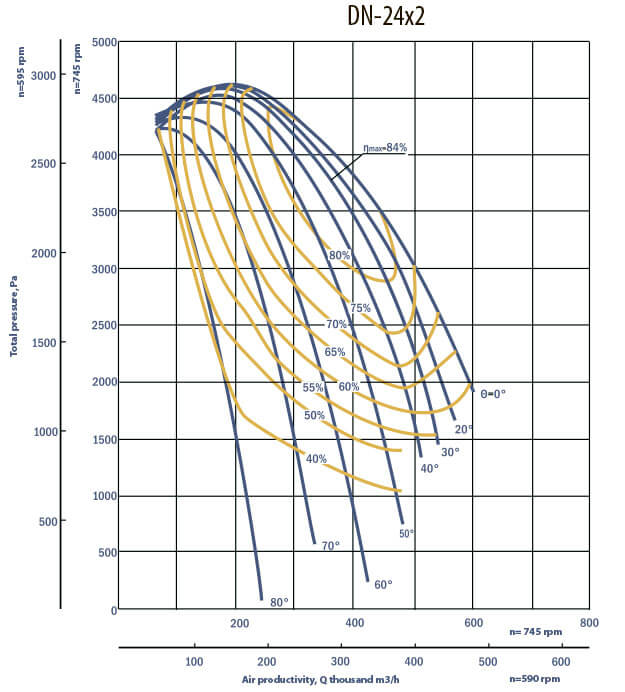

Aerodynamic characteristics of DNx2 24x2 w/motor AOD 800 kW 750 rpm

Overall dimensions of the fan DNx2 24x2 w/motor AOD 800 kW 750 rpm
