Exhauster DNx2 22x2 w/motor DAZO 250kW 600 rpm

Name: DNx2 22x2 w/motor DAZO 250kW 600 rpm
Brand: КВЗ

Brand: КВЗ

All about product

Description

Specification

Technical Specifications

Aerodynamic Characteristics

Reviews 0

Popular

Pre-order

Product Code: ID14226

negotiable

Exhauster series DNx2 22x2 with electric motor Electric motor DAZO4-450Y-10MT2 250 600 Vol./Min, made of carbon steel. Fan working point: 229800 m³/hour at a pressure of 2110 Pa.

Equipped with a backward-curved blade impeller for increased efficiency, reduced noise, and energy savings.

Productivity, м³/h:229800

Pressure, Pa:2110

Delivery

Nova Poshta

Delivery (saving 10% of the delivery cost)

SAT

Self-delivery

Оплата

Payment Methods

We operate via bank transfer, ensuring full transparency and official documentation for every transaction.

How to Pay

Immediately after placing an order, a KVZ manager will send you a proforma invoice.

For legal entities and Individual Entrepreneurs: from your company's current account.

For individuals: via any banking application using bank details (IBAN).

Individual Terms

We value our partners and are ready to discuss personal payment options for cases requiring a special approach. Contact us to find the best solution.

Каталог

DNx2 22x2 w/motor DAZO 250kW 600 rpm

Description

Smoke exhauster series DNx2 22x2 with electric motor Electric motor DAZO4-450Y-10MT2 250 Power kW 600 Vol./Min, carbon steel.

Application of DNx2 22x2 w/motor DAZO 250kW 600 rpm smoke exhausters

DNx2 type smoke exhausters are designed to remove flue gases from the furnaces of:

boilers equipped with effective ash collection systems;
gas-oil fired boilers.

The equipment is suitable for continuous operation both indoors and outdoors (temperate climate).

Operational limits:

Max inlet gas temperature: +200 °C.
Min casing (scroll) temperature: -30 °C.
Permissible gas dust content: up to 2 g/m³.

Features of DNx2 22x2 exhausters

Suction type: double inlet.
Casing: spiral, rotatable.
Impeller: backward-curved blades (16 pcs).
Rotation direction: right or left (optional).

Areas of application for DNx2 22x2:

Thermal power engineering.
Boiler plants (gas-oil, steam, and hot water boilers).
Sanitary and industrial purposes.

Specifications

Common

Model

DNx2 22x2

Motor type

DAZO

Productivity, м³/h

229800

Pressure, Pa

2110

Max. transported air temperature, °C

200

Weight, kg

21420

Min. transported air temperature, °C

-30

Electric motor DAZO4-450Y-10MT2

Common

Model

DAZO4-450Y-10MT2

Motor type

asynchronous

Motor series

DAZO4

Shaft diameter, mm

110

Voltage, V

6000

Frequency of the current, Hz

Power kW

250

Vol./Min

600

Climatic performance

Т2

Class of protection, IP

Efficiency, %

92,5

Power factor, cosφ

0,8

Weight, kg

3100

172

6000

Consumed nominal current, In (A)

32,5

Cooling capacity, kW

ICА01A61

Design scheme

prolonged S1

Dimension (height of rotation axis), mm

450

Installation design

IM1001

Phase

3-phase

The ratio of max. torque to rated power, Mmax/Mn

2,3

The ratio of starting current to the nominal, Istart/In

6,0

The ratio of starting torque to rated power, Mstart/Mn

1,3

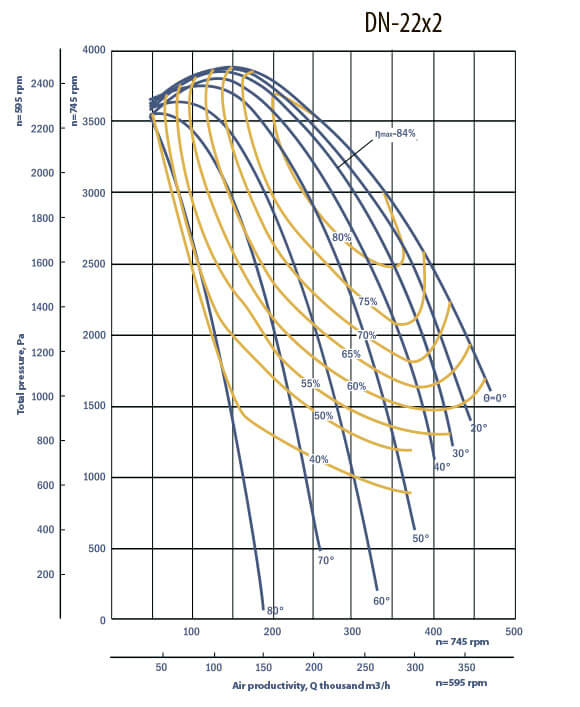

Aerodynamic characteristics of DNx2 22x2 w/motor DAZO 250kW 600 rpm

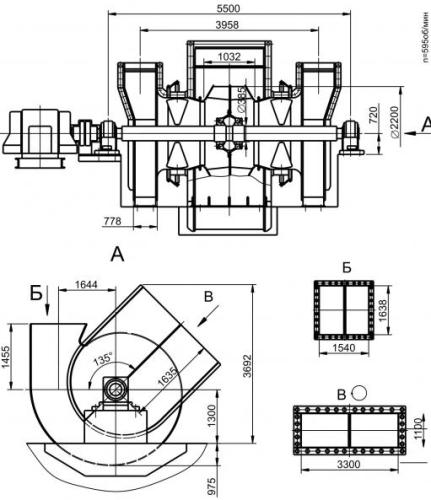

Overall dimensions of the fan DNx2 22x2 w/motor DAZO 250kW 600 rpm
