Cyclone dust collector with a hopper P-CM-800U

Name: P-CM-800U
Brand: КВЗ
Price: 156957 UAH
Availability: InStock

Brand: КВЗ

All about product

Description

Specification

Reviews 0

Popular

In Stock

Product Code: ID23703

156 957₴

Found cheaper?

P - CM - 800 - U

P – pedestal for equipment installation;
C – cyclone with reverse cone, universal type;
M – modified, high-efficiency;
800 – diameter of the cylindrical part of the cyclone;
U – chamber for cleaned gas in the shape of a snail (“scroll”);

Productivity, м³/h:6000-9000

Pressure, Pa:2000

Diameter, mm:800

Delivery

Nova Poshta

Delivery (saving 10% of the delivery cost)

SAT

Self-delivery

Оплата

Payment Methods

We operate via bank transfer, ensuring full transparency and official documentation for every transaction.

How to Pay

Immediately after placing an order, a KVZ manager will send you a proforma invoice.

For legal entities and Individual Entrepreneurs: from your company's current account.

For individuals: via any banking application using bank details (IBAN).

Individual Terms

We value our partners and are ready to discuss personal payment options for cases requiring a special approach. Contact us to find the best solution.

CM-1000U 170 771₴
CM-500U 50 050₴
CM-600U 68 869₴
CM-800U 116 116₴
K-CM-500U 60 060₴
K-CM-600U 80 080₴
P-CM-1000U 217 417₴
P-CM-500U 81 481₴
P-CM-600U 102 903₴

Каталог

P-CM-800U

156 957₴

Description

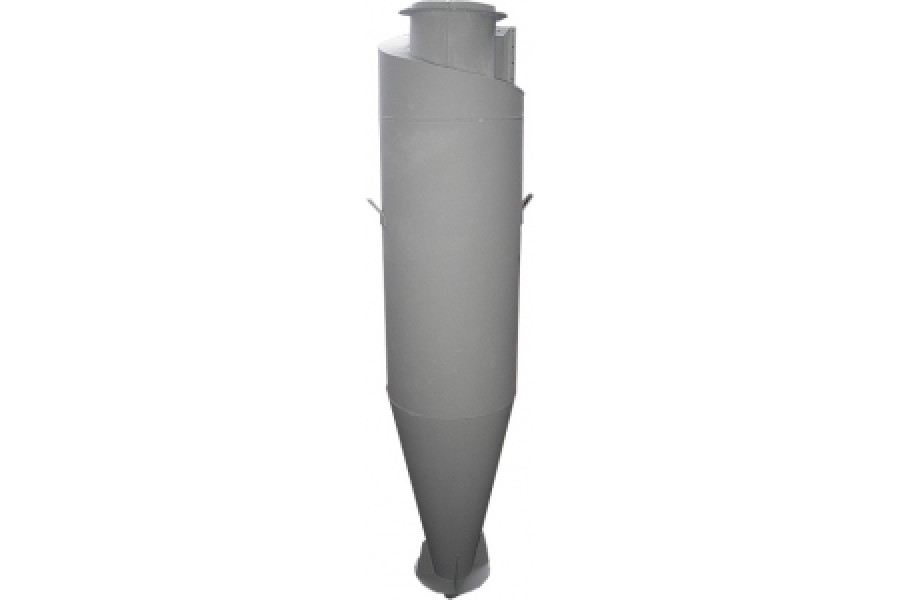

Cyclone P-CM-800U – efficient dust collector for industrial systems
Cyclone P-CM-800U is a modern device for air purification from various types of dust. It is based on reverse-cone cyclones (COK) but features an improved design that ensures higher efficiency, durability, and cost-effectiveness compared to previous models.

General information about cyclone P-CM-800U
The unit has a wider application range, higher purification degree, and stable operation even under harsh conditions. Unlike CN-15, CN-11, Sioty, OEKDM, and UC models, this dust collector is more economical, making it beneficial for industrial enterprises.

Application areas of cyclone P-CM-800U
Main purpose – industrial ventilation. The unit is most suitable in the following cases:

air cleaning from granular and fibrous dust;
dust collection in the chemical industry;
operation at plastics processing plants;
air cleaning from sticky and abrasive dust.

Thanks to the moderate flow speed, the housing walls do not wear out even when in contact with highly abrasive substances.
Advantages of cyclone P-CM-800U

Versatility: works with dust of any shape, density, and size;
High efficiency: applicable in single- and multi-stage systems;
Reliability: optimal flow speed minimizes wall wear;
Innovative design: deflector cone promotes self-cleaning from dust deposits;
Convenience: easy maintenance and cleaning through special hatches.

Important: not recommended for cement dust and substances that adhere to the housing walls.

Installation of cyclone P-CM-800U
Three installation options are possible:

with a hopper and rotary feeder – purification efficiency 96–98%;
directly on the dust collector – for heavy coarse dust;
in a multi-stage system – as the first purification stage.

Operating principle of cyclone P-CM-800U
The operation is based on centrifugal force:

dust-laden gases swirl into a vortex;
dust settles on the housing walls;
purified air exits through the central opening;
dust accumulates in the hopper.

Design features of cyclone P-CM-800U

cylindrical and conical housing parts reduce wear;
deflector cone with cross insert prevents dust carryover;
negative wall angle eliminates dust hang-up;
resistant to air leakage through hopper gaps.

Technical characteristics of cyclone P-CM-800U

Inlet air velocity: 11.7 – 19.2 m/s;
Hydraulic resistance coefficient ξ = 6.1;
Maximum dust concentration at inlet: 0.8 × 10⁻³ kg/m³;
Fractional dust collection efficiency:
δ50 = 2.5 – 63.0 µm – 68.5%;
δ50 = 63.0 – 100.0 µm – 80.6%;
δ50 = 100.0 – 160.0 µm – 88.9%;
δ50 = 160.0 – 400.0 µm – 94.3%;
δ50 = 400.0 – 630.0 µm – 96.3%;
δ50 = 630.0 – 1000.0 µm – 99.9%.

Conclusion
Cyclone P-CM-800U is a reliable and durable unit that combines high efficiency, ease of operation, and cost-effectiveness. It is an optimal solution for air purification from various types of dust in industrial environments.

Specifications

Common

Model

P-CM-800U

Productivity, м³/h

6000-9000

Pressure, Pa

2000

Max. transported air temperature, °C

150

Weight, kg

540

Height, mm

6880

Acceptable levels of dust inlet, mg/m3

250000

Air flow speed, m/s

Diameter, mm

800

Type of air purification

98-99
