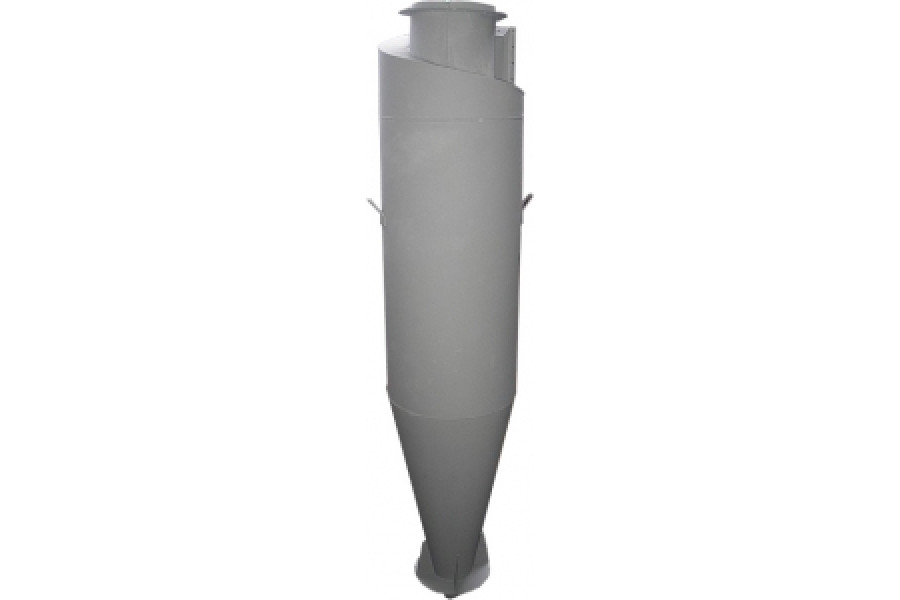

P-CM-500U

Name: P-CM-500U
Brand: КВЗ
Price: 81481 UAH
Availability: InStock

Cyclone dust collector with a hopper

Brand: КВЗ

All about product

Description

Specification

Reviews 0

Questions0

Popular

In Stock

Product Code: ID23701

81 481₴

Found cheaper?

P - CM - 500 - U

P – pedestal for equipment installation;
C – cyclone with reverse cone, universal type;
M – modified, high-efficiency;
500 – diameter of the cylindrical part of the cyclone;
U – chamber for cleaned gas in the shape of a snail (“scroll”);

Productivity, м³/h:2200-3500

Pressure, Pa:2000

Diameter, mm:500

Delivery

Nova Poshta

Delivery (saving 10% of the delivery cost)

Self-delivery

P-CM-500U

81 481₴

Description

Cyclone P-CM-500U – efficient dust collector for industrial systems
Cyclone P-CM-500U is a modern device for air purification from various types of dust. It is based on reverse-cone cyclones (COK) but features an improved design that ensures higher efficiency, durability, and cost-effectiveness compared to previous models.

General information about cyclone P-CM-500U
The unit has a wider application range, higher purification degree, and stable operation even under harsh conditions. Unlike CN-15, CN-11, Sioty, OEKDM, and UC models, this dust collector is more economical, making it beneficial for industrial enterprises.

Application areas of cyclone P-CM-500U
Main purpose – industrial ventilation. The unit is most suitable in the following cases:

air cleaning from granular and fibrous dust;
dust collection in the chemical industry;
operation at plastics processing plants;
air cleaning from sticky and abrasive dust.

Thanks to the moderate flow speed, the housing walls do not wear out even when in contact with highly abrasive substances.
Advantages of cyclone P-CM-500U

Versatility: works with dust of any shape, density, and size;
High efficiency: applicable in single- and multi-stage systems;
Reliability: optimal flow speed minimizes wall wear;
Innovative design: deflector cone promotes self-cleaning from dust deposits;
Convenience: easy maintenance and cleaning through special hatches.

Important: not recommended for cement dust and substances that adhere to the housing walls.

Installation of cyclone P-CM-500U
Three installation options are possible:

with a hopper and rotary feeder – purification efficiency 96–98%;
directly on the dust collector – for heavy coarse dust;
in a multi-stage system – as the first purification stage.

Operating principle of cyclone P-CM-500U
The operation is based on centrifugal force:

dust-laden gases swirl into a vortex;
dust settles on the housing walls;
purified air exits through the central opening;
dust accumulates in the hopper.

Design features of cyclone P-CM-500U

cylindrical and conical housing parts reduce wear;
deflector cone with cross insert prevents dust carryover;
negative wall angle eliminates dust hang-up;
resistant to air leakage through hopper gaps.

Technical characteristics of cyclone P-CM-500U

Inlet air velocity: 11.7 – 19.2 m/s;
Hydraulic resistance coefficient ξ = 6.1;
Maximum dust concentration at inlet: 0.8 × 10⁻³ kg/m³;
Fractional dust collection efficiency:
δ50 = 2.5 – 63.0 µm – 68.5%;
δ50 = 63.0 – 100.0 µm – 80.6%;
δ50 = 100.0 – 160.0 µm – 88.9%;
δ50 = 160.0 – 400.0 µm – 94.3%;
δ50 = 400.0 – 630.0 µm – 96.3%;
δ50 = 630.0 – 1000.0 µm – 99.9%.

Conclusion
Cyclone P-CM-500U is a reliable and durable unit that combines high efficiency, ease of operation, and cost-effectiveness. It is an optimal solution for air purification from various types of dust in industrial environments.

Specifications

Common

Model

P-CM-500U

Productivity, м³/h

2200-3500

Pressure, Pa

2000

Max. transported air temperature, °C

150

Weight, kg

295

Height, mm

4550

Acceptable levels of dust inlet, mg/m3

250000

Air flow speed, m/s

Diameter, mm

500

Type of air purification

98-99
