K-CM-500U

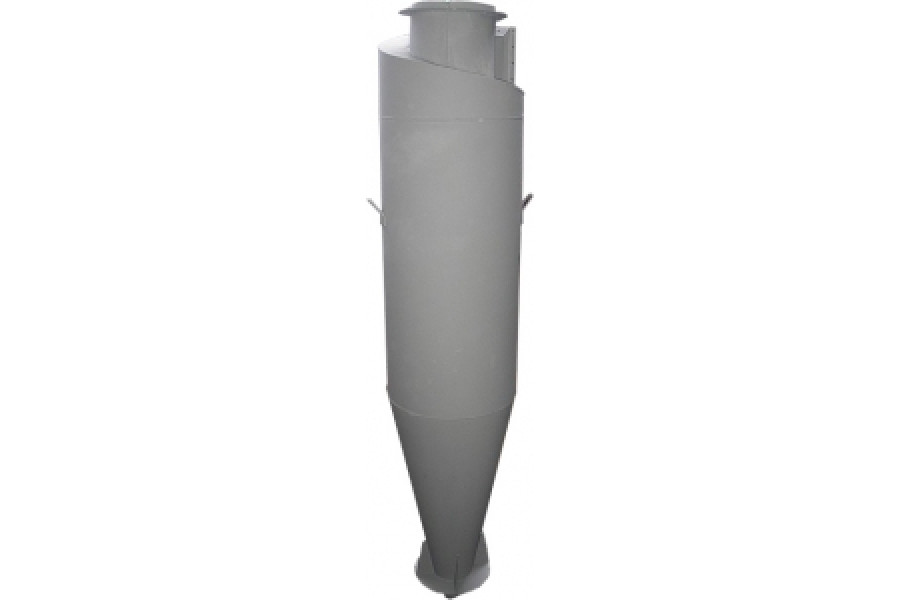

Cyclone dust collector with a hopper

Brand: КВЗ
0
All about product
Description
Specification
Reviews 0
Questions0
Popular
K-CM-500U
K-CM-500U
K-CM-500U
K-CM-500U
K-CM-500U
K-CM-500U
K-CM-500U
K-CM-500U
K-CM-500U
K-CM-500U
K-CM-500U
K-CM-500U
K-CM-500U
K-CM-500U
K-CM-500U
K-CM-500U
K-CM-500U
K-CM-500U
K-CM-500U
K-CM-500U
K-CM-500U
K-CM-500U
K-CM-500U
K-CM-500U
K-CM-500U
K-CM-500U
K-CM-500U
K-CM-500U

In Stock
Product Code: ID23699
60 060₴
Found cheaper?

K - CM - 500 - U
  • K – kmounting bracket;
  • C – cyclone with reverse cone, universal type;
  • M – modified, high-efficiency;
  • 500 – diameter of the cylindrical part of the cyclone;
  • U – chamber for cleaned gas in the shape of a snail (“scroll”);

Productivity, м³/h:2200-3500
Pressure, Pa:2000
Diameter, mm:500
Whatsapp
Telegram
Viber
Messenger
+38 (044) 238-24-81
+38 (066) 700-01-48
Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
K-CM-500U
60 060₴
Description

Cyclone K-CM-500U – efficient dust collector for industrial systems
Cyclone K-CM-500U is a modern device for air purification from various types of dust. It is based on reverse-cone cyclones (COK) but features an improved design that ensures higher efficiency, durability, and cost-effectiveness compared to previous models.

General information about cyclone K-CM-500U
The unit has a wider application range, higher purification degree, and stable operation even under harsh conditions. Unlike CN-15, CN-11, Sioty, OEKDM, and UC models, this dust collector is more economical, making it beneficial for industrial enterprises.

Application areas of cyclone K-CM-500U
Main purpose – industrial ventilation. The unit is most suitable in the following cases:

  • air cleaning from granular and fibrous dust;
  • dust collection in the chemical industry;
  • operation at plastics processing plants;
  • air cleaning from sticky and abrasive dust.

Thanks to the moderate flow speed, the housing walls do not wear out even when in contact with highly abrasive substances.
Advantages of cyclone K-CM-500U

  • Versatility: works with dust of any shape, density, and size;
  • High efficiency: applicable in single- and multi-stage systems;
  • Reliability: optimal flow speed minimizes wall wear;
  • Innovative design: deflector cone promotes self-cleaning from dust deposits;
  • Convenience: easy maintenance and cleaning through special hatches.

Important: not recommended for cement dust and substances that adhere to the housing walls.

Installation of cyclone K-CM-500U
Three installation options are possible:

  • with a hopper and rotary feeder – purification efficiency 96–98%;
  • directly on the dust collector – for heavy coarse dust;
  • in a multi-stage system – as the first purification stage.

Operating principle of cyclone K-CM-500U
The operation is based on centrifugal force:

  • dust-laden gases swirl into a vortex;
  • dust settles on the housing walls;
  • purified air exits through the central opening;
  • dust accumulates in the hopper.

Design features of cyclone K-CM-500U

  • cylindrical and conical housing parts reduce wear;
  • deflector cone with cross insert prevents dust carryover;
  • negative wall angle eliminates dust hang-up;
  • resistant to air leakage through hopper gaps.

Technical characteristics of cyclone K-CM-500U

  • Inlet air velocity: 11.7 – 19.2 m/s;
  • Hydraulic resistance coefficient ξ = 6.1;
  • Maximum dust concentration at inlet: 0.8 × 10⁻³ kg/m³;
  • Fractional dust collection efficiency:
  • δ50 = 2.5 – 63.0 µm – 68.5%;
  • δ50 = 63.0 – 100.0 µm – 80.6%;
  • δ50 = 100.0 – 160.0 µm – 88.9%;
  • δ50 = 160.0 – 400.0 µm – 94.3%;
  • δ50 = 400.0 – 630.0 µm – 96.3%;
  • δ50 = 630.0 – 1000.0 µm – 99.9%.

Conclusion
Cyclone K-CM-500U is a reliable and durable unit that combines high efficiency, ease of operation, and cost-effectiveness. It is an optimal solution for air purification from various types of dust in industrial environments.

Specifications
Common
Model
K-CM-500U
Productivity, м³/h
2200-3500
Pressure, Pa
2000
Max. transported air temperature, °C
150
Weight, kg
186
Height, mm
4170
10
Acceptable levels of dust inlet, mg/m3
250000
Air flow speed, m/s
4
Diameter, mm
500
Type of air purification
98-99
