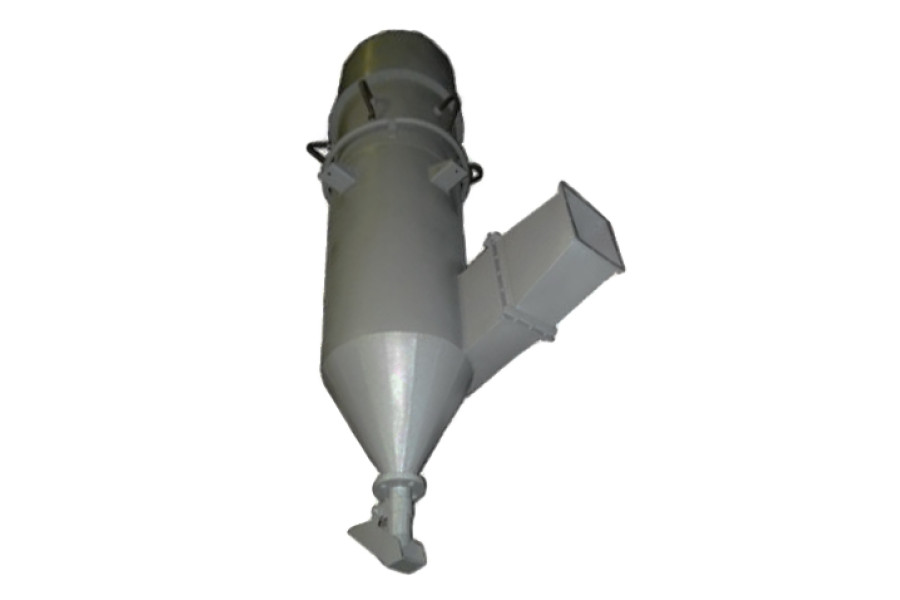

CVP-6

Cyclone dust collector

Brand: КВЗ
0
All about product
Description
Specification
Reviews 0
Questions0
Popular
CVP-6
CVP-6
CVP-6
CVP-6
CVP-6
CVP-6
CVP-6
CVP-6
CVP-6
CVP-6
CVP-6
CVP-6

In Stock
Product Code: ID28620
47 447₴
Found cheaper?

CVP - 6
  • CVP – cyclones with a water film.
  • 6 – cyclone size type.

Productivity, м³/h:4900-7800
Pressure, Pa:9000
Diameter, mm:630
Whatsapp
Telegram
Viber
Messenger
+38 (044) 238-24-81
+38 (066) 700-01-48
Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
CVP-6
47 447₴
Description

Purpose of cyclones CVP-6
CVP-6 cyclones with a water film are designed for cleaning dusty air removed by ventilation systems. They are effective when handling non-cementing dust, including dust generated during processing and transportation of sand, clay, coal, limestone, abrasives, ores, as well as moist, sticky, and fibrous dust.

CVP-6 cyclones can be used as the only stage of air cleaning at dust concentrations up to 10 g/m³. For higher concentrations, they are recommended as a secondary filtration stage.

The equipment is usually installed indoors. For outdoor installation, it is necessary to prevent freezing of water in the tank, supply system, collector, flushing device, and sludge discharge cone.

Design of cyclones CVP-6
The CVP-6 cyclone includes:

  • a body with an air inlet pipe;
  • an air outlet scroll attached to the top flange of the body;
  • an adjustable air outlet pipe with fixed rotation angles;
  • a sludge discharge cone with a hydraulic seal, attached to the bottom of the body;
  • spraying of the inner surface with water under 0.02–0.025 MPa pressure through a nozzle connected to a ring manifold;
  • a hatch with a glazed cover for monitoring nozzle operation;
  • a flushing device in the air inlet pipe for removing deposits in the entry zone.
Specifications
Common
Model
CVP-6
Productivity, м³/h
4900-7800
Pressure, Pa
9000
Max. transported air temperature, °C
200
Weight, kg
237
Height, mm
4554
Diameter, mm
630
Pipe size, mm
226х396
