The BRK expansion chambers are designed to reduce the pressure of a shock wave, which has passed through the explosion-proof protective section, to a safe level. They are used when air ducts are connected from the side.

Delivery

Nova Poshta

Delivery (saving 10% of the delivery cost)

Self-delivery

BRK expansion chamber

Description

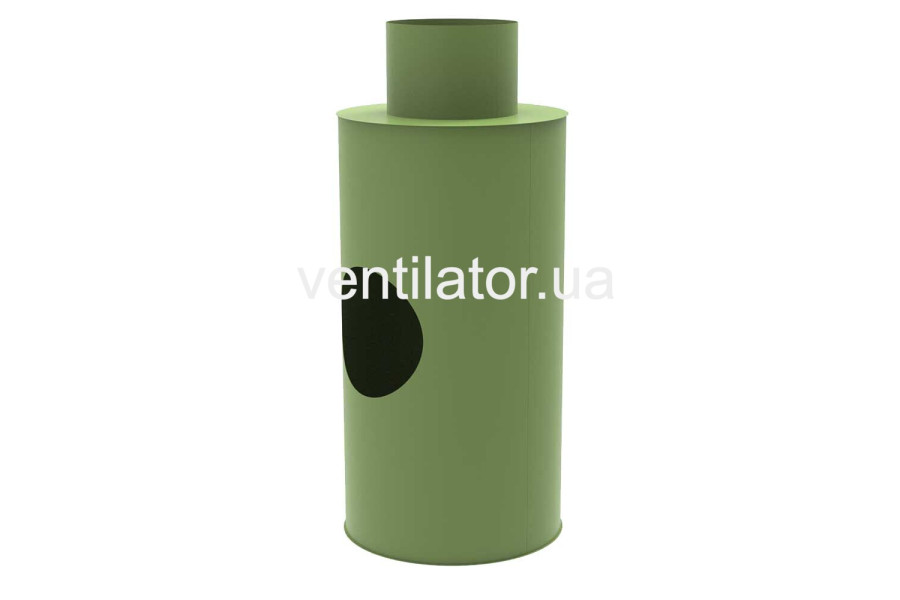

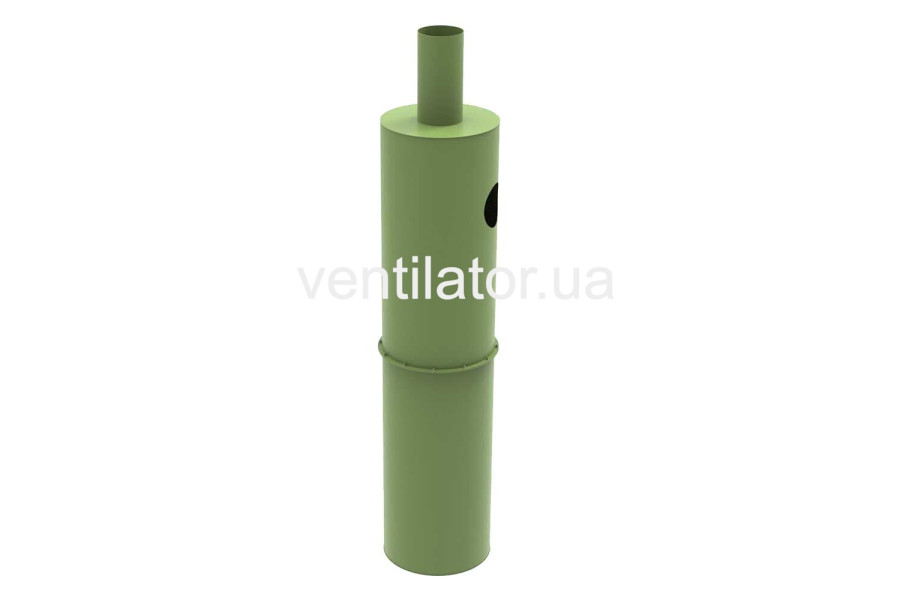

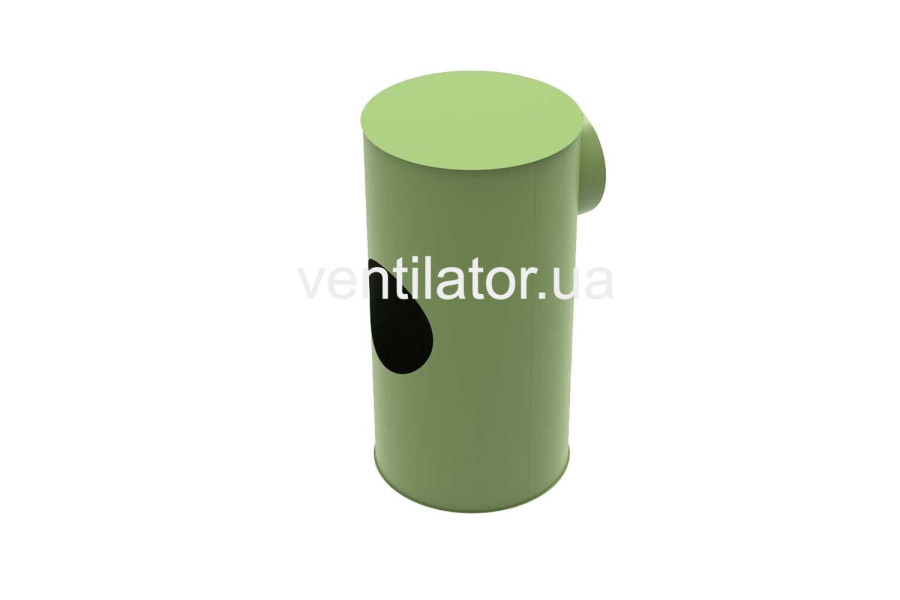

Expansion Chambers BRK
The BRK expansion chambers are designed to reduce the pressure of a shock wave, which has passed through the explosion-proof protective section, to a safe level. They are used when air ducts are connected from the side. The chambers are installed in the direction of the blast wave behind explosion-proof protective sections. Installation is carried out by welding the body to plates embedded in the floor along the circumference of the base.

Technical Specifications of BRK Expansion Chambers

Model	Overall dimensions, mm (W × H)	Nominal volume, m³	Design load, kg/m²	Weight, kg, max
BRK-0.5	570 × 2830	0.5	0.2	190
BRK-1A	1100 × 2100	2	0.2	220
BRK-1B	1100 × 2650	2	0.72	237

Design Features

Durable steel body designed for high loads.
Optimized shape for effective pressure reduction.
Installation directly after the explosion-proof section.
Reliable welded attachment to the base.

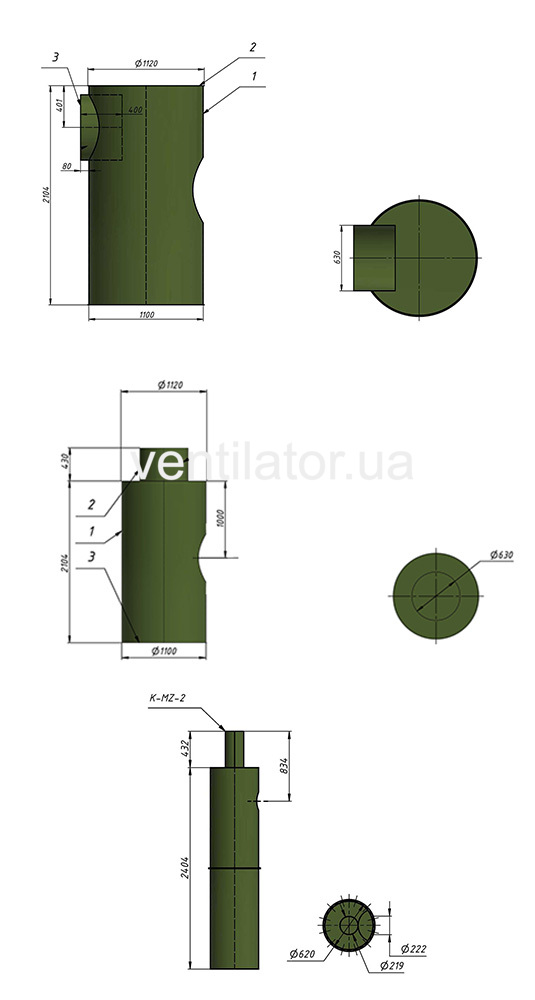

Overall dimensions of BRK expansion chamber
