AVD-3.5M w/motor AIR 132 M2 11 kW 3000 rpm, execution 5

Centrifugal fan high pressure

Brand: КВЗ
0
All about product
Description
Specification
Aerodynamic Characteristics
Dimensions
Reviews 0
Questions0
Popular
AVD-3.5M w/motor AIR 132 M2 11 kW 3000 rpm, execution 5
AVD-3.5M w/motor AIR 132 M2 11 kW 3000 rpm, execution 5
AVD-3.5M w/motor AIR 132 M2 11 kW 3000 rpm, execution 5
AVD-3.5M w/motor AIR 132 M2 11 kW 3000 rpm, execution 5
AVD-3.5M w/motor AIR 132 M2 11 kW 3000 rpm, execution 5
AVD-3.5M w/motor AIR 132 M2 11 kW 3000 rpm, execution 5
AVD-3.5M w/motor AIR 132 M2 11 kW 3000 rpm, execution 5
AVD-3.5M w/motor AIR 132 M2 11 kW 3000 rpm, execution 5
AVD-3.5M w/motor AIR 132 M2 11 kW 3000 rpm, execution 5
AVD-3.5M w/motor AIR 132 M2 11 kW 3000 rpm, execution 5
AVD-3.5M w/motor AIR 132 M2 11 kW 3000 rpm, execution 5
AVD-3.5M w/motor AIR 132 M2 11 kW 3000 rpm, execution 5
AVD-3.5M w/motor AIR 132 M2 11 kW 3000 rpm, execution 5
AVD-3.5M w/motor AIR 132 M2 11 kW 3000 rpm, execution 5
AVD-3.5M w/motor AIR 132 M2 11 kW 3000 rpm, execution 5
AVD-3.5M w/motor AIR 132 M2 11 kW 3000 rpm, execution 5
AVD-3.5M w/motor AIR 132 M2 11 kW 3000 rpm, execution 5
AVD-3.5M w/motor AIR 132 M2 11 kW 3000 rpm, execution 5
AVD-3.5M w/motor AIR 132 M2 11 kW 3000 rpm, execution 5
AVD-3.5M w/motor AIR 132 M2 11 kW 3000 rpm, execution 5
In Stock
Product Code: ID16472
67 481₴
Found cheaper?

AVD-3.5M w/motor AIR 132 M2 11 kW 3000 rpm high-pressure centrifugal fan for general industrial applications, manufactured according to scheme No. 5 with a V-belt drive and made of carbon steel.

Productivity, м³/h:1900
Pressure, Pa:9450
Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
AVD-3.5M w/motor AIR 132 M2 11 kW 3000 rpm, execution 5
67 481₴
Description

Description of AVD-3.5M w/motor AIR 132 M2 11 kW 3000 rpm (VR 220-16.1)

Fans AVD-3,5M (VR 220-16.1) are designed for moving air and other non-explosive air-vapor-gas mixtures that do not cause accelerated corrosion of carbon steel, with dust and other solid impurities content not exceeding 100 mg/m3, and do not contain sticky substances or fibrous materials. Allowable fan vibration is up to 5 mm/s.

General information about AVD-3.5M w/motor AIR 132 M2 11 kW 3000 rpm (VR 220-16.1):

  • High pressure
  • Single-side suction
  • Spiral rotary housing
  • Forward-curved blades
  • Number of blades – 12
  • Direction of rotation – right
  • Design scheme – No. 5 (belt-driven design) – with the use of a belt drive (V-belts, driving and driven pulleys)

AVD-3.5M w/motor AIR 132 M2 11 kW 3000 rpm fans are manufactured from:

  • carbon steel
  • stainless steel
  • dissimilar metals

AVD-3.5M w/motor AIR 132 M2 11 kW 3000 rpm (VR 220-16.1) fans are used for:

  • supplying compressed atmospheric air to the liquid fuel combustion nozzle in grain dryers
  • in air conditioning and ventilation systems of industrial and public buildings
  • other industrial and sanitary engineering purposes
Position of the housing for right and left rotation
Specifications
Common
Model
AVD-3,5M
Motor type
AIR
Productivity, м³/h
1900
Pressure, Pa
9450
Pollution limits, mg/m3
100
Weight, kg
146
Engine power, W
11000
Min. transported air temperature, °C
80
Electric motor AIR 132 M2
Common
Model
AIR 132 M2
Motor type
asynchronous
Kind
general purpose industrial motor
Motor series
AIR
Shaft diameter, mm
38
Voltage, V
220/380
Frequency of the current, Hz
50
Power kW
11.0
Vol./Min
3000
n, vol./Min
2900
Climatic performance
UZ
Class of protection, IP
54
Efficiency, %
87,4
Power factor, cosφ
0,9
Weight, kg
83,0
Consumed nominal current, In (A)
21,8
Dimension (height of rotation axis), mm
132
Phase
3-phase
The ratio of max. torque to rated power, Mmax/Mn
2,3
The ratio of starting current to the nominal, Istart/In
7,2
The ratio of starting torque to rated power, Mstart/Mn
2,2

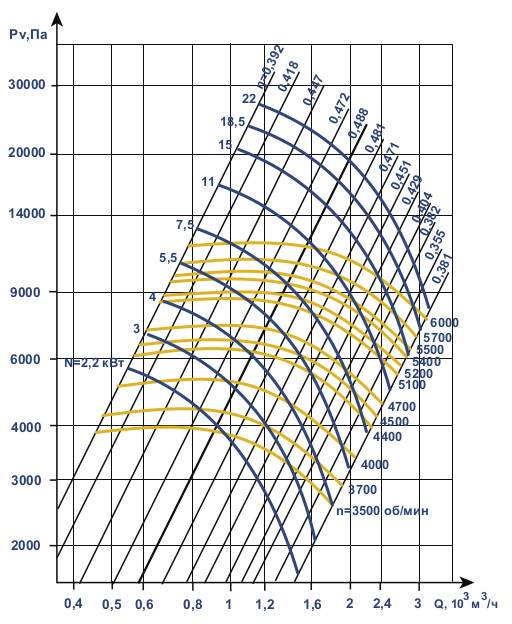

Aerodynamic characteristics of an industrial fan AVD-3.5M w/motor AIR 132 M2 11 kW 3000 rpm

Overall dimensions of the industrial fan AVD-3.5M w/motor AIR 132 M2 11 kW 3000 rpm
