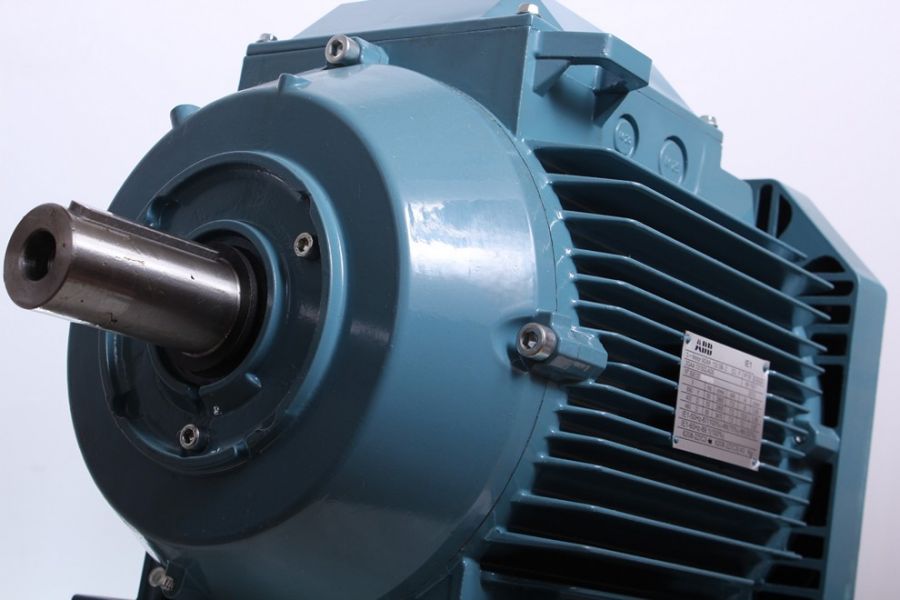

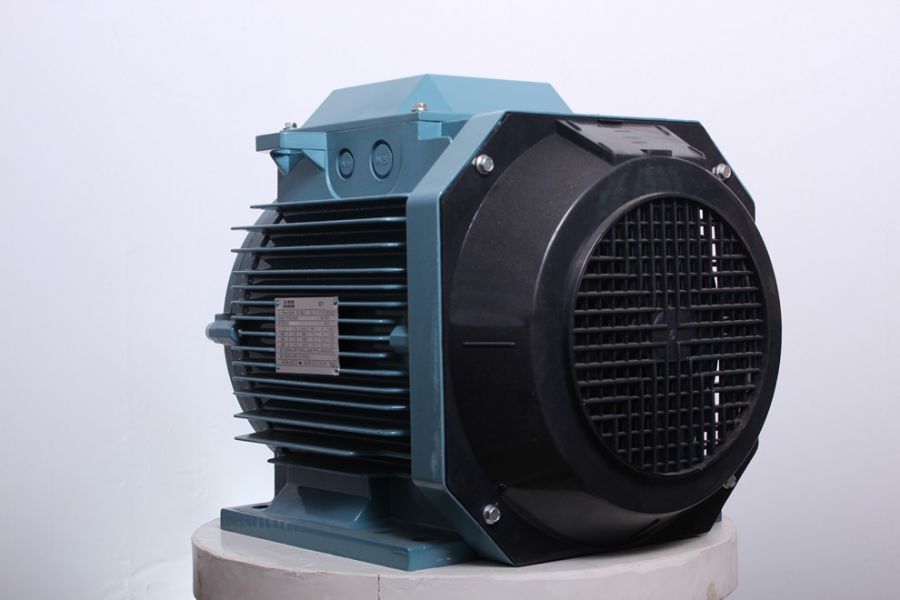

Electric motor ABB M2AA 160 MLA4

Name: Electric motor ABB M2AA 160 MLA4
Brand: ABB
Price: 35563 UAH
Availability: OutOfStock

Three-phase asynchronous electric motor

Brand: ABB

All about product

Specification

Reviews 0

Questions0

Popular

Out of stock

Product Code: ID19154

35 563₴

Voltage, V:380

Power kW:11.0

Vol./Min:1500

Delivery

Nova Poshta

Delivery (saving 10% of the delivery cost)

Self-delivery

Electric motor ABB M2AA 160 MLA4

35 563₴

Specifications

Common

Model

ABB M2AA 160 MLA4

Motor type

asynchronous

Kind

загального призначення

Motor series

M2AA

Shaft diameter, mm

Energy efficiency class

Voltage, V

380

Frequency of the current, Hz

Power kW

11.0

Vol./Min

1500

n, vol./Min

1459

Motor insulation class

Class of protection, IP

Housing material

Алюміній

Efficiency, %

88,2

Power factor, cosφ

0,81

Weight, kg

3GAA 162 041-••G

Consumed nominal current, In (A)

22,5

Dimension (height of rotation axis), mm

160

Noise level at 3m, dB(A)

Number of poles

Phase

3-фазний

Rod

SKF

The ratio of max. torque to rated power, Mmax/Mn

2,6

The ratio of starting current to the nominal, Istart/In

6,5

The ratio of starting torque to rated power, Mstart/Mn

2,3
