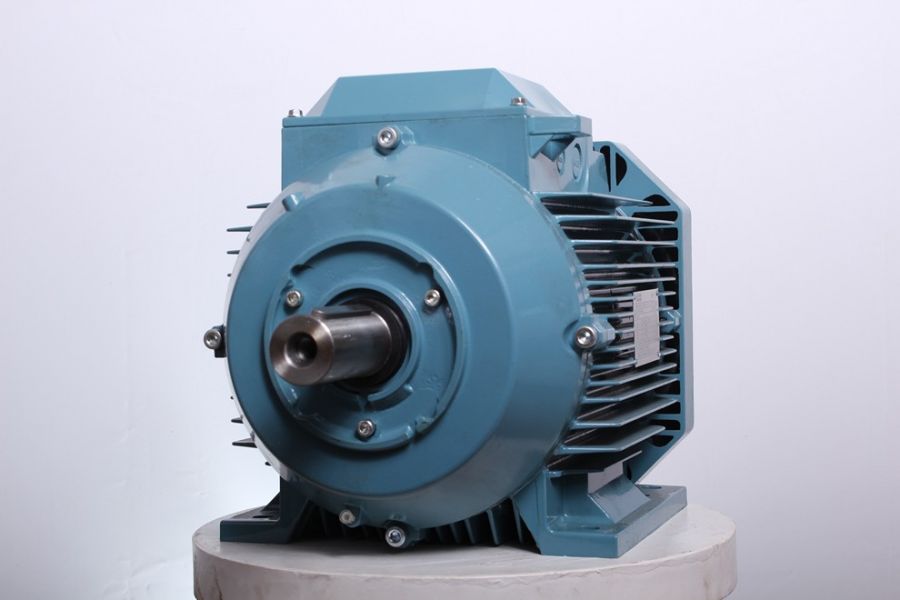

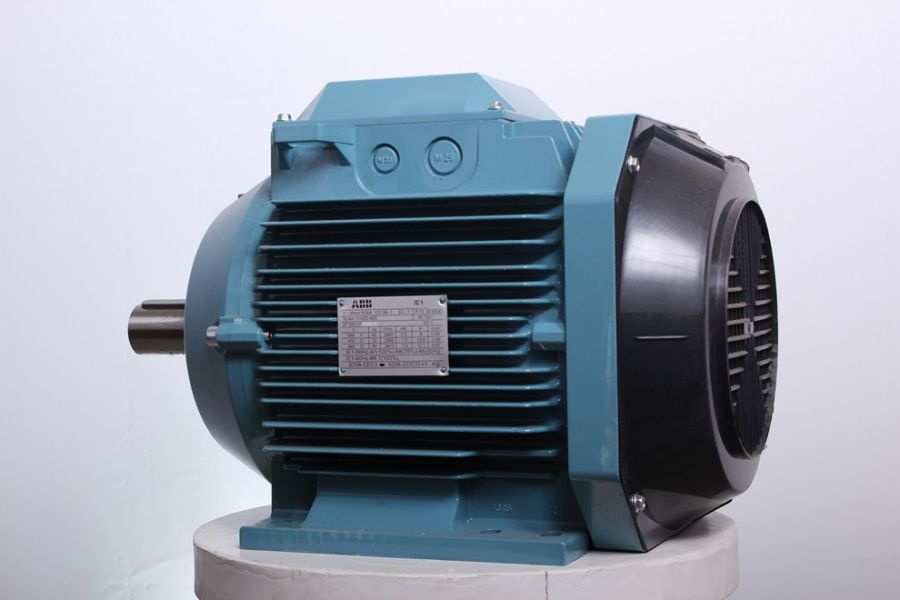

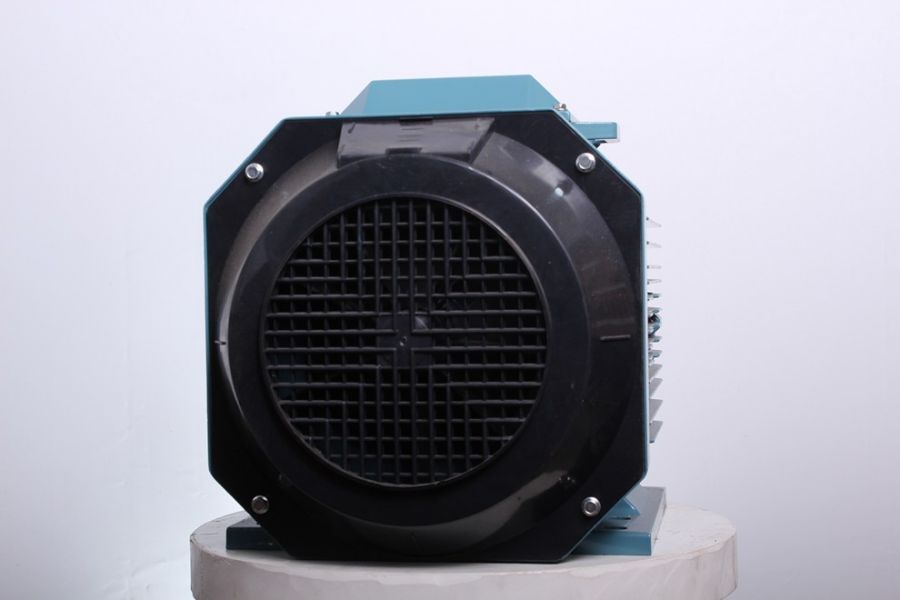

Electric motor ABB M2AA 132 SMA2

Three-phase asynchronous electric motor

Brand: ABB
0
All about product
Specification
Reviews 0
Questions0
Popular
Electric motor ABB M2AA 132 SMA2
Electric motor ABB M2AA 132 SMA2
Electric motor ABB M2AA 132 SMA2
Electric motor ABB M2AA 132 SMA2
Electric motor ABB M2AA 132 SMA2
Electric motor ABB M2AA 132 SMA2
Electric motor ABB M2AA 132 SMA2
Electric motor ABB M2AA 132 SMA2
On order
Product Code: ID19077
negotiable
Voltage, V:380
Power kW:11
Vol./Min:3000
Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
Electric motor ABB M2AA 132 SMA2
Specifications
Common
Model
ABB M2AA 132 SMA2
Motor type
asynchronous
Kind
загального призначення
Motor series
M2AA
Shaft diameter, mm
38
Energy efficiency class
IE1
Voltage, V
380
Frequency of the current, Hz
50
Power kW
11
Vol./Min
3000
n, vol./Min
2875
Motor insulation class
F
Class of protection, IP
55
Housing material
Алюміній
Efficiency, %
88,5
Power factor, cosφ
0,90
Weight, kg
63
3GAA 131 005-••E
Consumed nominal current, In (A)
19,9
Dimension (height of rotation axis), mm
132
Noise level at 3m, dB(A)
69
Number of poles
2
Phase
3-фазний
Rod
SKF
The ratio of max. torque to rated power, Mmax/Mn
3,4
The ratio of starting current to the nominal, Istart/In
8,1
The ratio of starting torque to rated power, Mstart/Mn
2,8
