Decoding of the abbreviation TSOL-XX
An additional advantage is the presence of an anti-suction conical device that stabilizes the pressure in the inlet pipe.
| Name | SKU | Pressure, Pa | Productivity, м³/h | Stock status | Price: | |
|---|---|---|---|---|---|---|
| COL-1 | ID23267 | 500 | 1000 | In stock |
19 019₴
|
|
| COL-1.5 | ID23274 | 500 | 1500 | In stock |
27 728₴
|
|
| COL-3 | ID23275 | 500 | 3000 | In stock |
31 031₴
|
|
| COL-4.5 | ID23276 | 500 | 4500 | In stock |
39 840₴
|
|
| COL-6 | ID23277 | 500 | 6000 | In stock |
51 251₴
|
|
| COL-9 | ID23278 | 500 | 9000 | In stock |
105 105₴
|
|
| COL-12 | ID23279 | 500 | 12000 | In stock |
134 134₴
|
|
| COL-15 | ID23280 | 500 | 15000 | In stock |
200 200₴
|
|
| COL-18 | ID23281 | 500 | 18000 | In stock |
252 252₴
|

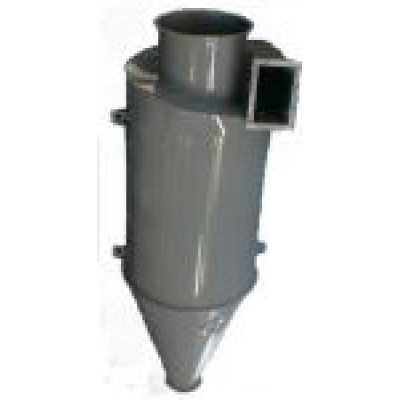

COOL cyclones — are highly efficient centrifugal dust collectors designed to clean dusty air at enterprises of various scales. They are widely used in pneumatic networks, aspiration systems, elevators, as well as in the woodworking, food and agricultural industries. Due to the action of centrifugal force, COOL cyclones effectively separate solid dust particles from the air flow.
Air coming from aspiration systems enters the cyclone body, where it is thrown back to the cyclone walls by inertia and swirling flow, and the cleaned air is discharged through a pipe. Grain dust, sawdust and other impurities accumulate in the hopper, from where they are easily removed during operation.
The COL cyclone demonstrates high efficiency in purifying air from dry solid particles. Due to the design features, where the air flow is swirled at high speed, dust particles are thrown to the walls and collected in the storage hopper. This allows achieving air filtration of up to 95% in the standard version according to GST.
Cyclones are made of durable materials, in particular, carbon steel, and can be adapted to the needs of a specific production. The performance of the installation depends on the type and amount of dust, but on average it provides stable operation with a large volume of air. All cyclone elements are designed for long-term operation in conditions of high dust content.
COOL cyclones have a simple design that simplifies maintenance and installation. Sealing of the units minimizes air leaks, which ensures stable operation without loss of productivity. Due to convenient access to the storage hopper, maintenance is reduced to periodic cleaning of collected dust.
The COOL cyclone can be installed both separately and as part of a ventilation system with connection to a fan. For effective supply of dusty air, an optimal inlet angle and internal geometry are provided. Thanks to this, the cyclones can operate with high efficiency even with significant air flow volumes.
You can buy a COOL cyclone at the best price from the manufacturer KVZ. The products meet modern requirements for air purification at enterprises. Delivery is available throughout Ukraine, including Kyiv and all regions.
