What are cyclones? And why should you buy a cyclone?
Cyclones are devices used to clean air or gases from solid particles. Thanks to centrifugal force, they effectively separate dust and other impurities from the air flow. Cyclones are mechanical filters and are often a key element in aspiration systems.
Cyclone principle

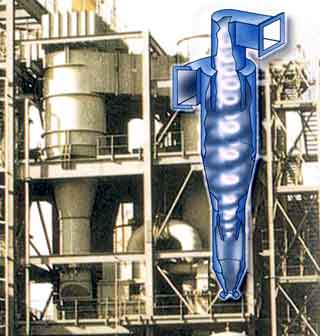

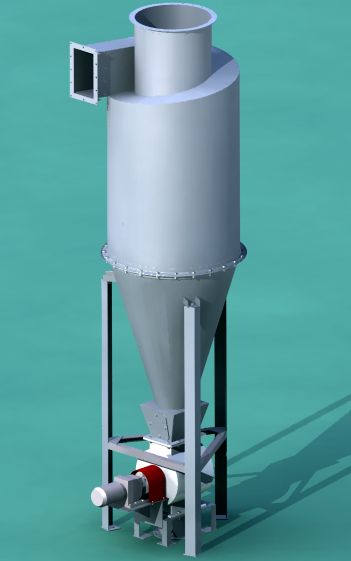

A cyclone consists of a cylindrical part and a conical compartment. Contaminated air enters the device housing tangentially, swirls, and under the influence of inertia and speed, solid particles are thrown back to the walls of the device housing. After that, they settle in the lower part of the cyclone, while the cleaned air exits through the central pipe.
Benefits of use and operation
Cyclones have a number of advantages that make them popular in industry:
-
High degree of purification - up to 98% when removing coarse dust.
-
Simplicity of centrifugal force design without moving parts.
-
Reliability and durability.
-
Unpretentiousness and efficiency in maintenance.
-
Resistance to high temperatures and aggressive environments.
-
Can be used in right or left-hand versions.
Main areas of application and cleaning efficiency at enterprises
Cyclones are used in many industries, including:
-
Metalworking, woodworking, grinding and welding.
-
Grain processing and food production.
-
Agriculture - for example, for cleaning air in granaries or when harvesting feed.
-
Construction - for filtering media from dust from cement, sand, lime, shavings, sawdust and other parameters.
-
Pneumatic transport systems for woodworking enterprises.
How to choose a cyclone?
When When choosing a cyclone, the following parameters should be taken into account:
-
Productivity by volume of purified air.
-
The diameter of the particles that need to be filtered into the hopper.
-
Operating conditions: temperature, humidity, chemical composition of the air.
-
Type of execution (right or left).
-
The presence of technical characteristics for production standards in pneumatic transport systems.
Common types are cyclones CN, SK-CN, SCCN, as well as universal cyclones that are suitable for most production tasks. For example, SCSN 40 cyclones are used in the grain industry, and CN 15 models are used in woodworking and metalworking.
Why should you buy a cyclone unit from us? Technical specifications:
The online store Ventilator.ua offers:
-
A wide selection of industrial cyclones of various types and classes of the unit.
-
Direct deliveries of cyclones from the manufacturer “Kyiv Ventilation Plant”.
-
Current models, including a universal cyclone or cyclones CR for processing pneumatic systems and air flow.
-
Manufacturer's prices - without intermediary markups.
-
Delivery throughout Ukraine, including Kyiv and the regions.
-
The possibility of individual selection taking into account the specifics of your production.
In our catalog you can buy cyclones at a favorable price at a price and with a quality guarantee.
To buy in Kyiv, choose a reliable air purification solution today. Contact our managers by phone 044 238-2481 or place an order online. We will provide fast delivery across Ukraine and professional advice on equipment selection.
Prices for cyclones (Ukraine)
| Name | Product code | Capacity, m³/h | Price, UAH incl. VAT |
|---|---|---|---|
| VUDOS-9 | id28614 | 1500 | 27 691 |
| VUDOS-10 | id28615 | 3150 | 31 511 |
| CN-15-1000x1 | id16769 | 7100-11300 | 78 078 |
| COL-9 | id23278 | 9000 | 105 105 |
| 4BCSh-550 | id24059 | 8100-10140 | 104 104 |
| COL-6 | id23277 | 6000 | 51 251 |
| 4BCSh-500 | id24056 | 6700-8350 | 90 490 |
| COL-12 | id23279 | 12000 | 134 134 |
| CRK-750 | id24042 | 1272-2544 | 34 535 |
| VUDOS-1 | id31414 | 3500 | Negotiable |
